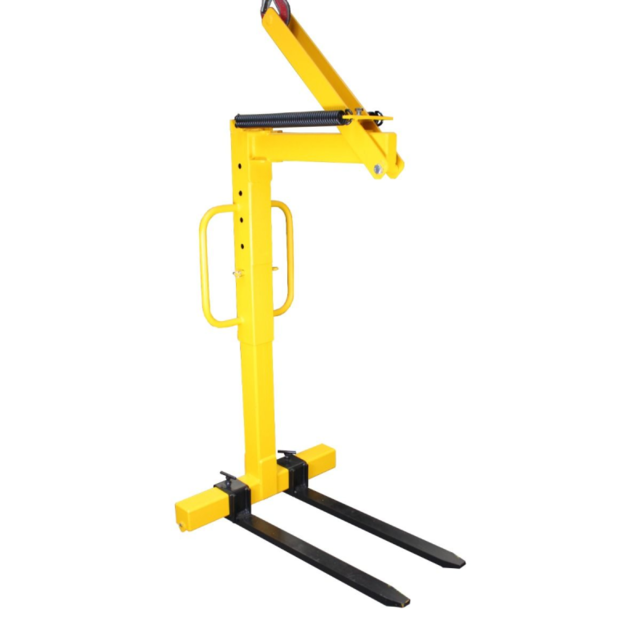

Self Balancing Pallet Hook for a Truck-Mounted Crane

Self Balancing Pallet Hook for a Truck-Mounted Crane

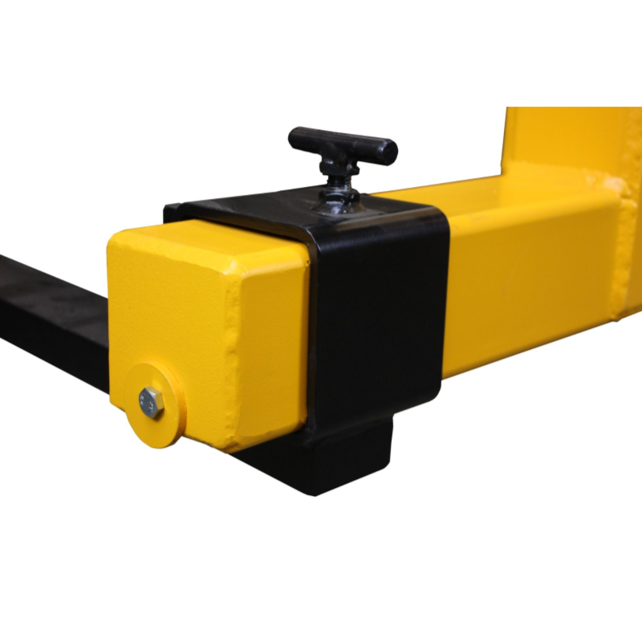

Forks Adjustable in width The forks are easy to move by turning the screws mounted on top of the fork holder.

This pallet hook is adjustable in height. The maximum useful height of the SBCFESB2 is 1700 mm, and of the SBCFESB30 is 1650 mm. The height is adjustable in steps of 125 mm. It is easily adjusted by removing the retaining clip and pin from the frame and raising or lowering the upper part of the frame to the desired height before reinstalling the pin and retaining clip.

 The balance control is automatic by means of springs. The balancing system needs a minimum load of 20% of the maximum working load of the pallet hook to balance correctly. When loaded, a pressurized spring activates the automatic balancing function.

• Adjustable forks Width : 400-1000mm

• Height = 1200-1700mm

• Load Capacity of 1500Kg, 2000Kg, 2,500 Kg and 3,000 kg

• Finish: Painted yellow

• Standard: NEN-EN 13155

With a safety factor of 4:1 and compliance with the latest standards and CE directive, you are assured of a safe and high-quality product.

Please note that the load must not exceed the fork length.
