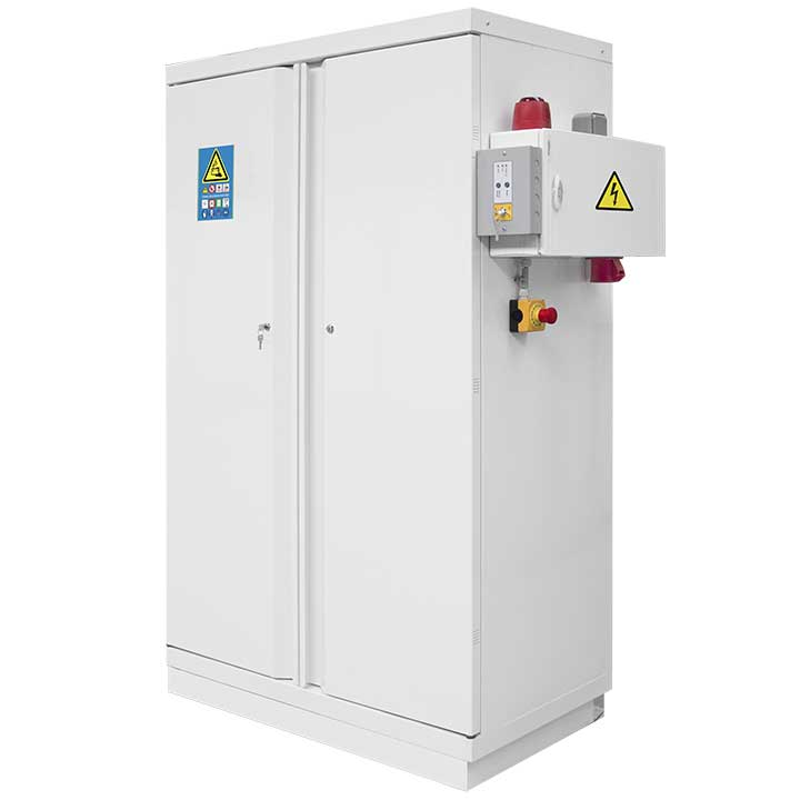

Lithium Battery Safety Cabinet 2 Door, 3 Phase, Pre-Equipped with Alarm, Extinguisher & Power Rack, Fire Resistance 90 Min, 1950x785x620 mm

2-Door Lithium Battery Safety Cabinet 1950x1287x620 mm – 90 Min Fire Resistance, Alarm, Extinguisher & Three-Phase Electricity Supply System

The two-door fire-resistant safety cabinet is specifically engineered for the safe charging and storage of lithium-ion batteries in industrial, laboratory, or maintenance environments.
Tested and approved for 90 minutes of fire resistance according to EN 14470-1 and EN 1363-1, with an EI180 fire-stop construction tested 105 minutes from outside to inside, ensuring maximum safety during fire exposure.

Manufactured in France under CSR standards and FM compliant, the cabinet provides secure storage, built-in fire suppression, and reliable electrical infrastructure for lithium battery management.

It comes pre-equipped with four E35LI perforated shelves, one automatic fire extinguisher (EX200LI), and a VIG290 system that includes a visual and audible alarm, control box, and automatic smoke detector.
An integrated three-phase electricity supply system allows safe charging operations through dedicated power outlets within the cabinet.

Features:

• Fire resistance: 90 minutes (EN 14470-1 / EN 1363-1)

• Inside-to-outside EI180 fire-stop structure

• Tested 105 minutes from outside to inside

• 2 self-closing swing doors with thermo-expanding seals

• Pre-equipped with VIG290 system (alarm, smoke detector, extinguisher EX200LI)

• 4 E35LI adjustable perforated shelves

• Three-phase electricity supply system (32A – 3P+T+N 6h 380/415 V)

• Top ventilation inlet and outlet (Ø 100 mm)

• Locking system for secure use

• Steel structure (12/10 thick) with RAL 9010 white finish

• Complies with FM, EN14470-1, and EN1363-1 standards
