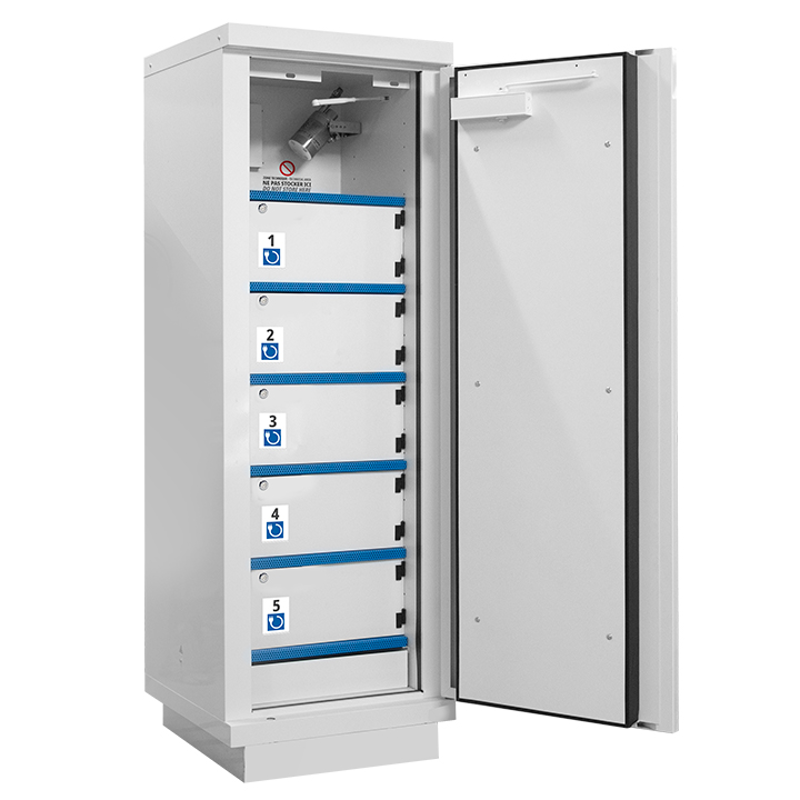

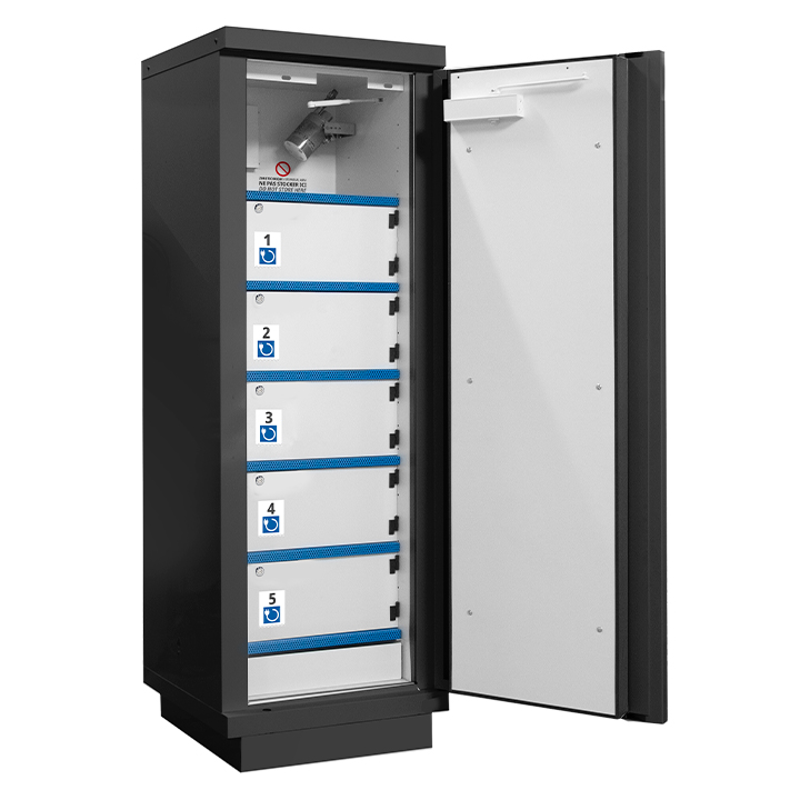

Lithium Battery Safety Cabinet 1 Door, 5 Compartments, Key Lock – Fire Resistance 90 Min, 1950x635x620 mm
Fire-resistant cabinet designed for the safe storage of lithium-ion batteries and flammable materials.
The single-door cabinet includes 5 lockable compartments with individual shelves, ensuring secure segregation and organization.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Lithium Battery Safety Cabinet – 1 Door | 5 Compartments
90-Min Fire Resistance | 1950 × 635 × 620 mm
Advanced Protection for Lithium-Ion Battery Storage
The Salesbridges Lithium Battery Safety Cabinet is engineered for the safe storage of lithium-ion batteries and flammable materials, reducing the risk of thermal runaway, fire, and explosion. With 90-minute certified fire resistance and an EI180 structure (105 minutes outside-to-inside protection), it delivers high-level safety for critical environments.
Designed with 5 individual lockable compartments, this cabinet ensures secure segregation, organized storage, and controlled access.
Key Features
- Fire resistance: 90 minutes (EN 14470-1 & EN 1363-1)
- EI180 structure: 105 minutes protection (outside to inside)

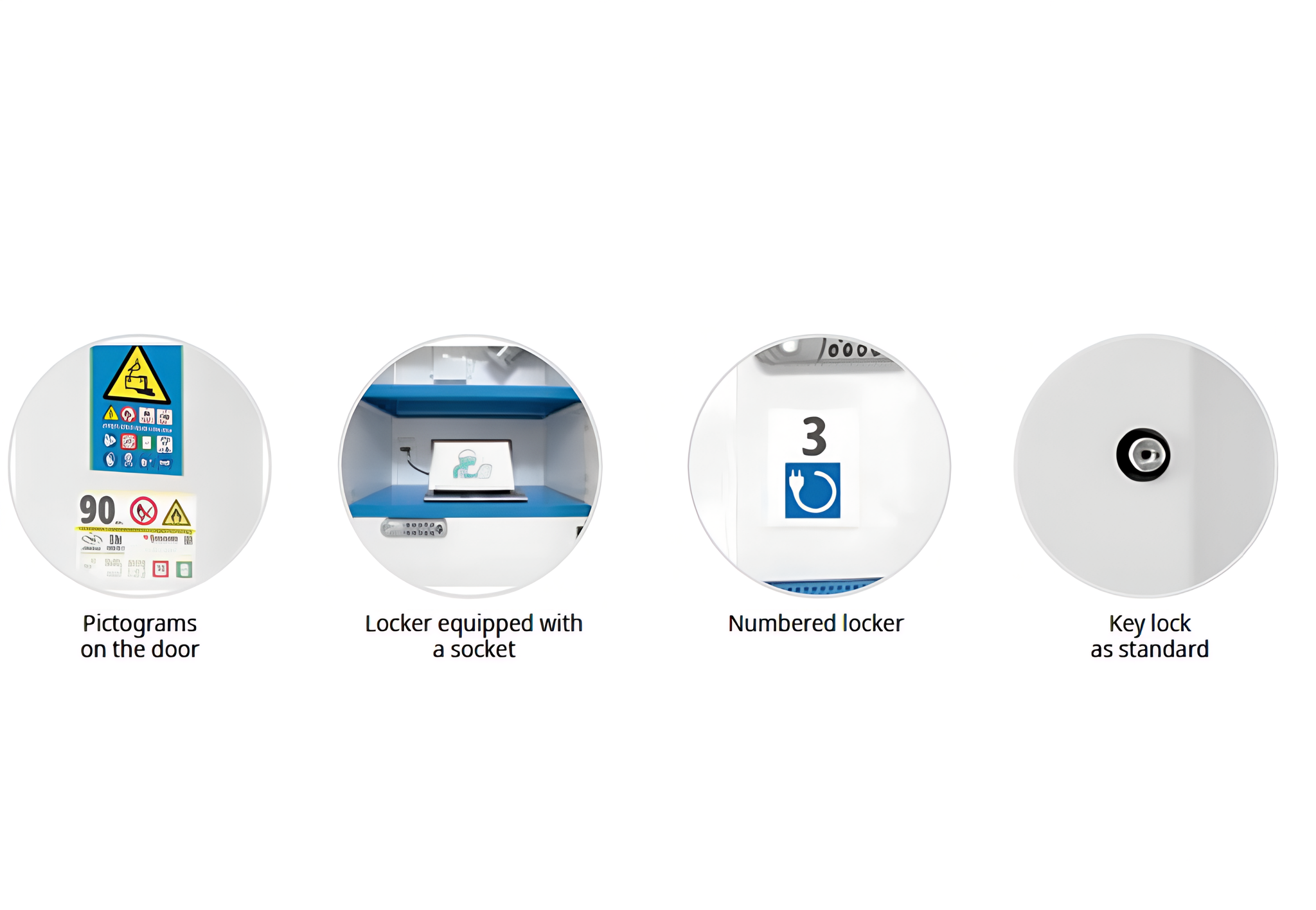

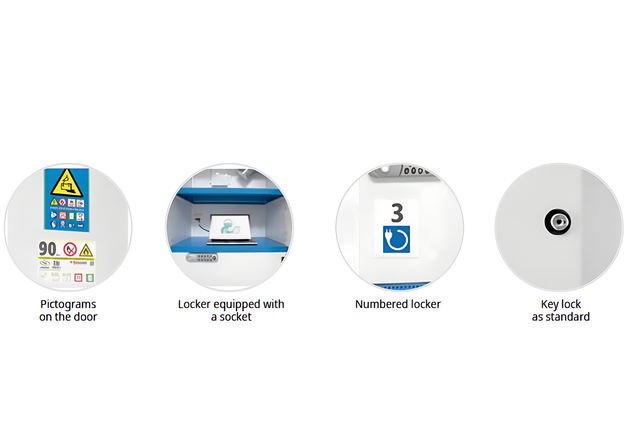

- 5 separate lockable compartments
- Self-closing single hinged door with key lock
- Automatic lithium fire extinguisher (79°C activation)
- Integrated containment sump (B148)
- Ventilation connection ports
- Grounding point for static discharge protection
- Robust steel construction with melamine insulation
- CE marked and EN certified
Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 1950 × 635 × 620 mm |
| Compartments | 5 (227 × 410 × 340 mm each) |
| Door | 1 hinged door, key lock |
| Fire Resistance | 90 minutes |
| Structure Rating | EI180 (105 min outside-to-inside) |
| Sump | 1 × B148 |
| Extinguisher | 1 × EX100LI (79°C automatic) |
| Weight | 309 kg |
Construction & Design
- Heavy-duty 12/10 steel body
- Melamine interior lining for thermal insulation
- Compartmentalized layout for safe battery segregation
- Designed for industrial and laboratory environments
Safety Features
- Automatic fire suppression system (EX100LI)
- Self-closing door mechanism
- Containment sump for leak control
- Ventilation ports for gas management
- Grounding connection to prevent static discharge
- Certified according to:
- EN 14470-1
- EN 1363-1
Functional Advantages
- Reduces fire and explosion risks
- Enables safe segregation of lithium batteries
- Improves compliance with safety regulations
- Organized multi-compartment storage
- Suitable for high-risk environments

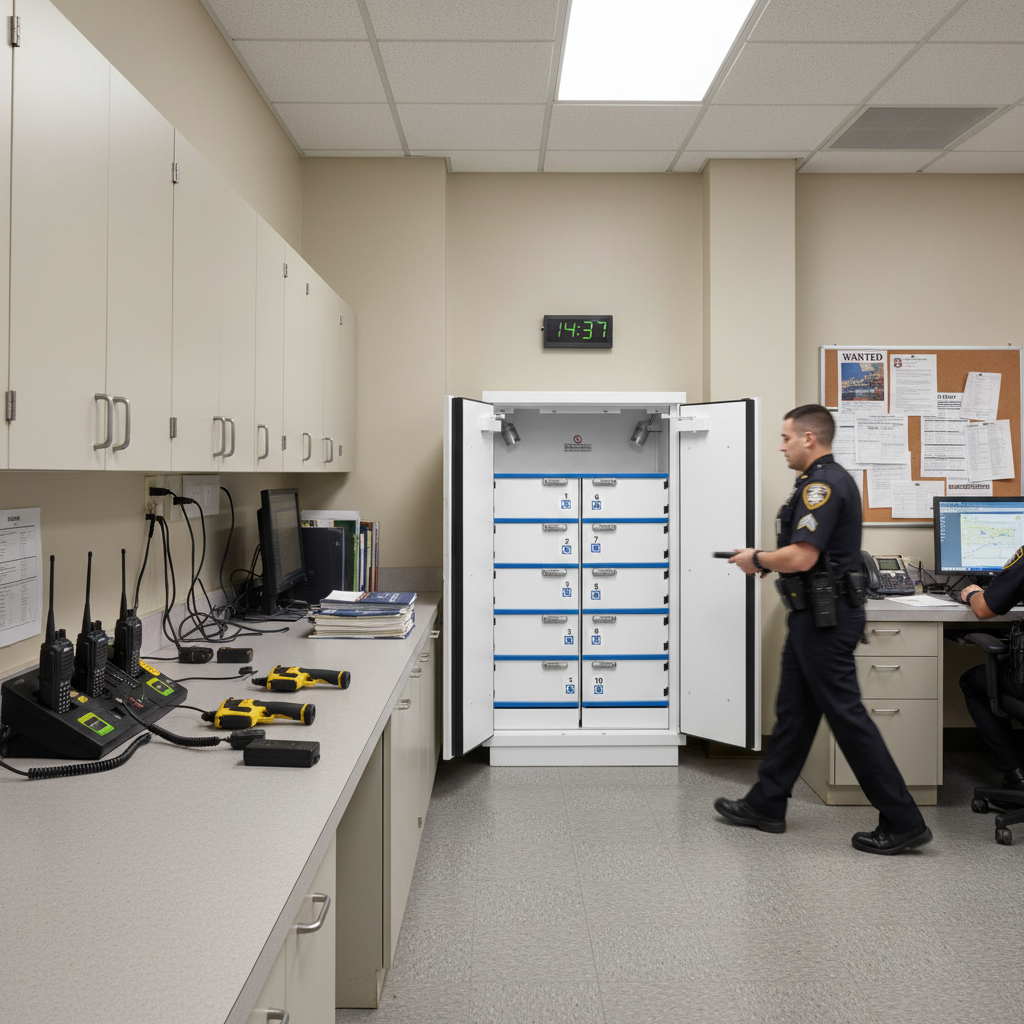

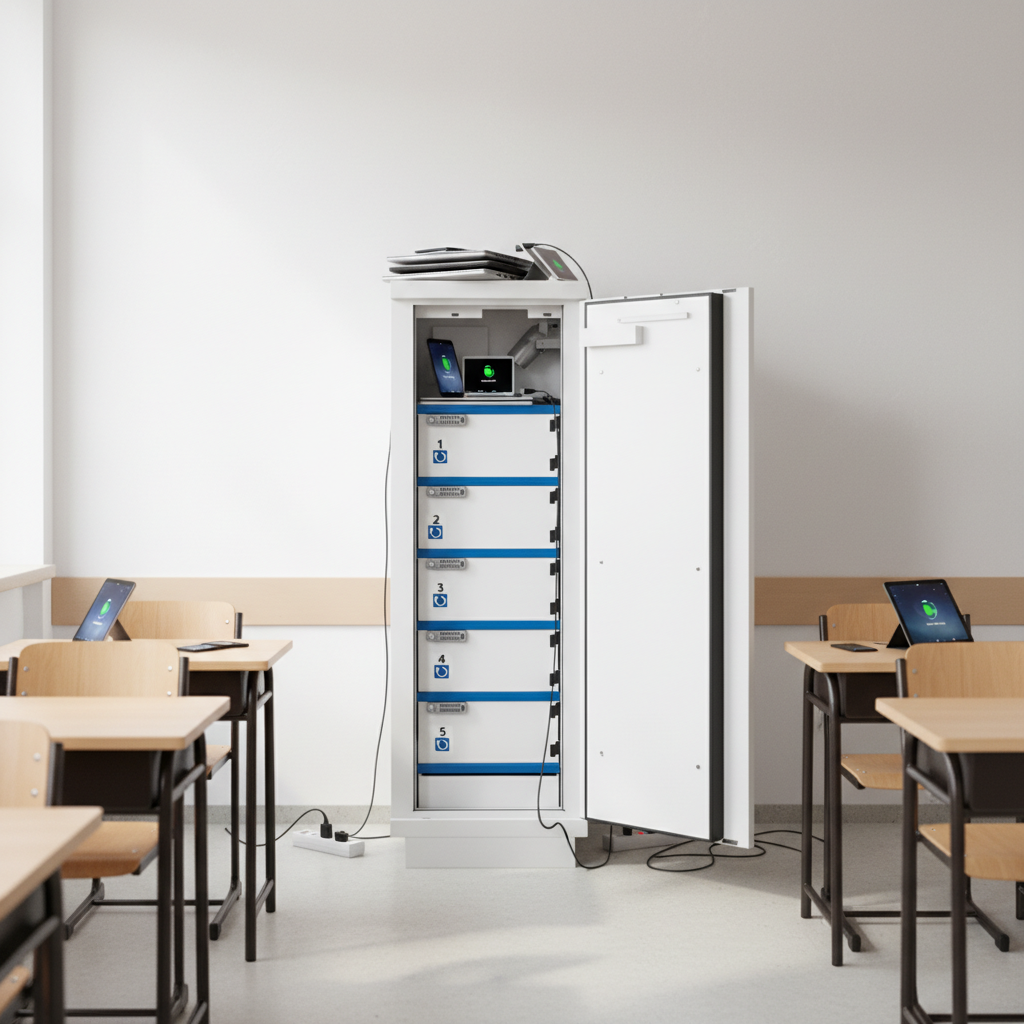

Applications
- Battery storage rooms
- Workshops and maintenance facilities

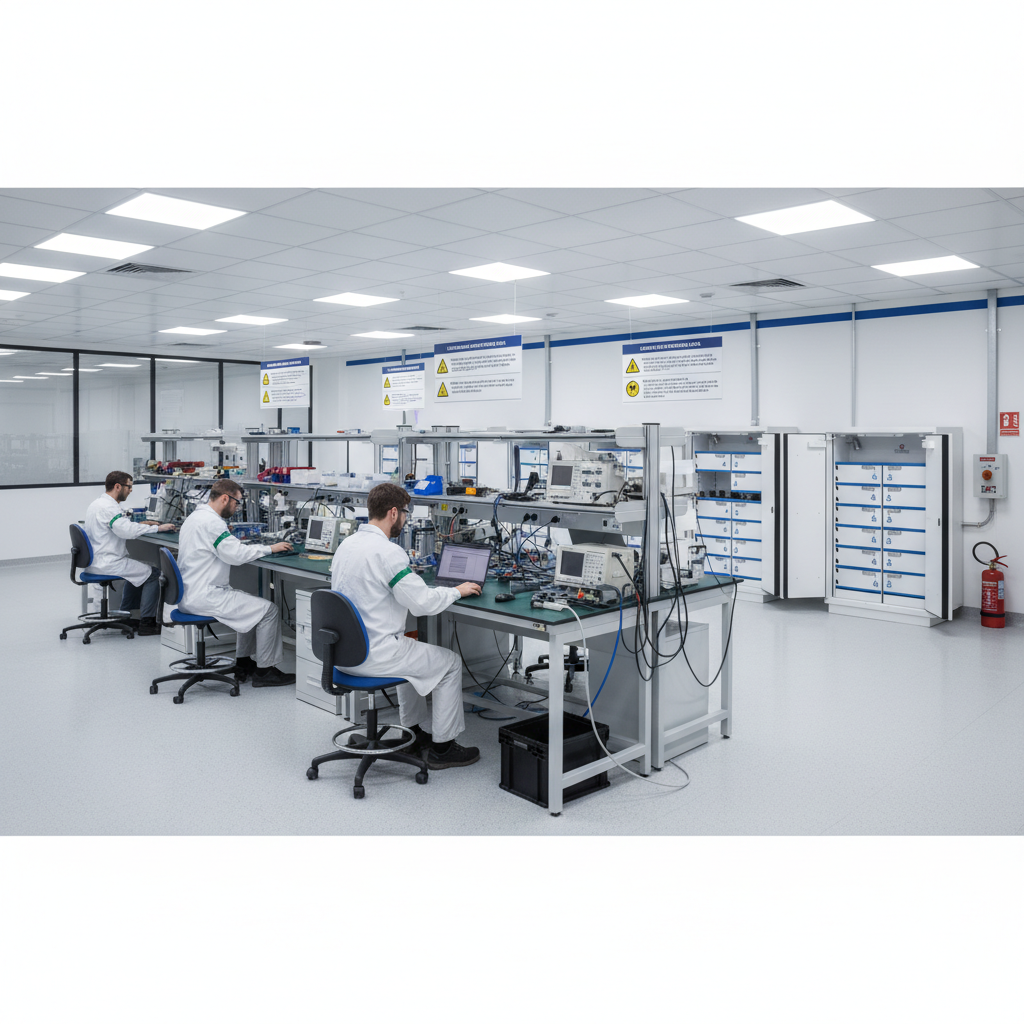

- Laboratories and R&D centers
- Industrial plants
- E-mobility and electronics sectors
Optional Accessories
- Additional containment sump
- Perforated shelves
- Extra 79°C automatic extinguisher
- Electronic code lock
- Ventilation box
- Smoke detector with Wi-Fi alarm
Advantages
- Certified 90-minute fire resistance
- Integrated fire suppression system
- Multi-compartment secure storage
- High structural fire protection (EI180)
- Durable and compliant design
Contact Us for Orders & Consultation
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Protect your lithium battery storage with advanced safety solutions from Salesbridges. Contact us today for pricing and configuration options.
| Brand | Salesbridges |
| Article code | SB794LIAC5 |
| SKU | SB794LIAC5 |
| EAN | 9501284686139 |
