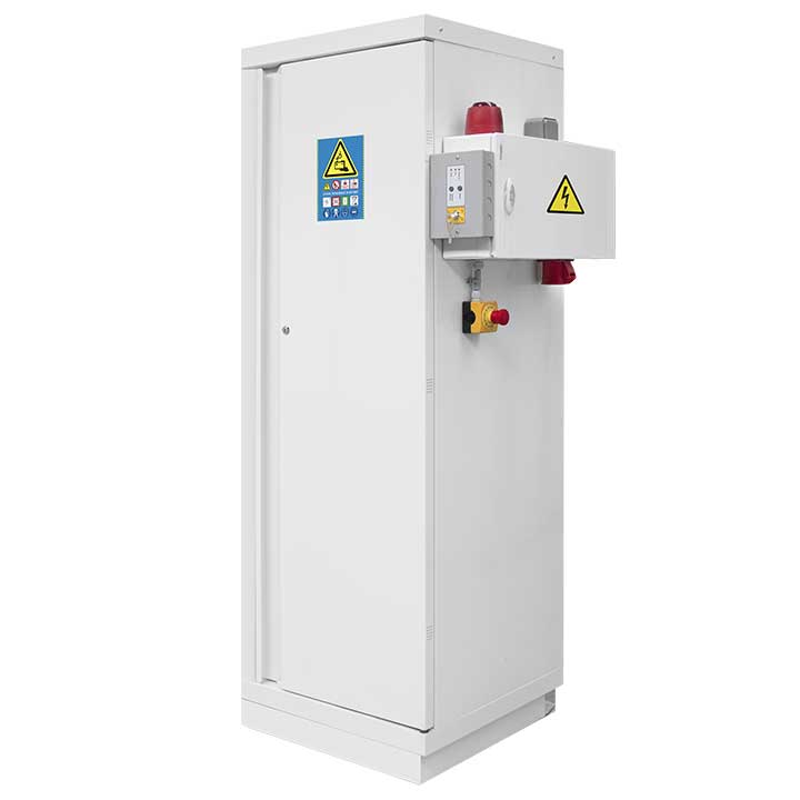

Lithium Battery Safety Cabinet 1 Door, 3 Phase, Pre-Equipped with Alarm, Extinguisher & Power Rack, Fire Resistance 90 Min, 1950x785x620 mm

Lithium Battery Safety Cabinet 1 Door, 3 Phase, Pre-Equipped with Alarm, Extinguisher & Power Rack | Fire Resistance 90 Min | 1950x785x620 mm

High-performance lithium battery safety cabinet designed for the safe charging and storage of lithium-ion batteries.
This single-door model comes pre-equipped with a complete electrical safety and fire protection system, making it ideal for laboratories, production facilities, and battery testing areas.

Tested and approved for 90 minutes of fire resistance in accordance with EN 14470-1 and EN 1363-1, with an EI180 inside-to-outside fire-stop construction, and tested for 105 minutes from outside to inside.
Manufactured in France under CSR standards and FM compliant, ensuring the highest safety for lithium-ion applications.

The model 794+LIX4TR4 includes 4 perforated steel shelves (E48LI), one automatic fire extinguisher (EX100LI), and a VIG190 control and alarm unit with visual and audible indicators. It also integrates a three-phase electrical supply system (32A-3P+T+N 380/415V) for controlled and secure charging.

Features:

• Fire Resistance: 90 minutes (EN 14470-1, EN 1363-1)

• Inside to outside fire-stop structure EI180

• Tested 105 min from outside to inside

• 1 hinged door with a secure locking system

• 4 adjustable E48LI shelves

• Automatic fire extinguisher (EX100LI)

• VIG190 alarm & smoke detection system

• Internal cable duct for safe routing

• Equipped with 4 PRISELITRI electrical outlets, connected via a 32A 3P+T+N plug (380/415V)

• Ventilation connection ports (Ø100 mm)

• Epoxy-coated steel construction with reinforced walls

• Complies with FM, EN14470-1, and EN1363-1 standards

Technical Specifications:
