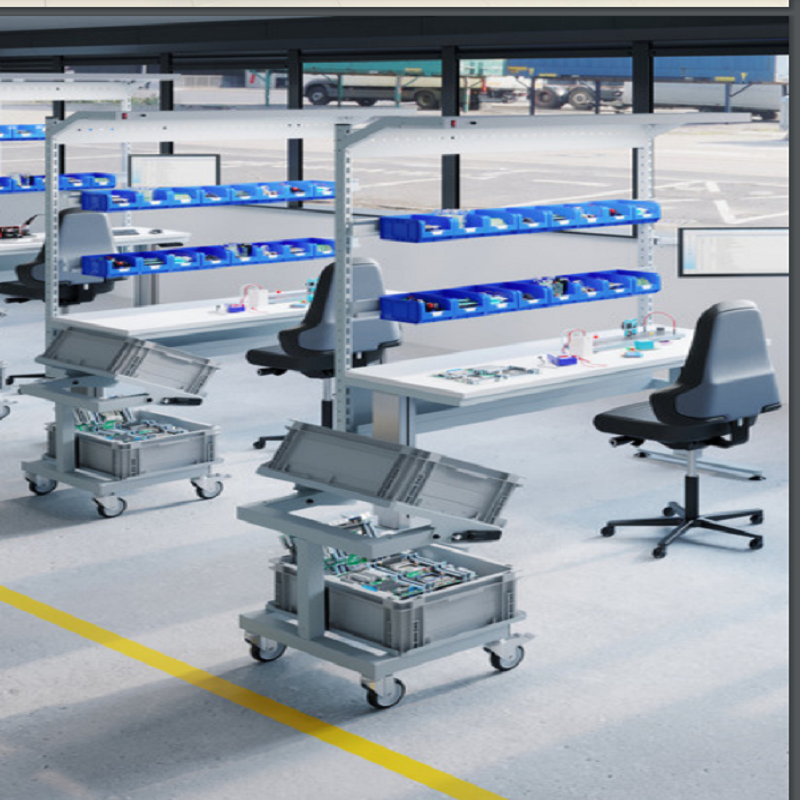

ESD Workstation for Electronics Industry – Height Adjustable, 30 mm Anti-Static Worktop

ESD Workstation for Electronics Industry – Height Adjustable, 30 mm Anti-Static Worktop

Professional Electrostatic-Safe Workstation

The ESD Workstation is specifically designed for the electronics and electromechanical industry, where protection against electrostatic discharge (ESD) is critical. It ensures safe handling of sensitive components by enabling continuous dissipation of static electricity to ground.

Complete ESD Protection Environment

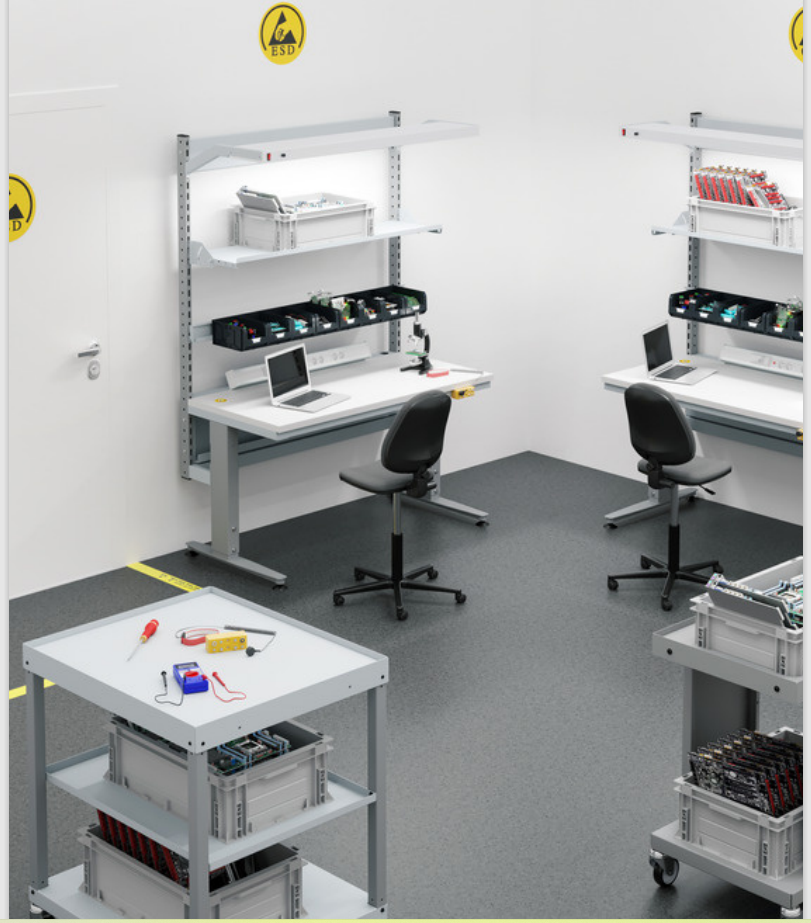

This workstation is part of a fully controlled ESD Protected Area (EPA), where all elements—furniture, operator, and floor—work together to eliminate electrostatic risks.

Key Features

• 30 mm ESD anti-static laminated worktop
• Height adjustable (manual or electric options)
• Designed for ESD-safe environments (EPA zones)
• Load capacity up to 300 kg
• Modular configurations with multiple frame options
• Conductive materials for efficient charge dissipation
• Complies with IEC 61340-5-1

Available Versions

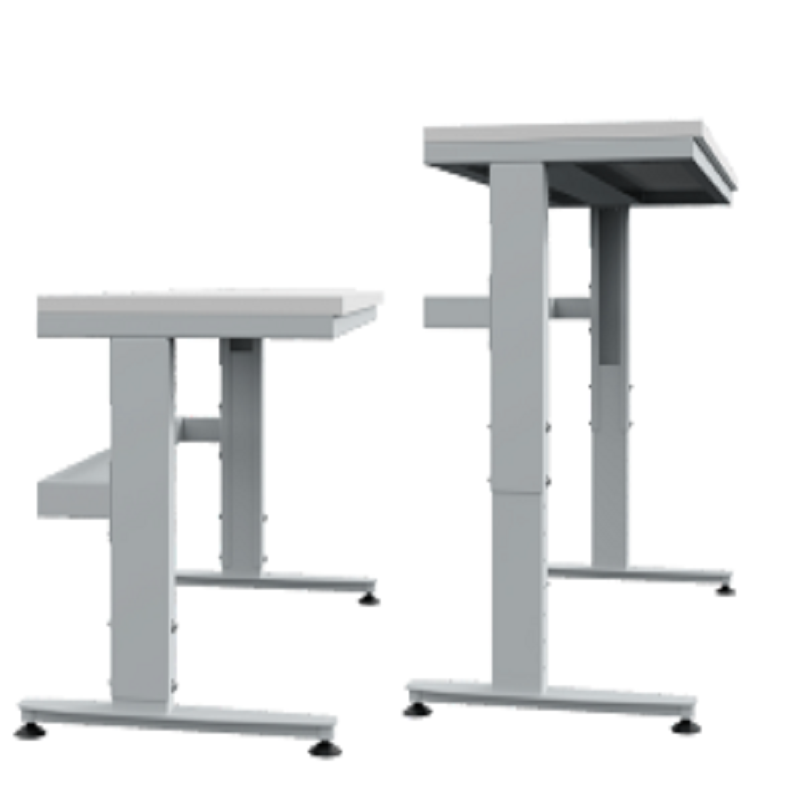

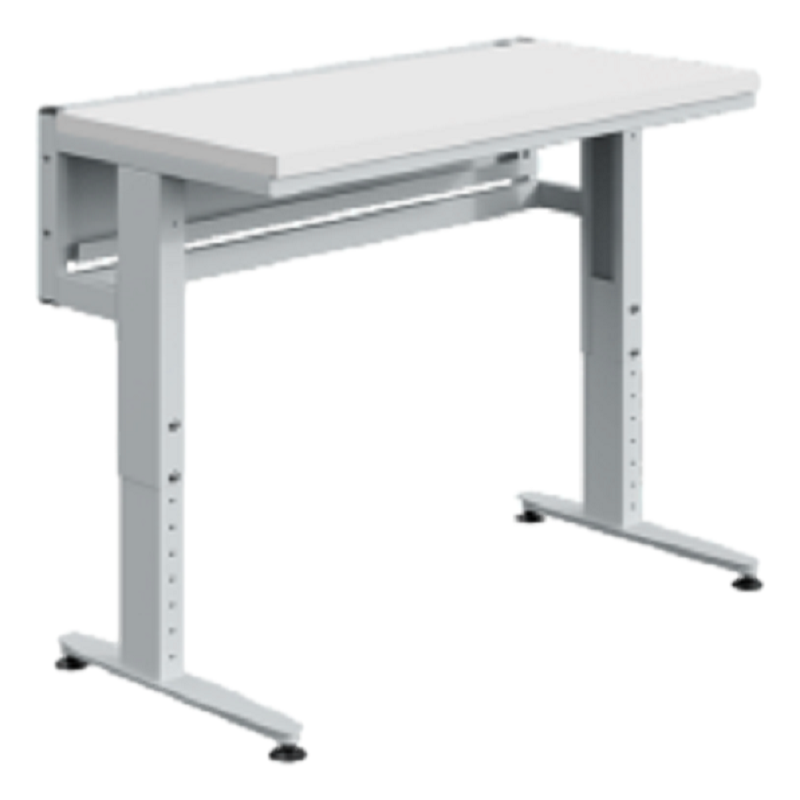

Manual Height Adjustment

• Adjustment range: 723 – 1073 mm (under worktop)
• Adjustment increments: 50 mm

Electric Height Adjustment

• Adjustment range: 723 – 1123 mm
• Smooth and ergonomic height control

Frame Configurations

• Beam only
• Beam + back panel

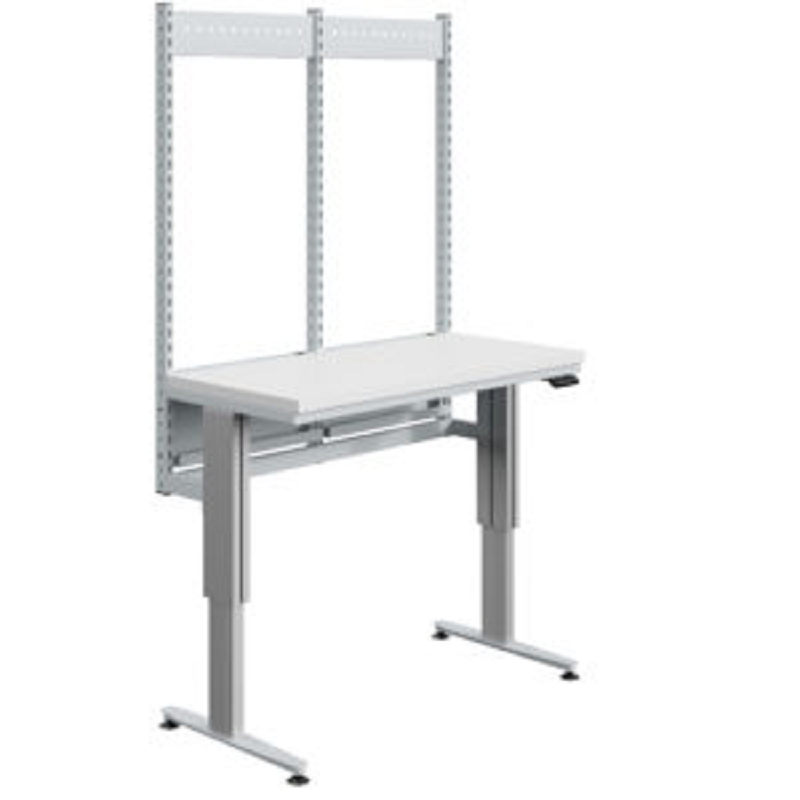

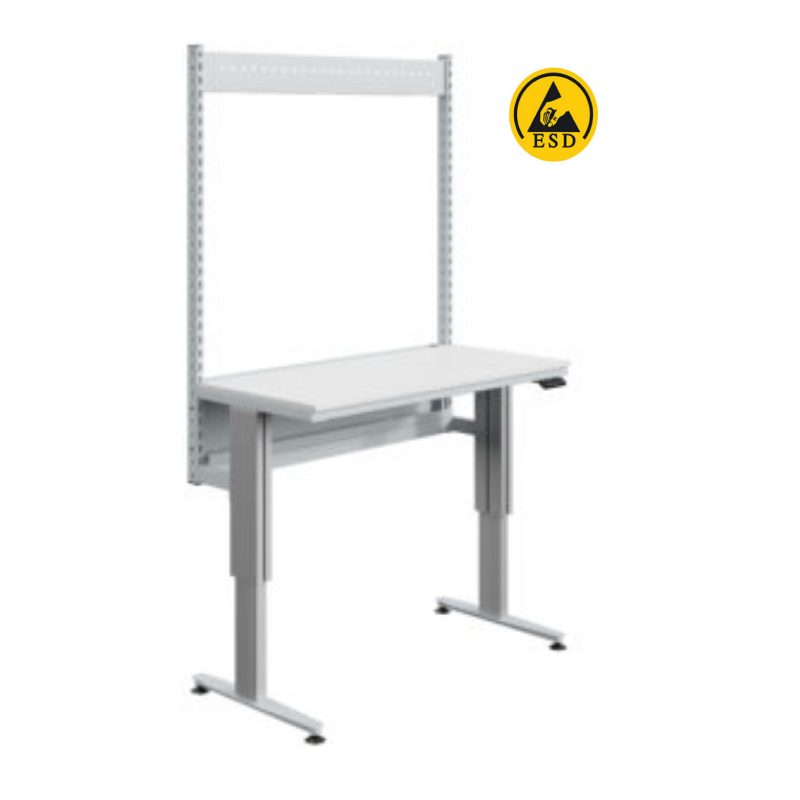

• Beam + uprights for superstructure
• Beam + back panel + uprights

•

Dimensions

ESD Protection System

Worktop

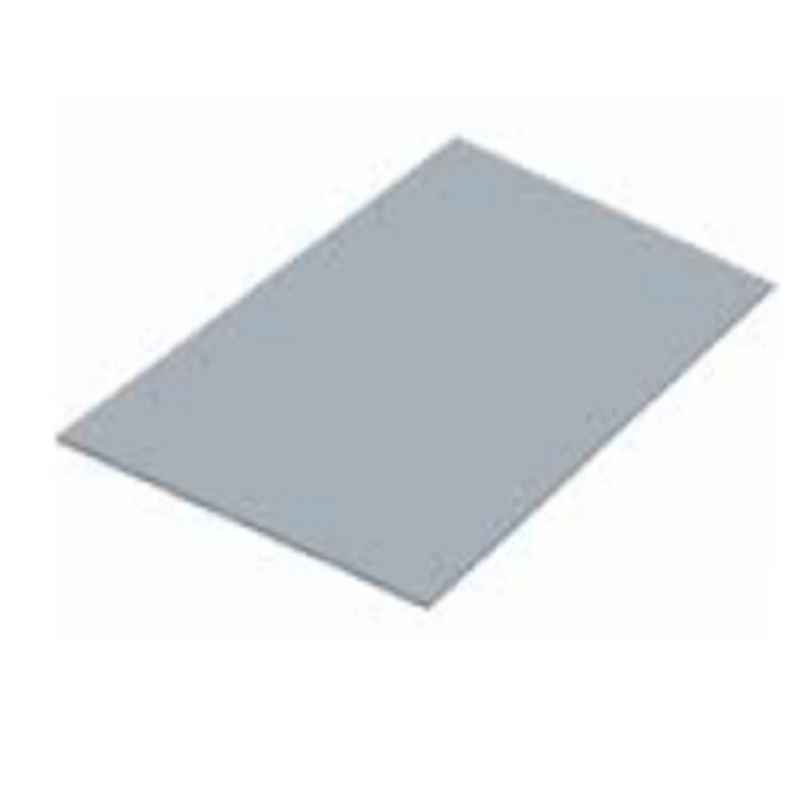

• Laminated ESD surface with carbon-based conductivity
• Ensures continuous discharge of static electricity

Coating

• Semi-conductive epoxy coating (RAL 7035)
• Enhances electrostatic dissipation

Grounding

• Earthing kits and electrical braids
• Conductive castors or feet

Insulation

• Foam isolation kits for controlled insulation where required

ESD Protection Levels

Level 1

• Basic ESD mat + wrist strap grounding

Level 2

• ESD tray + grounded structure

Level 3

• Full workstation grounding + ESD floor mats

Level 4

• Complete ESD environment with treated conductive flooring

Accessories

• ESD protection kits

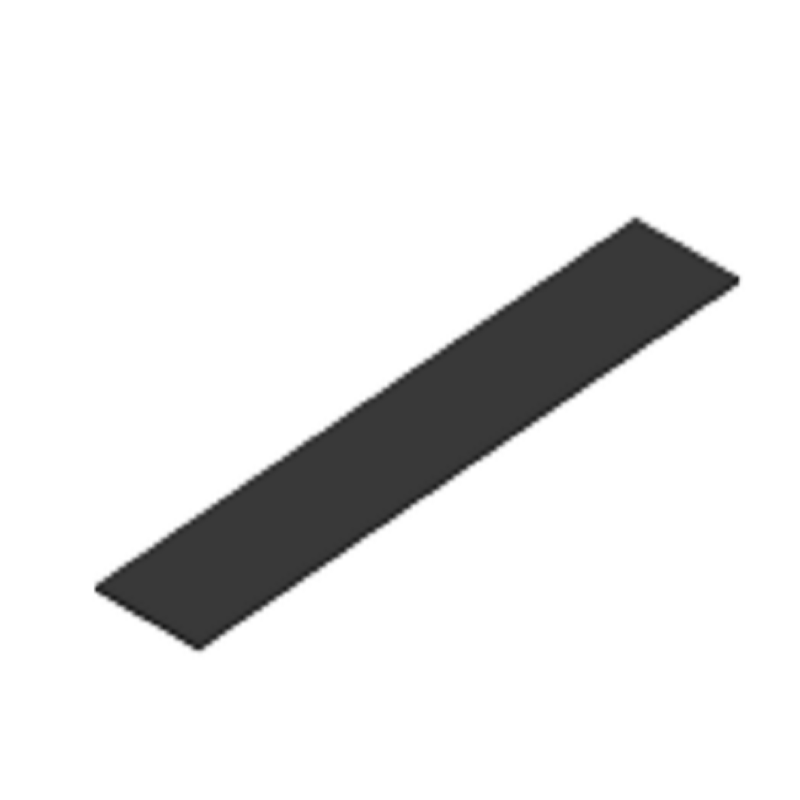

• ESD anti-static mats (worktop, shelves, trays)
• Insulating foam kits for shelves and ramps
• Superstructure systems for tools and components

Applications

• Electronics manufacturing
• PCB assembly and testing
• Electrical and wiring workstations
• Automation and robotics
• Maintenance and inspection labs

Trades & Users

• Electronics engineers and technicians
• Electrical assembly operators
• Automation specialists
• Wiring and panel builders
• Quality control inspectors

Advantages

• Prevents damage to sensitive electronic components
• Improves safety and compliance in ESD zones
• Ergonomic adjustable height for operator comfort
• Modular and scalable workstation design
• Durable industrial construction

Certifications

• IEC 61340-5-1 compliant (ESD Protected Areas)
• PEFC certified worktops

Made in France
