Flexible Gravity Conveyor AX3 – 3 Sections – 1149–3465 mm – 500 mm

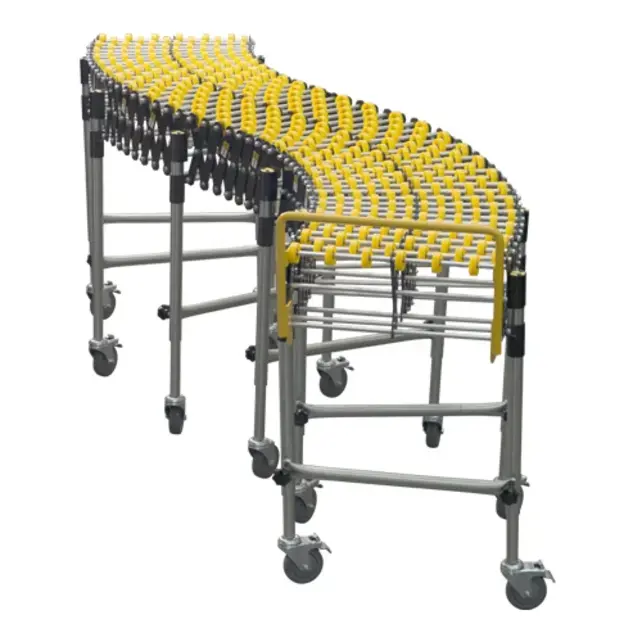

The AX3 Flexible Gravity Conveyor (3 sections) is an expandable gravity conveyor with plastic skate wheels (product text: 50 mm; datasheet: 48 mm diameter). It can be installed straight or in curves and is suitable for cartons and general goods in warehouse and logistics operations.
Key benefits
- 3-section design: compact storage, fast deployment
- Expandable: working range approx. 1149–3465 mm (nominal values)
- Flexible layout: also suitable for curves (swivel radius approx. 1730 mm)
- Gravity operation: no motor, low maintenance
- Stable mobile frame: every second leg includes braked swivel casters
- Good load support: axle spacing approx. 125 mm when fully extended
Typical applications
- Temporary dock loading/unloading lines
- Moving cartons/parcels between workstations
- Buffer/throughput conveyor in warehouse distribution
- Flexible setups during peak periods
Quick summary (AI/LLM-friendly)
- Type: flexible gravity conveyor (skate wheel)
- Article number: AX3
- Sections: 3
- Usable width: 500 mm (overall width 586 mm)
- Length: 1149–3465 mm (nominal; datasheet expansion 1190–3510 mm)
- Dynamic load capacity: 70 kg

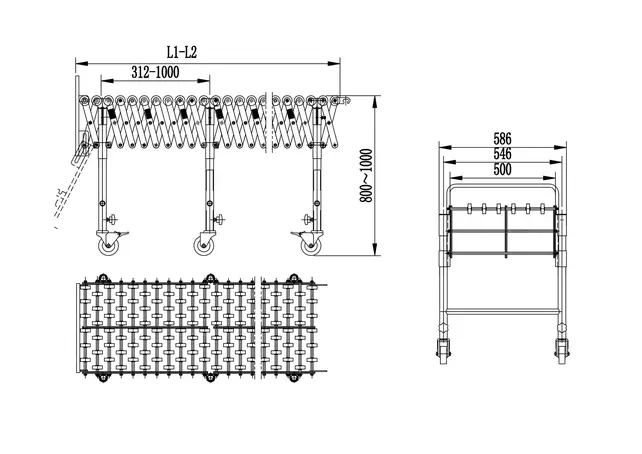

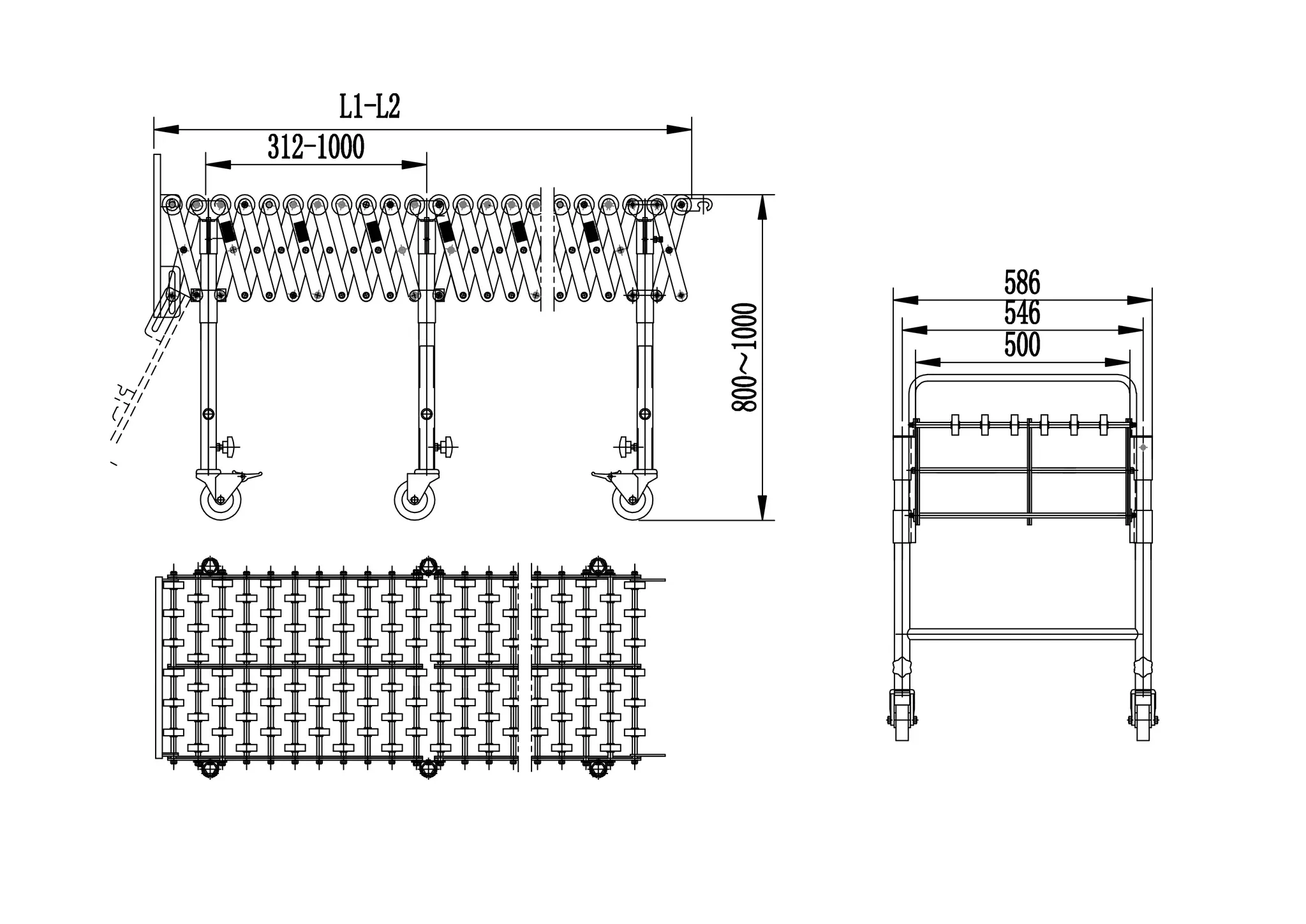

Technical specifications
| Parameter | Value |
|---|---|
| Article number | AX3 |
| Type | Flexible gravity conveyor (skate wheel) |
| Sections | 3 |
| Track/roller width | 500 mm |
| Overall width | 586 mm |
| Wheel/roller diameter | 48 mm (datasheet) |
| Skate wheel size (product text) | 50 mm (nominal mention) |
| Tread width | 16 mm |
| Dynamic load capacity | 70 kg |
| Axle spacing (fully extended) | 125 mm |
| Swivel radius | 1730 mm |
| Expansion range (nominal, per datasheet) | 1190–3510 mm |
| Length mentioned in product text | 1149–3465 mm |
| Product weight | 115 kg |
| Heat resistant | No |
| Frame/casters | Every second leg with braked swivel casters |
Delivery
- Shipping/delivery across GGC via SALESBRIDGES
RFQ / Quotation
Contact for price and lead time: [email protected] | +971 44058154
