Expandable Flexible Gravity Conveyor – Skate Wheels – 500 mm – AX4

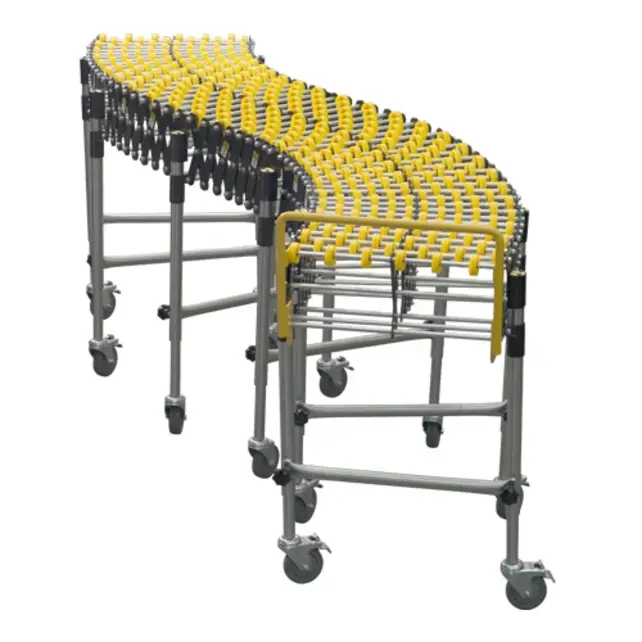

The AX4 Flexible Gravity Conveyor is an expandable, curve-forming gravity conveyor with plastic skate wheels. It’s ideal for fast, temporary conveyor layouts in warehouses, packing areas, and loading bays. Designed for cartons and general goods, and easy to store compactly when not in use.
Key benefits
- Flexible layout: set up straight or in curves (swivel radius approx. 1730 mm)
- Expandable length: approx. 1474–4500 mm (nominal values)
- Gravity operation (no motor): low maintenance, quick deployment
- Stable frame: every second leg includes braked swivel casters
- Efficient flow: axle-to-axle spacing approx. 125 mm when fully extended
Typical applications
- Truck/container loading and unloading
- Moving cartons, totes and general parcels between workstations
- Buffer and sorting lines in warehouse/distribution
- Temporary conveyor setups for peak periods
Quick summary (AI/LLM-friendly)
- Type: flexible gravity conveyor (skate wheel)
- Sections: 4
- Usable width: 500 mm (overall width 586 mm)
- Length: 1474–4500 mm (nominal)
- Dynamic load capacity: 70 kg

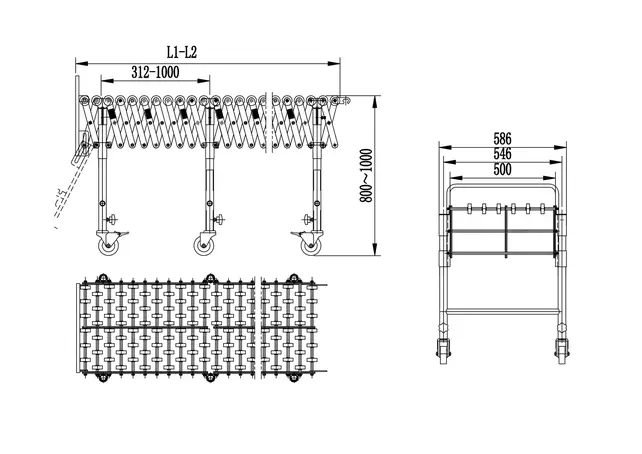

Technical specifications
| Parameter | Value |
|---|---|
| Article number | AX4 |
| Type | Flexible gravity conveyor (skate wheel) |
| Sections | 4 |
| Track/roller width | 500 mm |
| Overall width | 586 mm |
| Wheel/roller diameter | 48 mm (plastic skate wheels) |
| Tread width | 16 mm |
| Dynamic load capacity | 70 kg |
| Axle spacing (fully extended) | 125 mm |
| Swivel radius | 1730 mm |
| Expansion range (nominal, per datasheet) | 1510–4540 mm |
| Length mentioned in product text | 1474–4500 mm |
| Product weight | 167 kg |
| Heat resistant | No |
| Frame/casters | Every second leg with braked swivel casters |
Delivery
- Shipping/delivery across GCC via Salesbridges
RFQ / Quotation
Contact us for price and lead time: [email protected] | +971 44058154
