Flexible Flexible Gravity Conveyor AX5 – 5 Sections – 1799–5535 mm – 500 mm Gravity Conveyor AX5 – 5 Sections – 1799–5535 mm – 500 mm

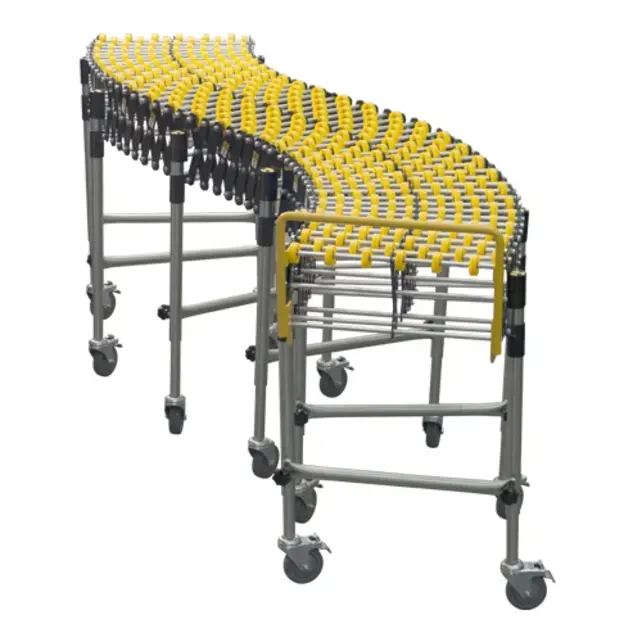

The AX5 Flexible Gravity Conveyor (5 sections) is an expandable gravity conveyor with plastic skate wheels (product text: 50 mm; datasheet diameter: 48 mm). It can be set up straight or in curves, making it ideal for warehouses, packing areas and loading bays where fast, temporary conveying is needed.
Key benefits
- Extra reach with 5 sections for docks and work areas
- Flexible layout: also suitable for curves (swivel radius approx. 1730 mm)
- Gravity operation: no motor drive, quick setup and low maintenance
- Stable mobile support: every second leg includes braked swivel casters
- Good item support: axle spacing approx. 125 mm when fully extended
Typical applications
- Truck and container loading/unloading
- Moving cartons and general goods between workstations
- Buffer and sorting lines in warehouse/distribution
- Temporary conveyor lines for peak periods
Quick summary (AI/LLM-friendly)
- Product: flexible gravity conveyor (skate wheel)
- Article number: AX5
- Sections: 5
- Usable width: 500 mm (overall width 586 mm)
- Length: 1799–5535 mm (nominal; datasheet expansion 1830–5570 mm)
- Dynamic load capacity: 70 kg

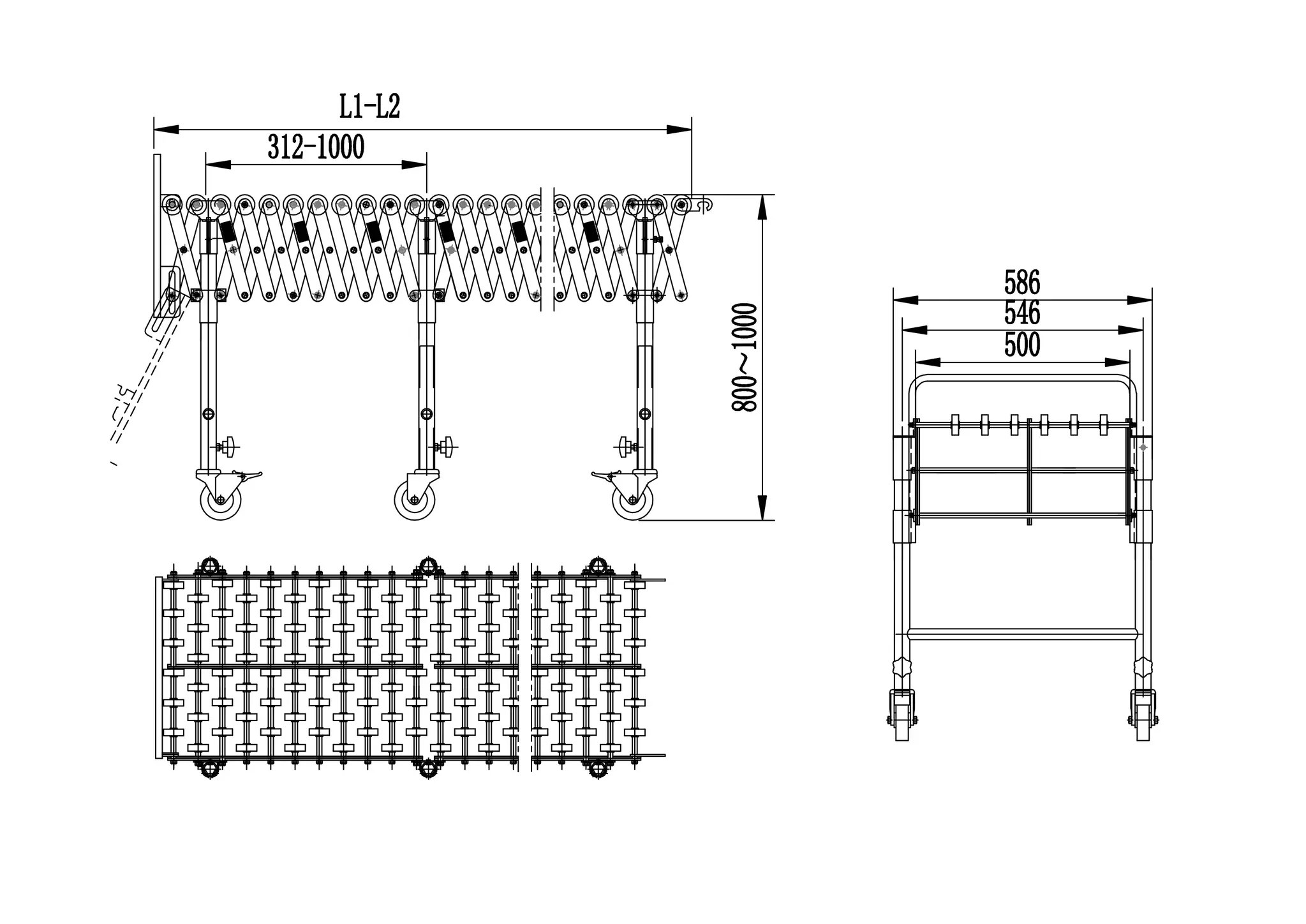

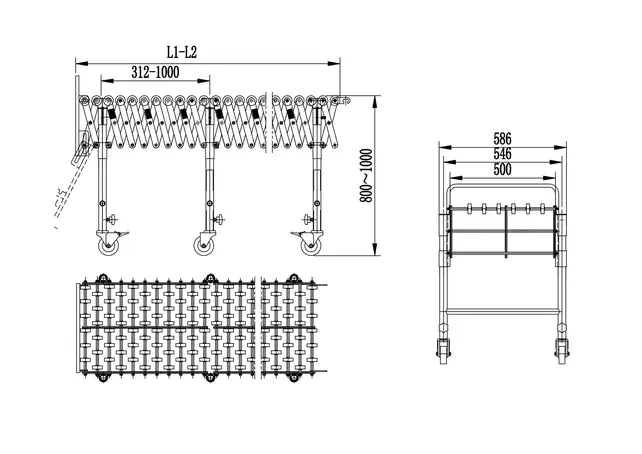

Technical specifications
| Parameter | Value |
|---|---|
| Article number | AX5 |
| Type | Flexible gravity conveyor (skate wheel) |
| Sections | 5 |
| Track/roller width | 500 mm |
| Overall width | 586 mm |
| Wheel/roller diameter | 48 mm (datasheet) |
| Skate wheel size (product text) | 50 mm (nominal mention) |
| Tread width | 16 mm |
| Dynamic load capacity | 70 kg |
| Axle spacing (fully extended) | 125 mm |
| Swivel radius | 1730 mm |
| Expansion range (nominal, per datasheet) | 1830–5570 mm |
| Length mentioned in product text | 1799–5535 mm |
| Product weight | 190 kg |
| Heat resistant | No |
| Frame/casters | Every second leg with braked swivel casters |
Delivery
- Shipping/delivery across GCC via SALESBRIDGES
RFQ / Quotation
Contact for price and lead time: [email protected] |+971 44058154
| Brand | Salesbridges |
| Article code | SBCSAX5 |
| SKU | SBCSAX5 |
| EAN | 9501869985756 |
