ESD Trolley With 2 Large Shelves adjustable in height L159xW65xH103 cm
- Buy 2 for AED 6,615.00 each and save 25%
- Buy 4 for AED 5,250.00 each and save 41%
Electro Galvanized with ESD Shelves large size , Shelves Can be Mounted on Different Heights. Adjustable handle
4 swivel castors 125 mm. ESD Trolleys are equipped with Dissipative Carpets and are SP Approved.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

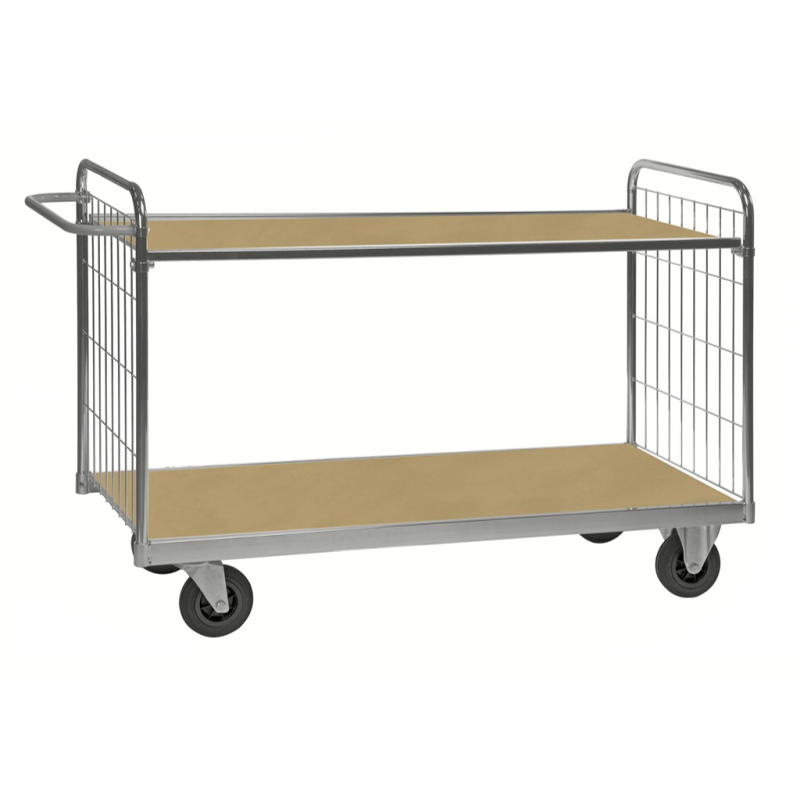

ESD Trolley with 2 Large Shelves, Adjustable in Height, 159 x 65 x 103 cm
The ESD trolley with 2 large shelves is a flexible and durable transport solution for ESD-sensitive environments. Designed with adjustable shelf heights, an adjustable handle, and conductive components, it meets IEC61340-5-1 requirements for safe use in electronics, assembly, and technical work areas. Its electro-galvanized finish and heat-resistant dissipative shelf carpets ensure long-term performance.
Key Features
- 2 large ESD-adapted shelves
- Shelves adjustable in height
- Adjustable handle
- Electro-galvanized construction
- Dissipative carpets on shelves
- 4 swivel castors, 125 mm
- Meets IEC61340-5-1 ESD standard
- SP approved
- Shelf carpets withstand heat up to 400°C
- Suitable for a wide range of industrial and technical applications
Technical Specifications
| Specification | Value |
|---|---|
| Length | 1590 mm |
| Width | 650 mm |
| Height | 1025 mm |
| Capacity | 300 kg static load |
| Weight | Net: 41 kg / Gross: 43 kg |
| Material | Electro-galvanized steel with ESD shelves |
| Color | Galvanized finish |
| Additional | 2 shelves, 4 swivel castors Ø125 mm, freight volume: 0.4 m³, adjustable shelf height, adjustable handle |
Construction & Details
- Electro-galvanized trolley frame for durability and corrosion resistance
- ESD shelves fitted with dissipative carpets for controlled static dissipation
- Shelf carpets connected to the chassis, which is grounded through conductive wheels
- Adjustable shelf height allows flexible configuration based on user requirements
- Adjustable handle improves ergonomic use
- Shelf carpets withstand temperatures up to 400°C
- Measured according to IEC61340-5-1
- Meets resistance to ground (Rg) max 10⁹ Ω / 1 GΩ
- Meets surface resistance (Rp-p) max 10⁹ Ω / 1 GΩ
Standard Delivery
- 1 x ESD trolley
- 2 x large ESD shelves
- Adjustable handle
- 4 x swivel castors, 125 mm
- Ready for use / assembly as supplied
Applications
- Electronics manufacturing
- ESD-safe assembly areas
- Technical workshops
- Production and service environments
Advantages
- Protects sensitive components from electrostatic discharge
- Flexible shelf positioning for different storage and handling needs
- Durable, heat-resistant shelf surface
- Smooth mobility with ergonomic handling
Optional / Variants
- Other sizes available on request
- Additional ESD trolley configurations available
Origin
- Made in [Country]
Contact Us
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
| Brand | Kongamek |
| Article code | SB90002LESD |
| SKU | SB90002LESD |
| EAN | 9503511952628 |
