Extreme Duty Ground Protection Mats, 4 m x 2 m Work Pads

Create your own review

Price on request

Extreme heavy duty cellular core overlap ground protection mat. Designed for use as Trackways or Work Pads in the most extreme conditions.13’1” x 6’5” x 3.54” (2000 x 4000 x 94mm) with a load capacity in excess of 600 psi*. Durable, Thickness : 90 mm
r

In stock

4-8 weeks

Quantity

- +

Price on request

Add to wishlist

Excellent quality
Large product range
Smart sollutions
More information? Contact us about this product
Add to comparison list

Product description

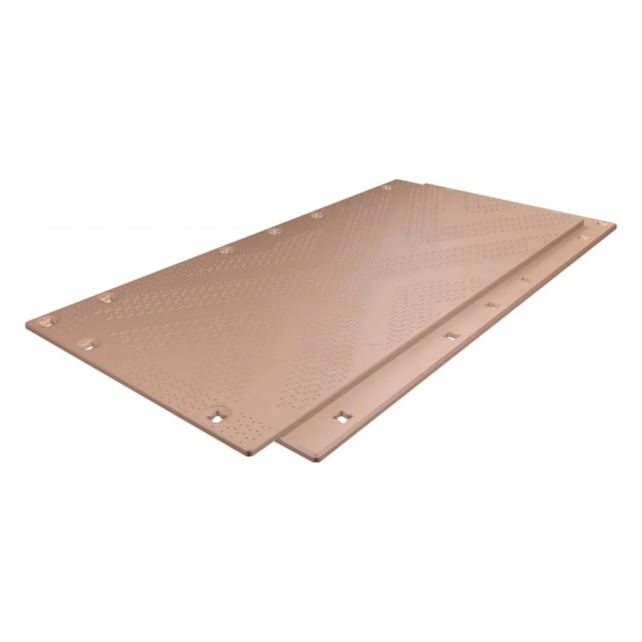

Extreme Duty Ground Protection Mat, 4 m x 2 m Work Pad – TUFFTRAK® TTXT

Heavy-duty ground protection mat designed to create safe, stable, and durable temporary roadways and working platforms in demanding environments. TUFFTRAK® TTXT panels are quick to deploy, easy to connect, and engineered to perform in harsh conditions such as mud, sand, snow, and swampy ground.

Manufactured from High Molecular Weight Polyethylene (HMWPE) using a compression molding process, these mats combine strength, durability, and reliable traction. The Chevron Traction® surface pattern provides excellent grip, while the Four3™ camlock connector system allows fast installation in multiple configurations.

The foam-filled cellular core helps prevent liquid intake, making the panels suitable for a wide range of industrial and infrastructure applications.

Key Features

Heavy-duty ground protection mat for temporary access roads and work pads
Made from High Molecular Weight Polyethylene (HMWPE)
Chevron Traction® surface nub design for maximum grip
Strengthened overlaps for extra durability at connectors and corners
Exclusive Four3™ camlock connector system
Only 2 fixing points per mat required out of 16
Foam-filled cellular core helps prevent liquid intake
Hand holes for easier handling
Fast and easy to install
Suitable for repeated use in challenging site conditions

Typical Applications

Civil engineering
Construction
Oil & gas
Utilities
Transmission
Infrastructure
Military sites
Events

Specifications

Specification	Details
Product	TUFFTRAK® TTXT
Material	High Molecular Weight Polyethylene (HMWPE)
Manufacturing process	Compression molding
Overall size	4000 x 2000 x 94 mm
Imperial size	13'1" x 6'5" x 3.54"
Nominal thickness	90 mm
Weight	360 kg / 794 lbs
Usable surface area	73.62 ft²
Surface design	Chevron Traction®
Overlap	200 mm on all sides
Pure compressive load capacity	600 psi*
Connector system	Four3™ camlock
Available color	Sand (Beige)

Benefits

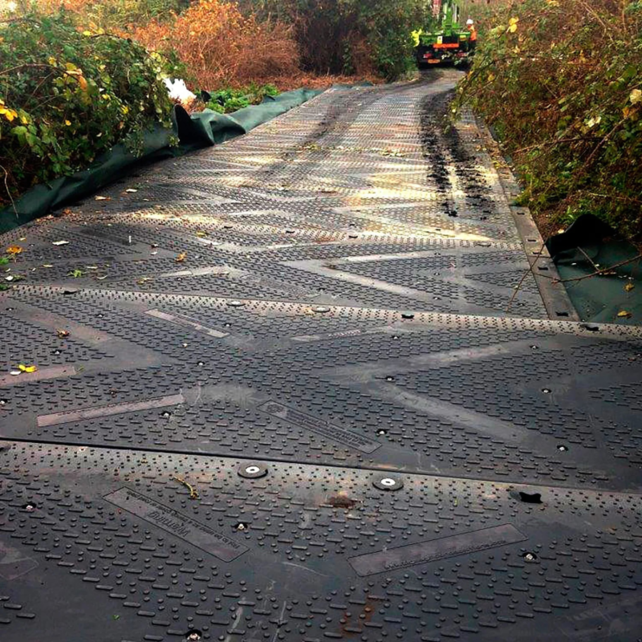

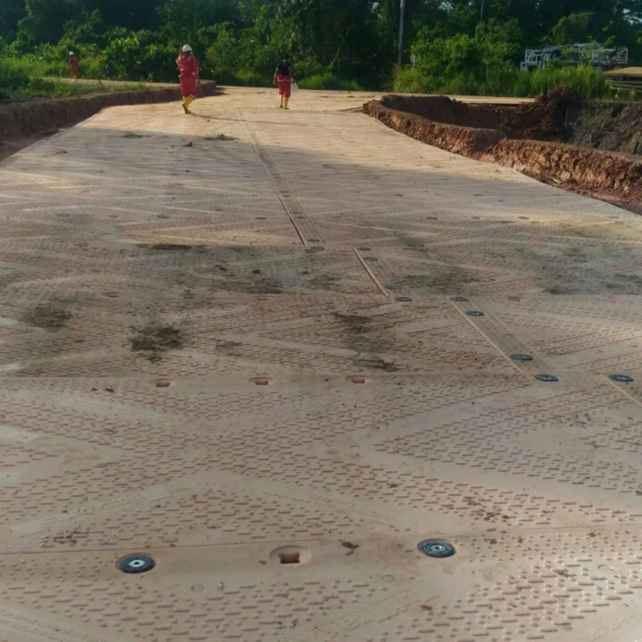

Trackway panels allow heavy equipment to move safely across unstable ground by creating temporary access roads and stable work platforms. They are an important safety solution for remote site access and are widely used in oil & gas, drilling, transmission, renewable energy, utilities, civil engineering, infrastructure, and construction projects.
