Diamond Stat™ 826 Notrax electro static discharge mats

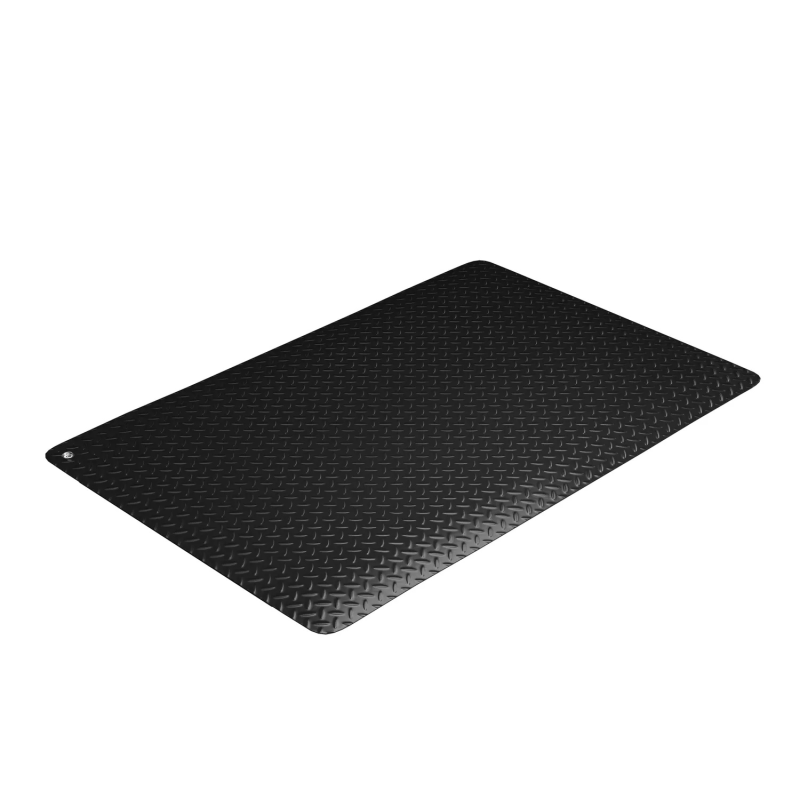

Notrax 826 Diamond Stat™ – Static Dissipative Anti-Fatigue Mat

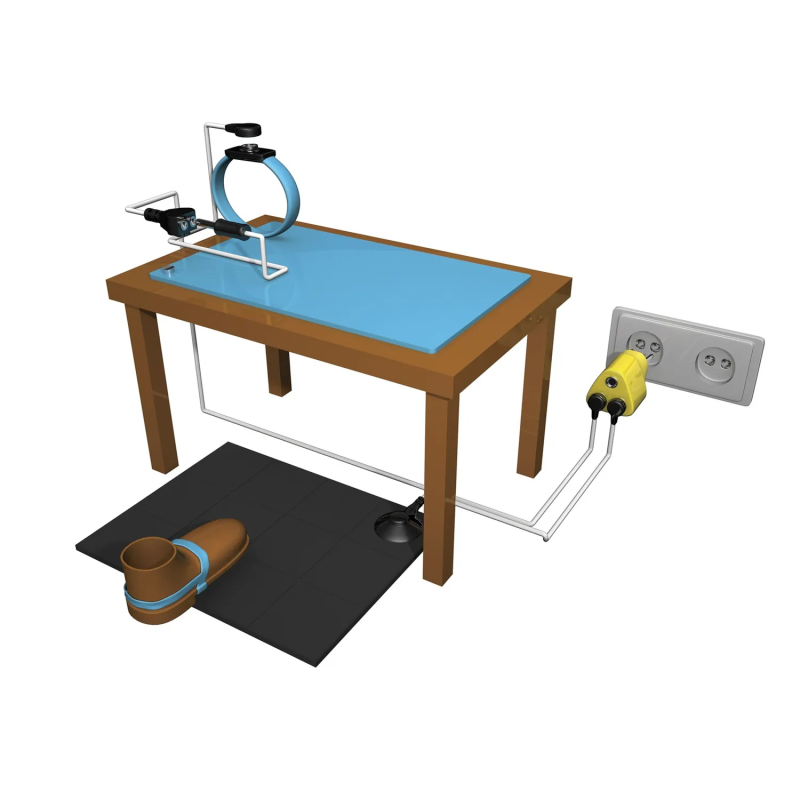

Designed for high-performance industrial environments, the Notrax 826 Diamond Stat™ combines ergonomic comfort, durability, and electrostatic discharge (ESD) protection in one premium mat. Ideal for use in ESD assembly lines, packing stations, logistics warehouses, and static-sensitive work areas, it helps reduce worker fatigue while ensuring safety and compliance.

 Key Features:

Static Dissipative (IEC61340-4-1): Rp 10⁶ - 10⁹ Ω

14 mm thick laminated platform: Durable top + cushioned base

RedStop™ backing: Prevents movement on slick floors

UniFusion™ bonded surface: Long-lasting lamination

Bevelled edges: Reduces tripping hazards

Diamond deck surface: Excellent grip and torsion ease

Includes 10 mm socket and grounding cord

 Product Specifications:

Art. Nr. Dimensions (cm) Weight (kg) Thickness (mm) Grounding Type

826S023GBL 60 x 91 3.5 14 Female Socket
826S035GBL 91 x 150 9 14 Female Socket
826S202GBL 91 x 200 12 14 Female Socket
826S312GBL 91 x 300 18 14 Female Socket
826S0023BL 60 x 91 3.5 14 Ring Terminal
826S0035BL 91 x 150 9 14 Ring Terminal
826S202MBL 91 x 200 12 14 Ring Terminal
826S0312BL 91 x 300 18 14 Ring Terminal

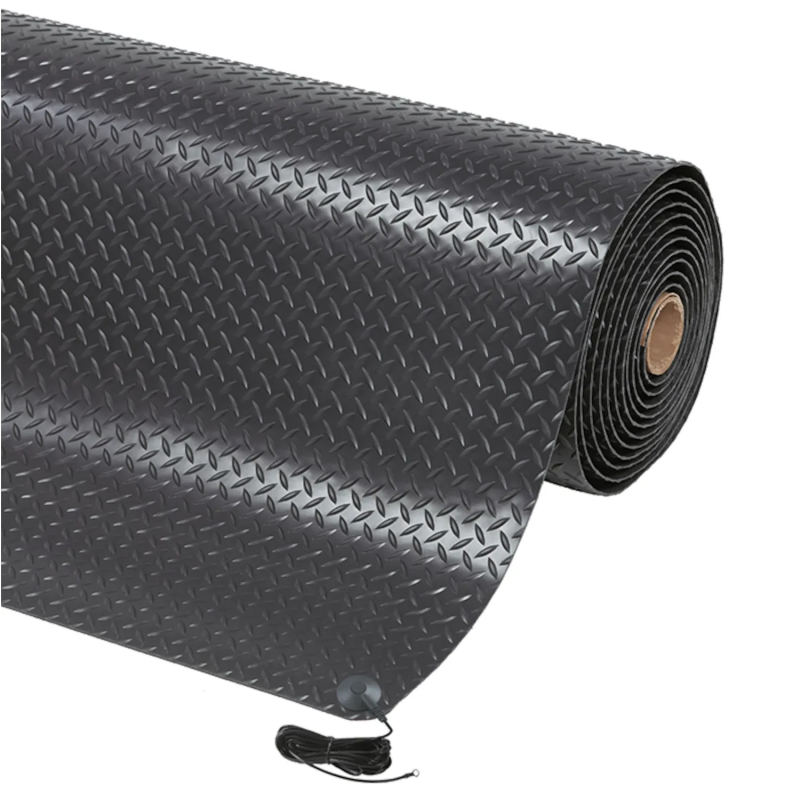

 Rolls and Custom Lengths Available (91 or 122 cm widths up to 22.8 m)

 Additional Info:

Slip Resistance: R10

Fire Rating: EN 13501-1 Cfl-S1 (EU), Pass (US)

Surface: Diamond PVC with Microcellular Vinyl Backing

REACH & RoHS Compliant

1-Year Warranty
