Truck Wheel Guides – 3000 mm (Galvanized Steel, TÜV Certified)
Salesbridges offers you the wheel guide for trucks. The guide is modular, galvanized steel with a length of 3,000 mm and a height of 305 mm. It is an excellent additional protection and extra safety for docks and loading ramps. Available in yellow-black a
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Truck Wheel Guides – 3000 mm (Galvanized Steel, TÜV Certified)
Precision Docking & Maximum Protection

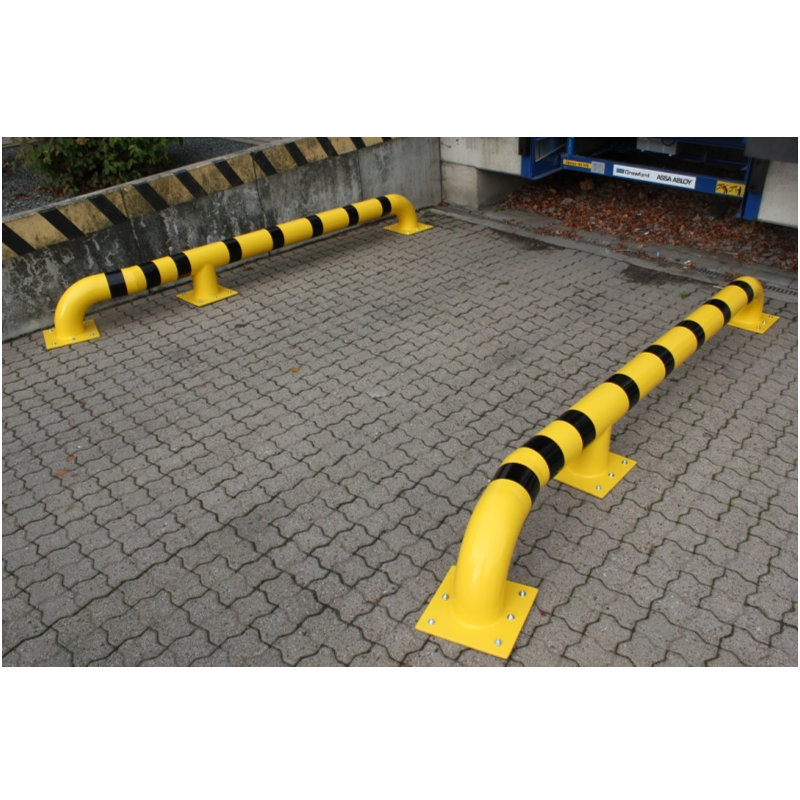

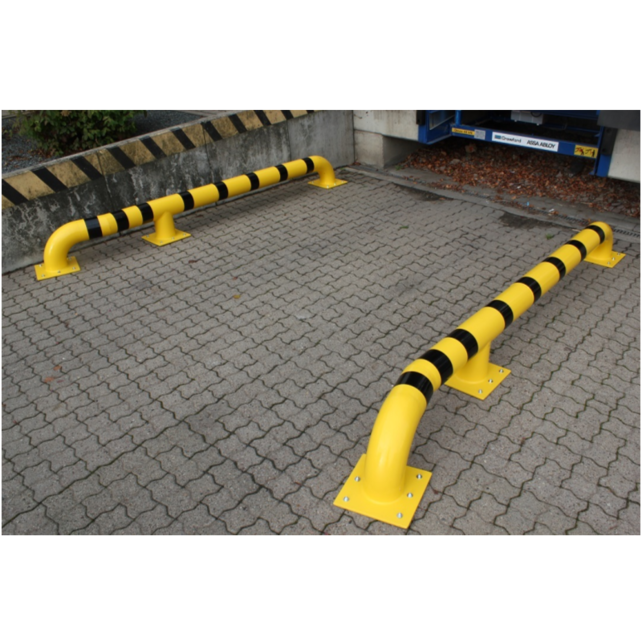

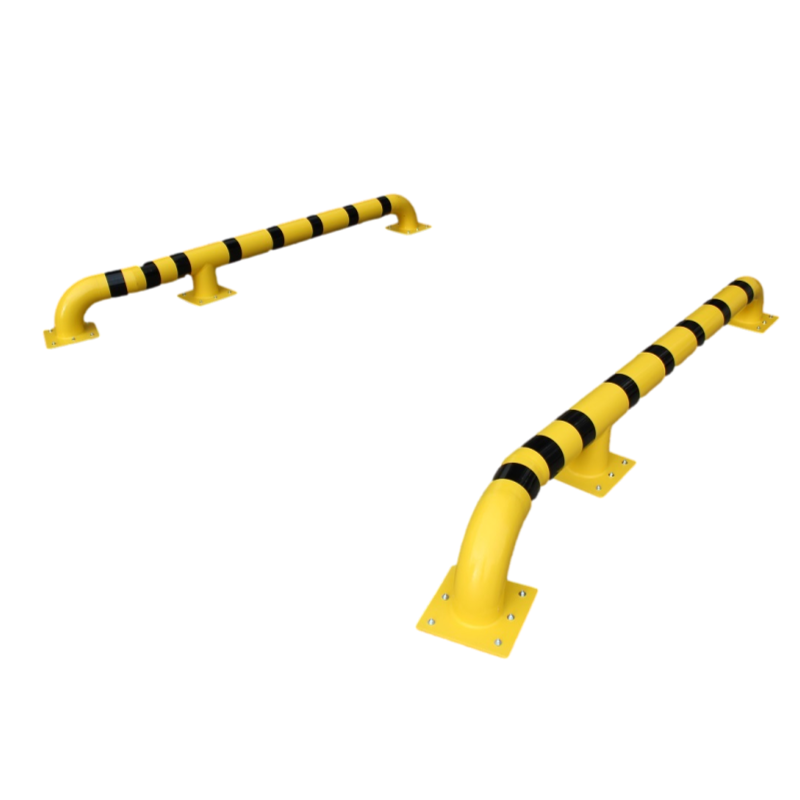

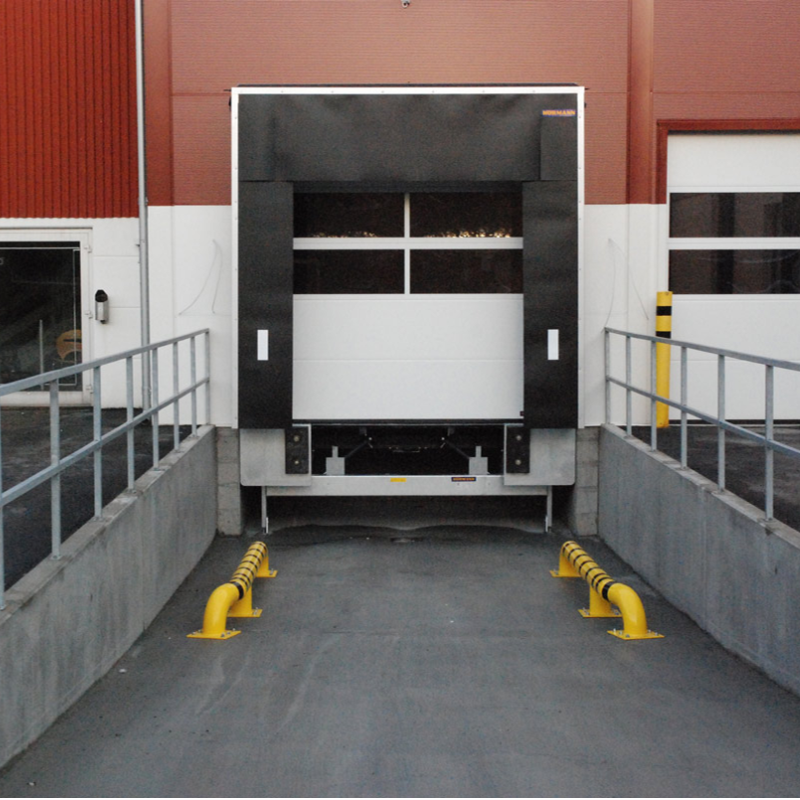

The Truck Wheel Guides 3000 mm are designed to guide trucks safely into loading docks, preventing damage to buildings, ramps, and vehicles. This modular system provides enhanced safety and precision alignment during docking operations.

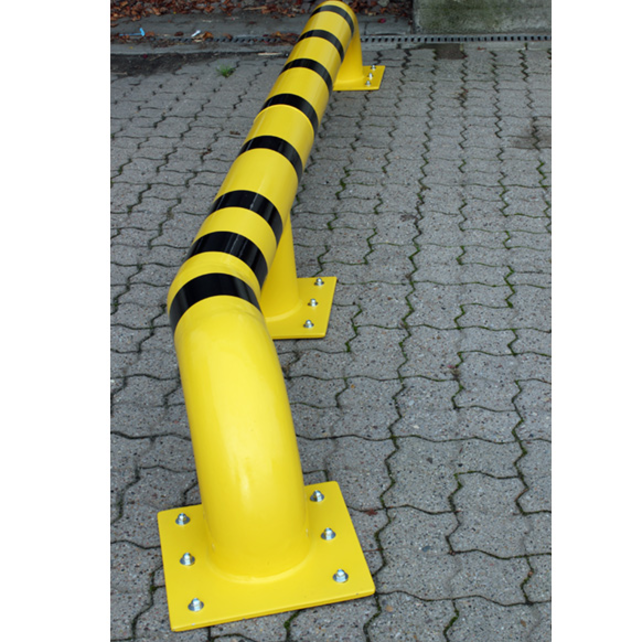

Heavy-Duty & Modular Construction

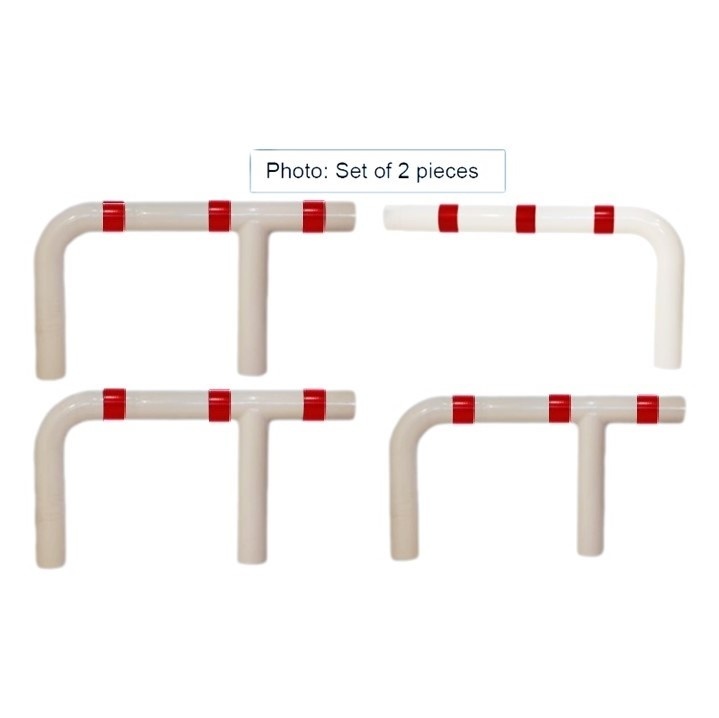

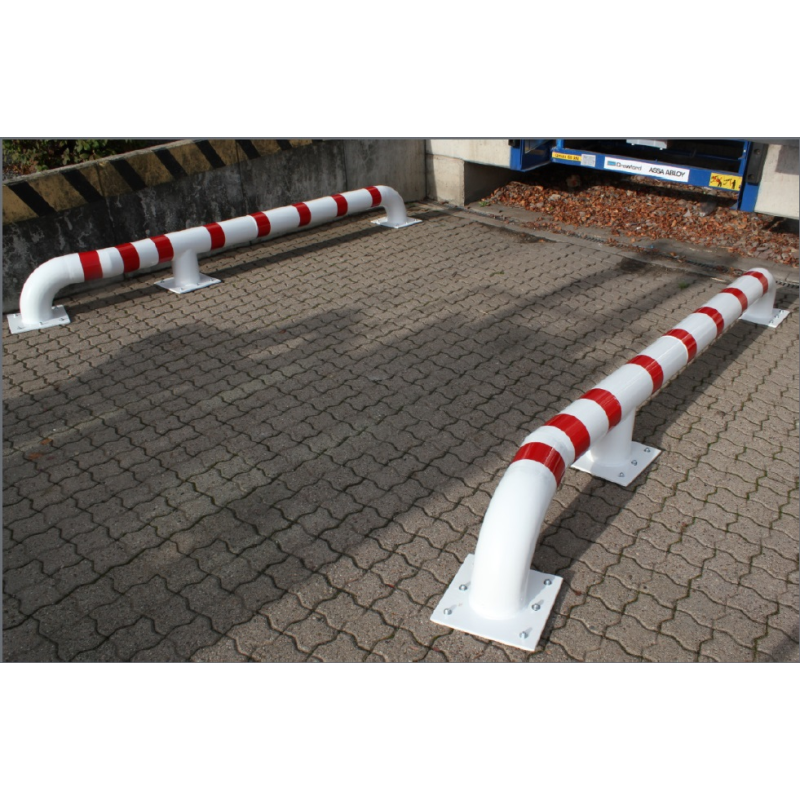

Manufactured from galvanized and powder-coated steel, these guides are built for long-term durability in demanding environments. Available in yellow/black or red/white, they ensure high visibility for drivers.
Key Features

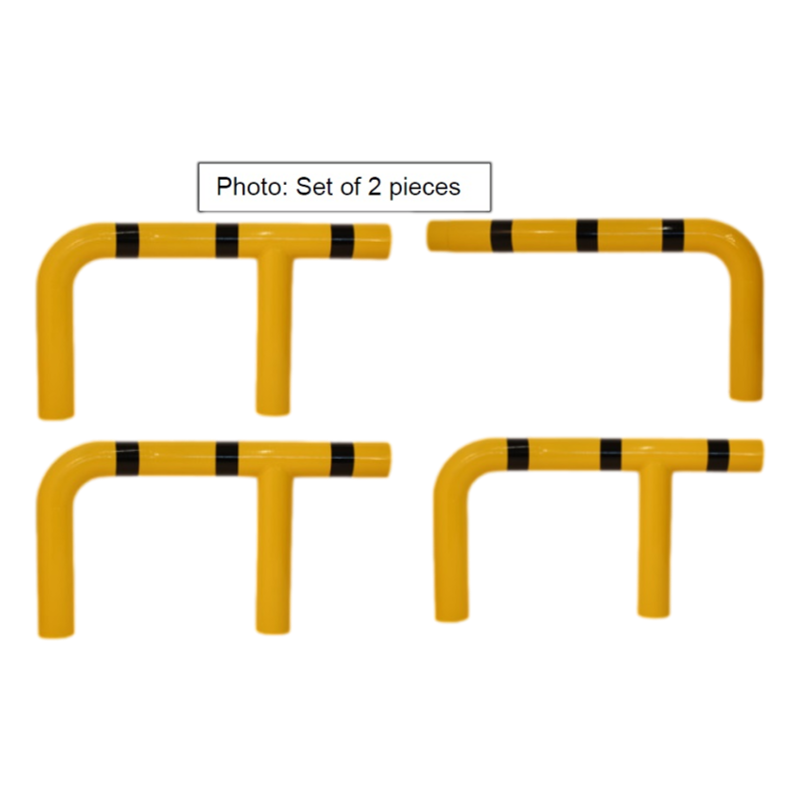

- Complete set (right & left side – 4 barriers)
- Modular system for flexible installation
- High visibility safety markings
- TÜV-certified for safety compliance
- Suitable for indoor and outdoor use
- Designed for precise truck alignment

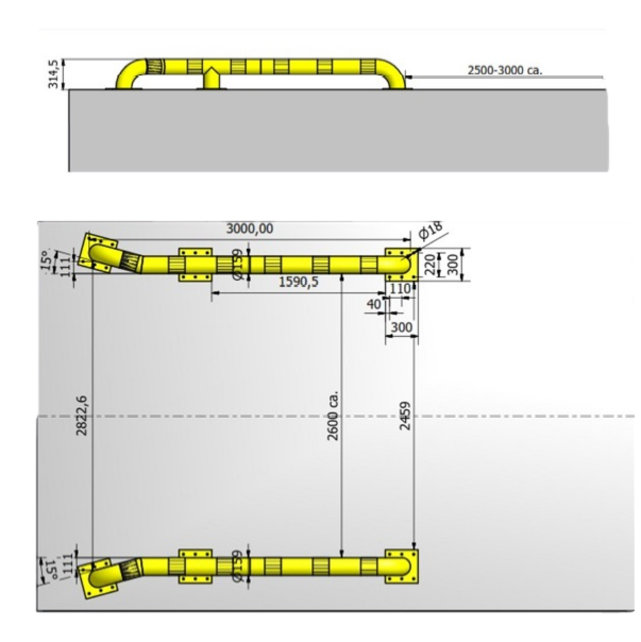

Technical Specifications
| Specification | Value |
|---|---|
| Total Length | 3000 mm |
| Single Barrier Length | 1500 mm |
| Height (Above Ground) | 305 mm (approx. 314.5 mm) |
| Width | 300 mm |
| Diameter | Ø 159 mm |
| Material Thickness | 4.5 mm |
| Material | Galvanized + powder-coated steel |

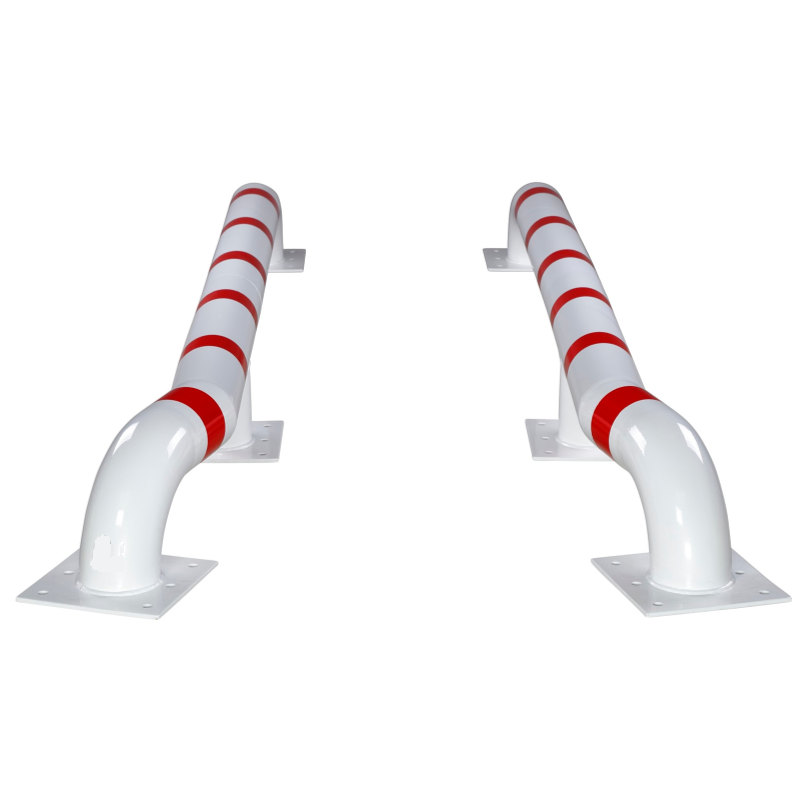

| Colors | Yellow/Black or Red/White |
Mounting Options
Ground Mounting Models
- Base Plate: 300 × 300 × 10 mm
- Boreholes: 6 × Ø 18 mm per plate
- Weight: 150 kg
- Models: SBWGYB3G / SBWGRW3G

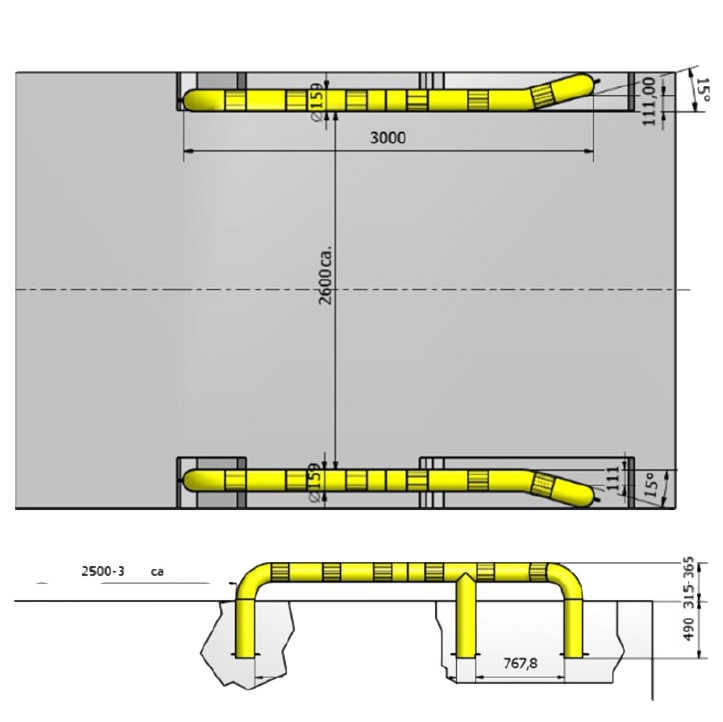

Concrete Mounting Models
- Depth Below Ground: 550 mm
- Weight: 186 kg
- Models: SBWGYB3UG / SBWGRW3UG
Construction Details
- Heavy-duty steel structure Ø159 mm
- Galvanized for corrosion resistance
- Powder-coated for visibility and durability
- Modular design for easy installation and replacement
- Designed for floor mounting or concrete embedding
Standard Delivery
- Set of 4 barriers (right & left side)
- Modular components for 3000 mm total length
Applications
- Loading docks and ramps
- Warehouses and logistics centers
- Distribution hubs
- Industrial facilities
Advantages
- Ensures accurate truck positioning
- Protects buildings and dock equipment
- Reduces risk of accidents and damage
- Durable and weather-resistant
- Flexible installation options
Contact Us for a Quote or Consultation
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Improve docking safety and protect your infrastructure with the SALESBRIDGES truck wheel guide system. Request your quote today.
