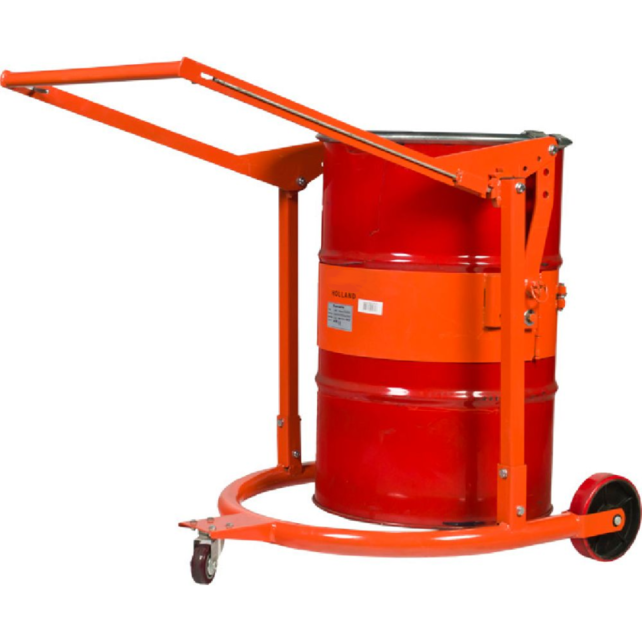

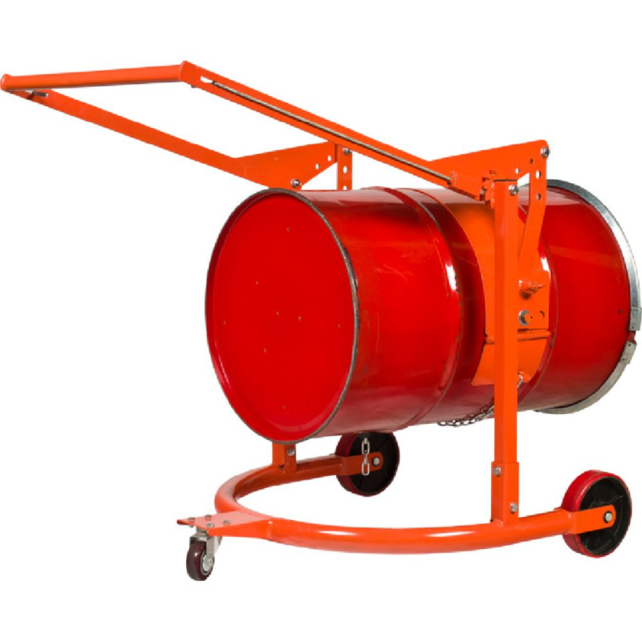

Trolley for Steel Drum 55 Gallons Lift and Turn with Pneumatic Spring,
Salesbridges Mobile-Karrier, with Pneumatic Spring, Capacity: 365kg, lifting height (vertical): 180mm, lifting height (horizontal): 457mm, Suitable for steel drum Φ572- 600mm (55 gallon) -Yellow RAL1028- CE Certified
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Trolley for Steel Drum 55 Gallons Lift and Turn
Efficient Drum Lifting, Transport, and Rotation
A truly quality-built drum handler, this mobile karrier is designed to raise, transport, rotate, tilt, and drain fully loaded 55-gallon steel drums with ease. It is ideal for industrial applications requiring safe and efficient drum movement while maintaining operator control throughout handling.
Secure Locking and Versatile Drum Positioning
The trolley carries the full weight of the drum and features dual fingertip-operated locks to secure the raised drum safely. It can lock the drum in a vertical position to help avoid spills or in a horizontal position for draining through a faucet. When unlocked, the drum can be turned end-over-end to agitate contents or tipped and manually held at different angles as needed. It is shipped partly disassembled to help reduce freight costs.
Key Features
- Raises, transports, rotates, tilts, and drains fully loaded steel drums
- Dual fingertip-operated locks for safer drum positioning
- Locks in vertical position to reduce spill risk

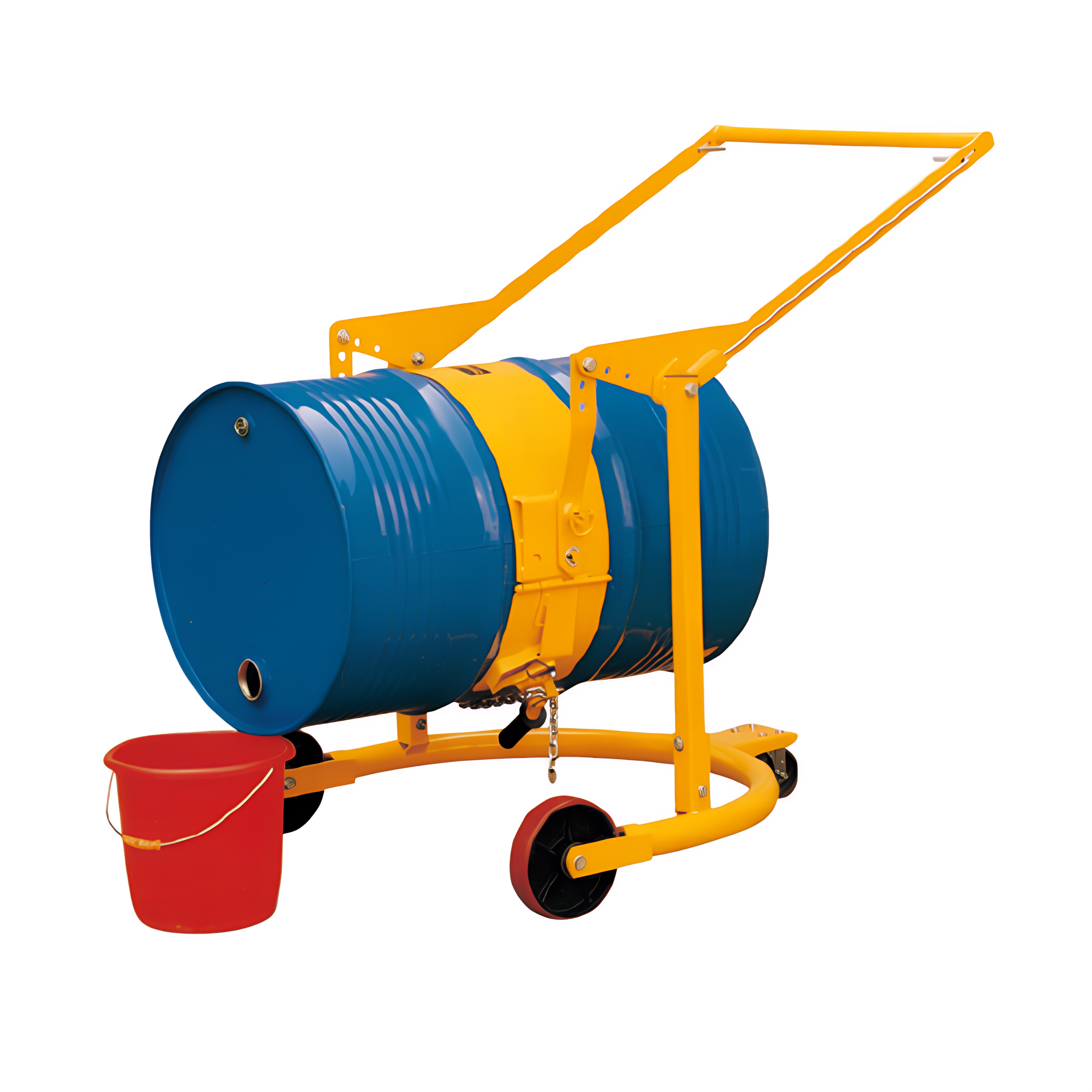

- Locks in horizontal position for convenient draining
- Allows end-over-end rotation and manual angle positioning for content agitation
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 365 kg / 800 lbs |
| Lifting Height (Vertical) | 180 mm |
| Lifting Height (Horizontal) | 457 mm |
| Suitable Drum Size | Steel Drum, 572–600 mm diameter, 55 gallon |
| Operation | Manual Operation, 90°–180° |
| Leg Width (Inside) | 750 mm |
| Diameter of Front Wheel | 180 mm |
| Diameter of Steering Wheel | 75 mm |

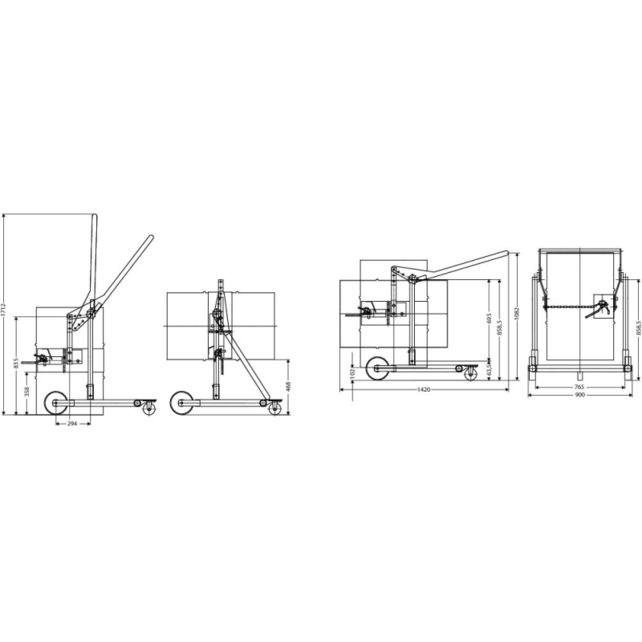

| Overall Dimension | 940 x 885 x 1180 mm |
| Net Weight | 42 kg |
Standard Delivery
- 1 x Trolley for Steel Drum 55 Gallons Lift and Turn
- Partly disassembled unit for reduced freight cost
- Standard assembly components
