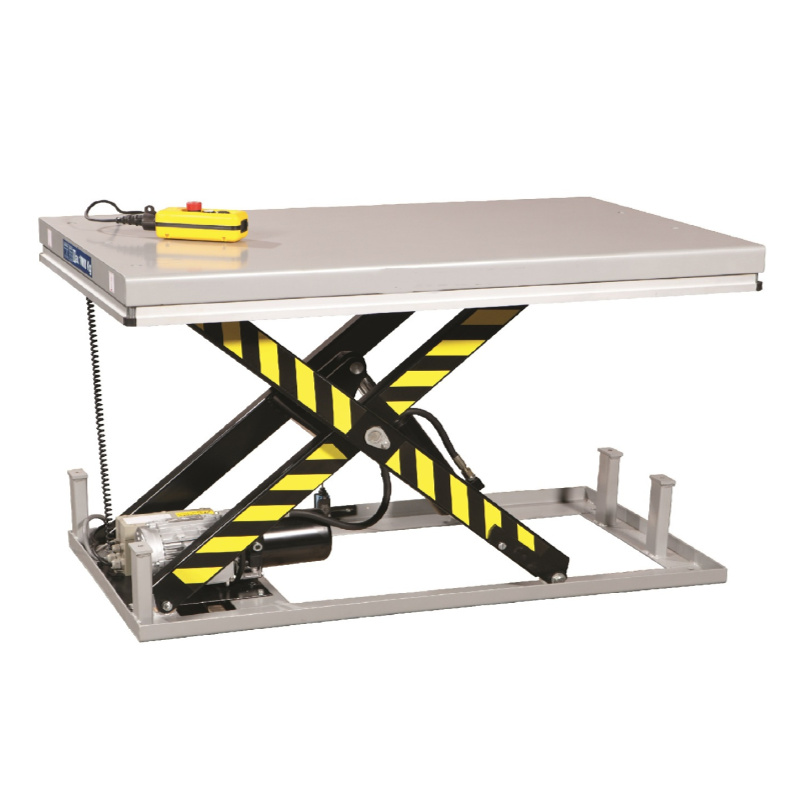

Stationary Lifting Table 4000 Kg - Electric Platform 2000 mm x 1200 mm
Robust stationary lift table with 4000 kg capacity and 2000 x 1200 mm platform. Equipped with maintenance-free pivot bushings, safety valve, internal drainage, and overload valve. Low-noise power pack, adjustable stop, and EN1570-1 compliant. 380V/50Hz, 2
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Stationary Lifting Table 4000 Kg - Electric Platform 2000 mm x 1200 mm
Feature:
-
Maintenance-free pivot bushings.
-
There is a large safety clearance between the scissors to avoid injuries.
-
Lift cylinder with internal drainage.
-
Safety valve to ensure safety in case of a hose burst.
-
Moveable limit switch for adjusting the full raised stop.
-
4 end-stops, incl. 4 loops which can be used e.g. when lifting a total lift table into a pit.
-
Low-noise power pack with built-in overload valve.
-
Cable for 3-phase 380V/16Ah*.
-
Approves to EN1570-1.
| Technical specifications | Lift table |
|---|---|
| Art.no | HW4002 |
| Load capacity | 4000 kg |
| Lifting height | 240 - 1050 mm |
| Stroke length | 810 mm |
| Platform size (LxW) | 2000 x 1200 mm |
| Base frame size (LxW) | 1600 x 930 mm |
| Lifting time to max height | 25-30 s |
| Lift motor | 380V / 50HZ 2,2 kW |
| 3-Phase (380V/16Amp) | |
| Own weight | 405 kg |
| Brand | Salesbridges |
| Article code | SBHW4002 |
| SKU | SBHW4002 |
