SR Electric Chain Hoist 230/24 V
SR 230 V electric chain hoists are available in several designs and they have the same advantages as standard 400V models i.e. safety slip clutch/brake assembly, low construc-tional height etc. For the 1-phase connection, wire having a minimum cross-secti
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

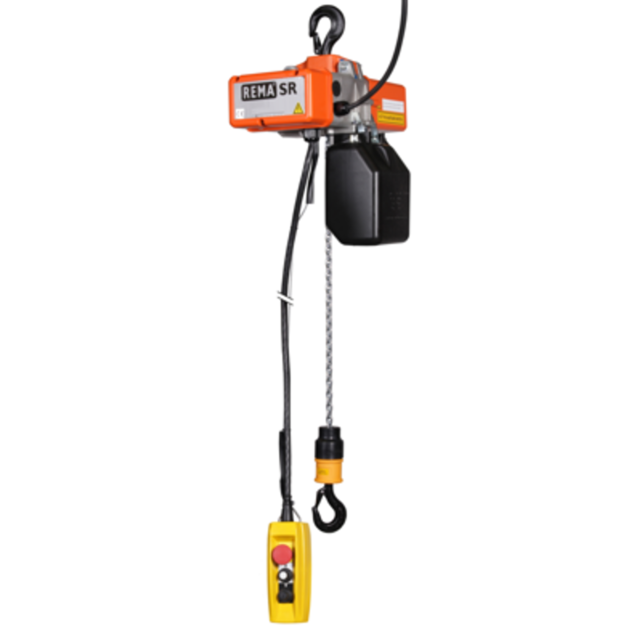

SR 24V Low Voltage Control Electric Chain Hoist - 3m Lifting Height, CE-Marked
The SR 24V low voltage control electric chain hoist is a safe and efficient lifting solution for workshops, maintenance areas, and industrial applications. Designed with 24VAC push-button control, integrated limit switches, and a compact chain bag, it offers reliable lifting performance with enhanced operator safety.
Key Features
- 24V low voltage control for safer operation
- Standard 3 m lifting height
- 1.8 m control cable with 24VAC push-buttons
- Includes limit switches
- Supplied with chain bag
- CE-marked according to standard
- Trolley not included
- Optional radio remote control and trolley solutions available
Technical Specifications
| Lifting Height | 3 m |
| Control Cable | 1.8 m |
| Power Cable | 1 m |
| Control Voltage | 24VAC |
| Marking | CE-marked |
| Standards | EN 12100, EN 14492, EN 818-7 |
| Additional | Includes limit switches, chain bag, trolley not included |

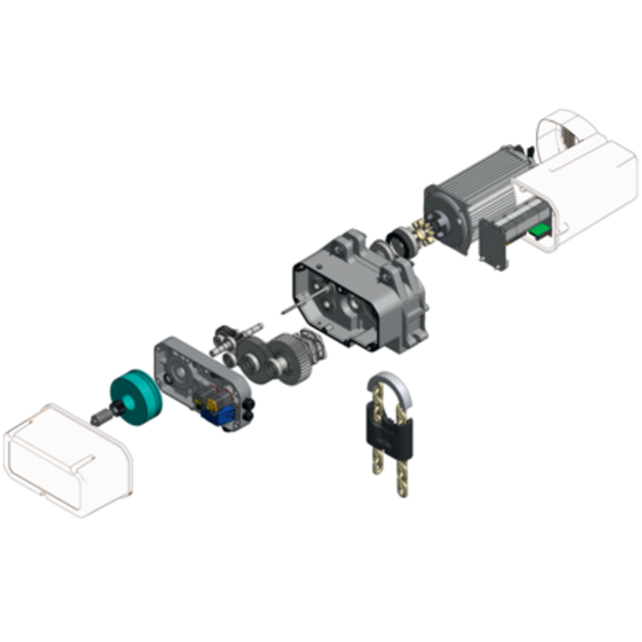

Construction & Details
- Designed with 24VAC low voltage push-button control for improved user safety
- Includes limit switches for controlled lifting operation
- Supplied with chain bag for organized chain management
- CE-marked according to applicable standards
- Suitable for professional industrial and workshop lifting tasks
- Thermal overload protection available as an option
- Compatible with push or electric trolley configurations
Standard Delivery
- SR 24V low voltage control electric chain hoist
- 3 m lifting height
- 1.8 m control cable with push-buttons 24VAC
- Limit switches
- 1 m power cable
- Chain bag
- Trolley not included
Applications
- Workshop lifting operations
- Industrial material handling
- Maintenance and service tasks
- Production and assembly support
Advantages
- Safer operation with low voltage control
- Ready for use with standard lifting accessories included
- Flexible configuration for different lifting requirements
- Reliable and practical solution for professional environments
Optional / Variants
- Other hoisting heights
- Other operating heights
- Larger chain bag
- Radio remote control
- Thermal protection against electrical overload
- Push trolley
- Electric trolley
Origin
- Origin EU
Contact Us
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
| Brand | Salesbridges |
| Article code | SB0801202 |
| SKU | SB0801202 |
| EAN | 9505676467672 |
