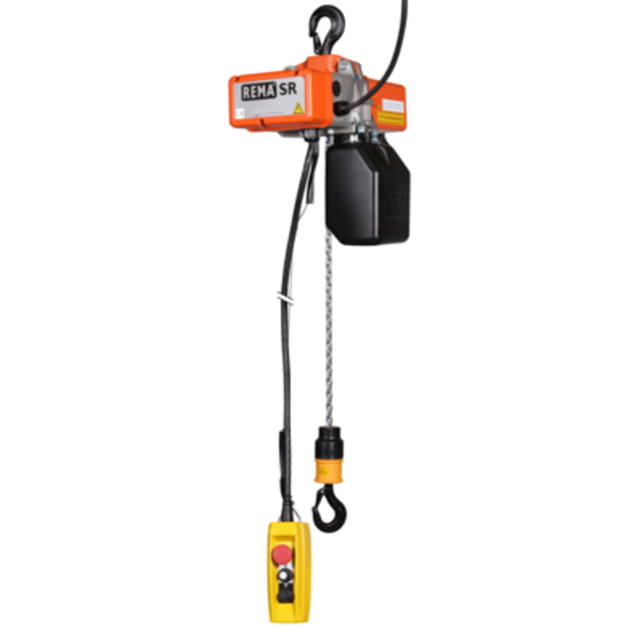

SR 24V low voltage control electric chain hoist
SR is technically advanced electric chain hoist with the most important advantages being the very high duty cycle and modular construction.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
SR 24V Low Voltage Control Electric Chain Hoist - 3m Lift, CE-Marked
The SR 24V low voltage control electric chain hoist is a reliable lifting solution designed for safe and efficient material handling in industrial and workshop environments. With low-voltage control, thermal overload protection, and a compact chain container, it offers dependable operation for professional lifting applications.
Key Features
- 24V low voltage control for safer operation
- Standard 3 m lifting height
- Thermal overload protection
- 1.8 m control height
- Includes chain container
- 1 m power cable
- CE-marked according to standard
- Push or electric trolley available as option
Technical Specifications
| Additional | 3 m lifting height (max distance between top and bottom hook); 1.8 m control height; 1 m power cable; chain container; trolley not included; thermal overload protection; CE-marked; compliant with EN 12100, EN 14492, EN 818-7 |
Construction & Details
- Designed with 24V low voltage control for improved operator safety
- Equipped with thermal overload protection for safer use
- Supplied with chain container for organized chain storage
- Standard lifting height is 3 m
- Control height is 1.8 m
- Model 110/111 is supplied with one-hole suspension plate
- Suitable for professional lifting applications in industrial environments
- Manufactured in accordance with relevant CE and safety standards
Standard Delivery
- SR 24V low voltage control electric chain hoist
- 3 m lifting height
- 1.8 m control height
- 1 m power cable
- Chain container
- Trolley not included
Applications
- Workshop lifting operations
- Industrial material handling
- Maintenance and service tasks
- Assembly and production support
Advantages
- Safer operation with 24V low voltage control
- Built-in thermal overload protection
- Compact and practical chain storage
- Flexible configuration with multiple optional upgrades
Optional / Variants
- Higher lifting heights
- Higher control heights
- Larger capacity chain containers
- Other operating voltages and frequencies
- Cordless remote control
- Push trolley
- Electric trolley
Origin
- Made in EU
Contact Us
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
| Brand | Salesbridges |
| Article code | SB0851000 |
| SKU | SB0851000 |
| EAN | 9504572864325 |
