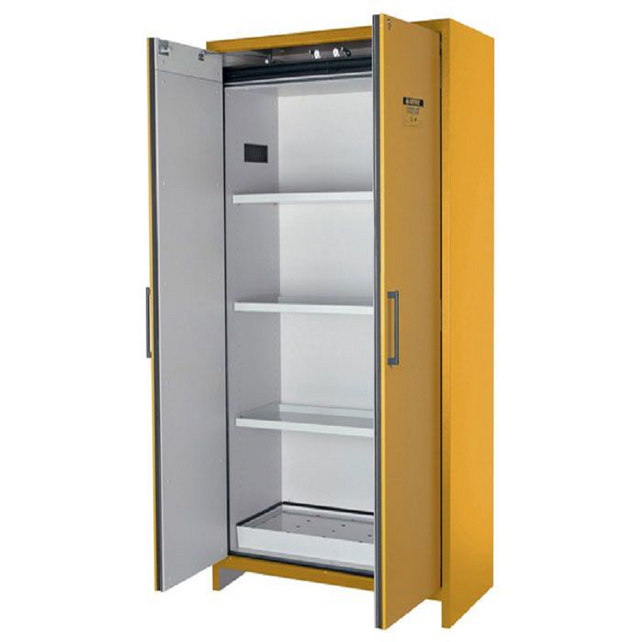

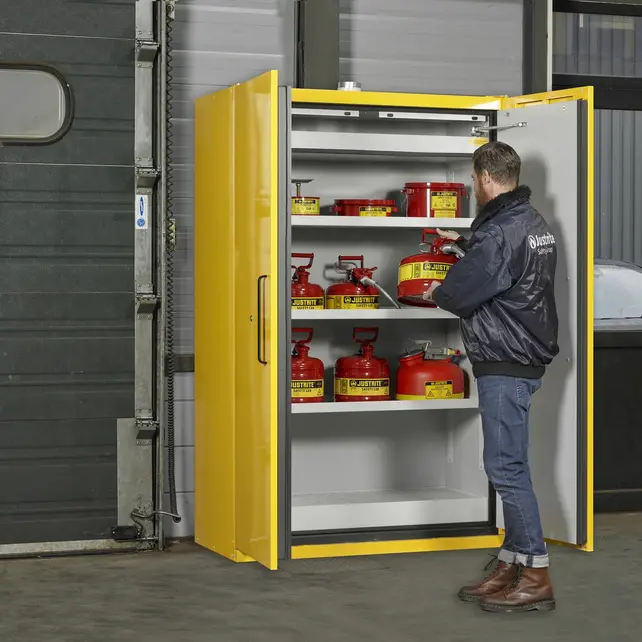

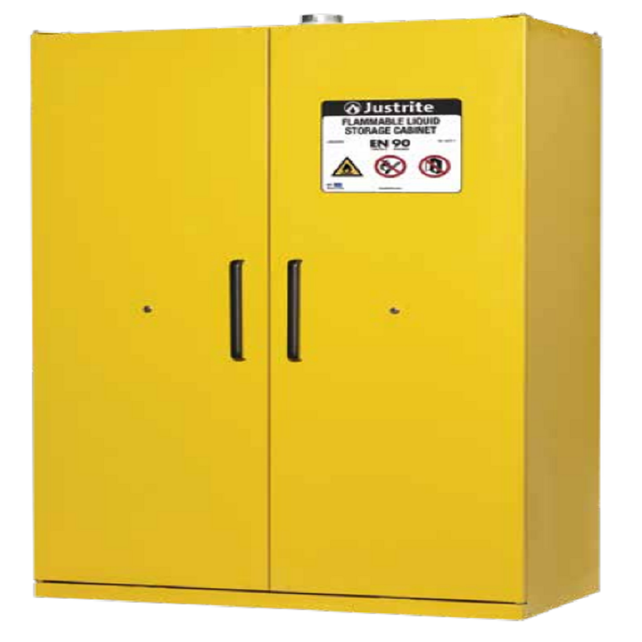

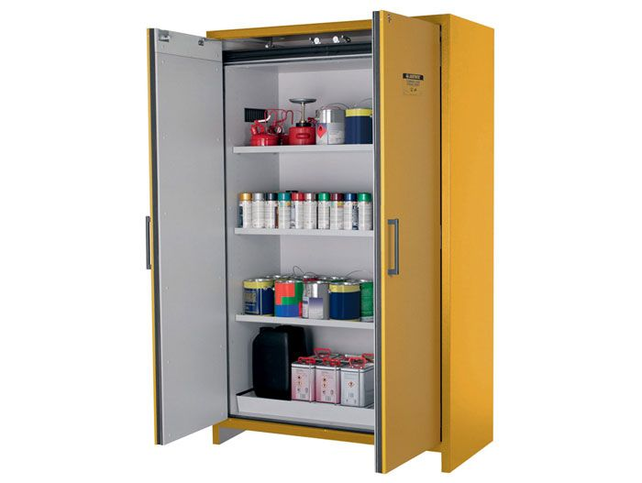

Safety Cabinets 90 Minutes 207 x 120 cm safety cabinet for flammable liquids
Self door closure when the temperature exceeds 122°F (50°C). Extreme fire resistance for high risk environments, providing 90-minutes of content protection and extended evacuation time. Storage capacity of 45 gal (220l) of flammable liquids.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Safety Cabinet – 90-Minute Fire Resistance
Premium Flammable Liquid Storage | FM Approved | Made in USA
Maximum Protection for High-Risk Environments
The 90-Minute Fire Rated Safety Cabinet, offered by Salesbridges, provides exceptional fire protection for flammable liquids and hazardous materials. Designed for demanding industrial applications, this cabinet ensures extended evacuation time and superior safety performance in case of fire.
Key Features
- Fire resistance: 90 minutes
- Capacity: 45 Gallon (≈220 Liters)
- Heavy-duty steel construction (1–1.5 mm thickness)
- Fire-resistant core:
- Rock wool fiber
- Calcium sulfate panels
- Intumescent sealing strips:
- Expand during fire to block heat and flames
- Hybrid automatic closing doors
- 3 adjustable shelves (75 kg per shelf)
- Spill-retaining shelf design (1-inch ledge)
- Acid-resistant epoxy-coated finish
- Dual vents with automatic butterfly valves
- Integrated transport base for easy handling
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 45 Gallon / 220 Liters |
| Fire Resistance | 90 minutes |
| Dimensions | 1200 × 2070 mm |
| Weight | 365 kg |
| Doors | 2 |
| Shelves | 3 (adjustable) |
| Shelf Capacity | 75 kg per shelf |
| Color | Yellow |
| Auto Door Closing Temp | 50°C (122°F) |
| Vent Closure Temp | 70°C (158°F) |
| Compliance | OSHA, NFPA 30 |
| Approval | FM Approved |
| Origin | Made in USA |
Construction & Design
- Multi-layer fire-resistant structure
- Durable steel body with insulated core
- Chemical-resistant epoxy coating
- Industrial-grade hinges and locking system
Safety Features
- 90-minute fire protection
- Intumescent door seals (expand under heat)
- Automatic door closure system
- Vent closure valves activated by heat
- Leak containment system
- Reflective hazard labels (tri-lingual)
- Grounding and anti-static safety features
Functional Advantages
- Maximizes workplace safety
- Extends evacuation time in case of fire
- Ensures compliance with international safety standards
- Durable and long-lasting construction
- Secure and organized chemical storage
Additional Benefits
- Cylinder locks with red/green indicators
- Integrated transport base (optional cover available)
- 10-year manufacturer warranty
- Highly visible warning labels
Applications
- Chemical storage facilities
- Industrial plants
- Warehouses and logistics centers
- Laboratories
- Oil & gas and manufacturing sectors
Advantages
- Industry-leading 90-minute fire resistance
- FM Approved & OSHA/NFPA compliant
- Advanced automatic safety systems
- High durability and corrosion resistance
- Long warranty and proven reliability
Contact Us for Orders & Consultation
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Protect your facility with premium fire-rated safety solutions from Salesbridges. Contact us today for pricing and availability.
| Brand | Salesbridges |
| Article code | SB22609 |
| SKU | SB22609 |
| EAN | 9507415991592 |
