Roll container trolley for plastic crates Rollbox series 1 column

Create your own review

Price on request

Rolling cart trolley for plastic crates from Salesbridges. Suitable for stacking crates L60xW40xH22cm. Loading capacity 300Kg, 5 year warranty. Made in France

In stock

Produced to order, ready in 4-6 weeks

Quantity

- +

Price on request

Add to wishlist

Excellent quality
Large product range
Smart sollutions
More information? Contact us about this product
Add to comparison list

Product description

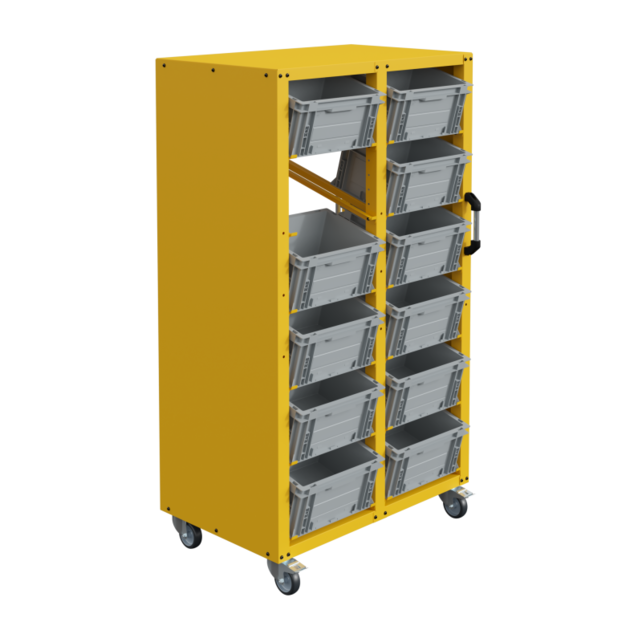

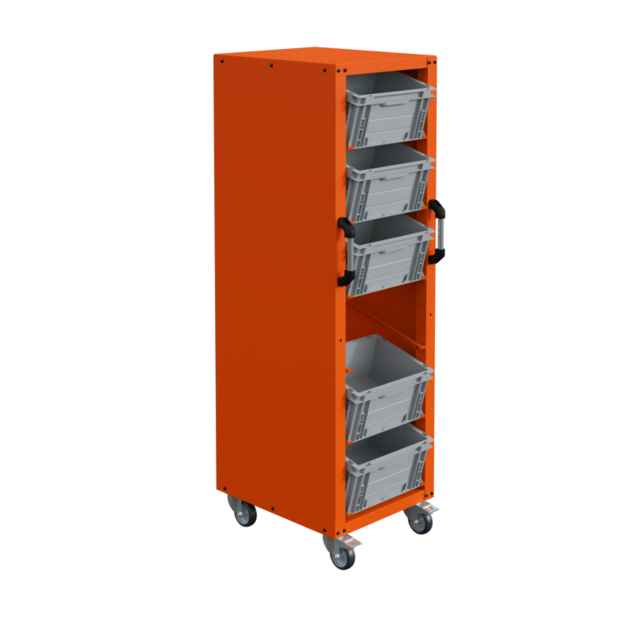

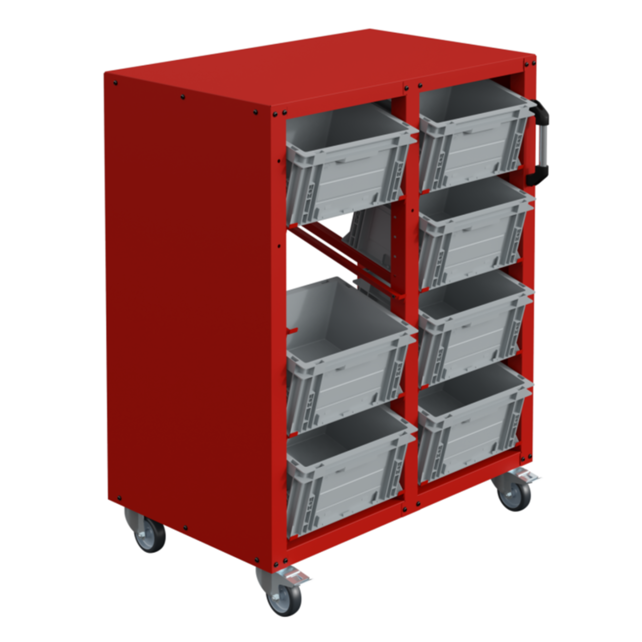

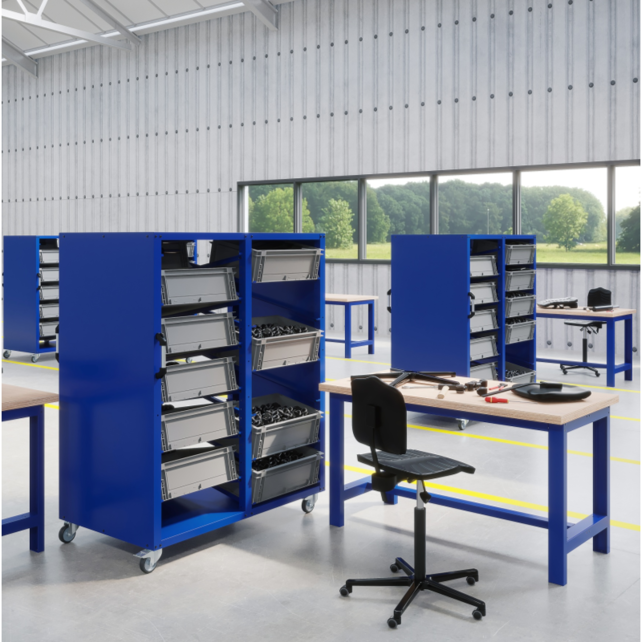

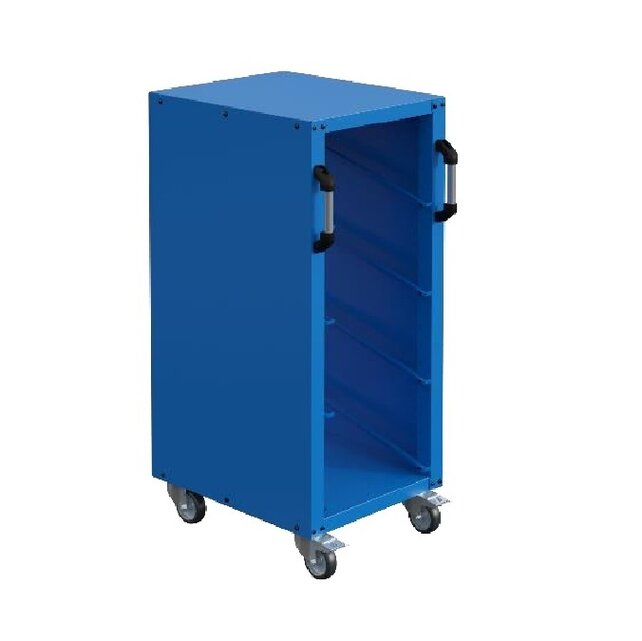

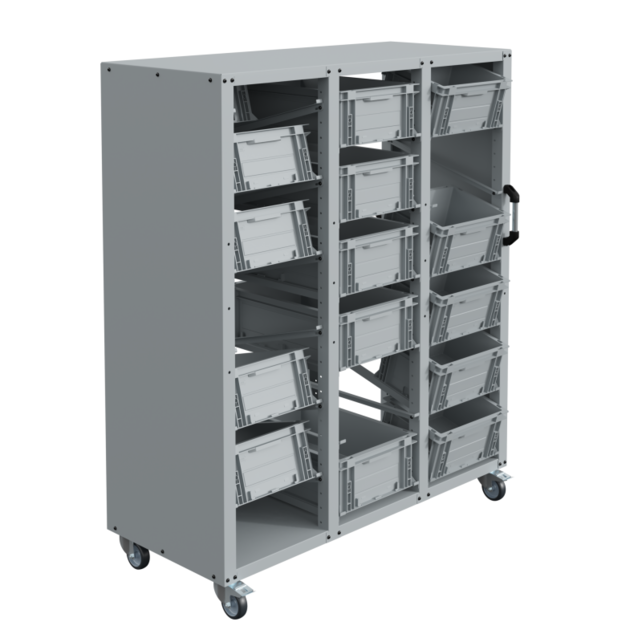

Roll Container Trolley for Plastic Crates – Rollbox Series

Flexible Multi-Column Crate Handling System

The Rollbox Series is a practical and durable roll container trolley designed for transporting and organizing plastic crates in warehouses, production areas, food handling environments, and logistics operations. It is available in 1, 2, or 3-column versions with 4 or 6 levels, allowing storage for 4 to 24 crates in 60 x 40 cm format.

Ergonomic and Adjustable for Efficient Loading

This trolley is built for easy and ergonomic loading and unloading. The container support rails can be adjusted with forward and backward tilt positions of 0°, 5°, 10°, and 15°, while level heights can be adjusted in 50 mm steps. Its strong steel frame, epoxy powder-coated finish, and non-marking castors make it ideal for daily industrial use.

Key Features

Available in 1, 2, or 3-column models with 4 or 6 levels
Adjustable support rails with 0°, 5°, 10°, and 15° tilt
Suitable for 60 x 40 cm and 40 x 30 cm crates
Strong folded sheet steel construction with epoxy powder coating
300 kg load capacity, upgradeable to 500 kg on selected models

Technical Specifications

Specification	Value
Load Capacity	300 kg
Maximum Load Capacity	500 kg with 2 additional castors on 2 and 3-column models
Suitable Crate Sizes	60 x 40 cm or 40 x 30 cm
Height Adjustment	50 mm steps
Rail Tilt Adjustment	0°, 5°, 10°, 15° forward and backward
Frame Material	Folded sheet steel, thickness 10/10th
Base Material	Folded sheet steel 20/10th and 10/10th
Finish	Epoxy powder coating, oven polymerized at 180°C
Castors	4 swivel castors with plate, 2 with locks
Wheel Material	Thermoplastic rubber, grey non-marking
Wheel Diameter	100 mm
Handles	Supplied with 2 handles
Delivery	Supplied flat packed, mounting with screws

Available Models

P/N	Width (mm)	Depth (mm)	Height (mm)	Model
SBRB0020	510	610	1235	1 column, 4 levels – 4 containers 60 x 40 cm
SBRB0021	970	610	1235	2 columns, 4 levels – 8 containers 60 x 40 cm
SBRB0022	1430	610	1235	3 columns, 4 levels – 12 containers 60 x 40 cm
SBRB0023	510	610	1725	1 column, 6 levels – 6 containers 60 x 40 cm
SBRB0024	970	610	1725	2 columns, 6 levels – 12 containers 60 x 40 cm
SBRB0025	1430	610	1725	3 columns, 6 levels – 18 containers 60 x 40 cm
SBRB0026	710	810	1235	1 column, 4 levels – 8 containers 60 x 40 cm
SBRB0027	1370	810	1235	2 columns, 4 levels – 16 containers 60 x 40 cm
SBRB0028	710	810	1725	1 column, 6 levels – 12 containers 60 x 40 cm
SBRB0029	1370	810	1725	2 columns, 6 levels – 24 containers 60 x 40 cm

Standard Delivery

Rollbox frame supplied flat packed
4 swivel castors, 2 with locks
2 handles

P/N	Width (mm)	Depth (mm)	Height (mm)	Model
SBRB0020	510	610	1235	1 column 4 levels - 4 containers 60x40cm
SBRB0021	970	610	1235	2 columns 4 levels - 8 containers 60x40cm
SBRB0022	1430	610	1235	3 columns 4 levels - 12 containers 60x40cm
SBRB0023	510	610	1725	1 column 6 levels - 6 containers 60x40cm
SBRB0024	970	610	1725	2 columns 6 levels - 12 containers 60x40cm
SBRB0025	1430	610	1725	3 columns 6 levels - 18 containers 60x40cm
SBRB0026	710	810	1235	1 column 4 levels - 8 containers 60x40cm
SBRB0027	1370	810	1235	2 columns 4 levels - 16 containers 60x40cm
SBRB0028	710	810	1725	1 column 6 levels - 12 containers 60x40cm
SBRB0029	1370	810	1725	2 columns 6 levels - 24 containers 60x40cm
