Crane Jib LA / LAT Forklift Loading Arm – Extend Reach Forklift Attachment
Origin: Germany

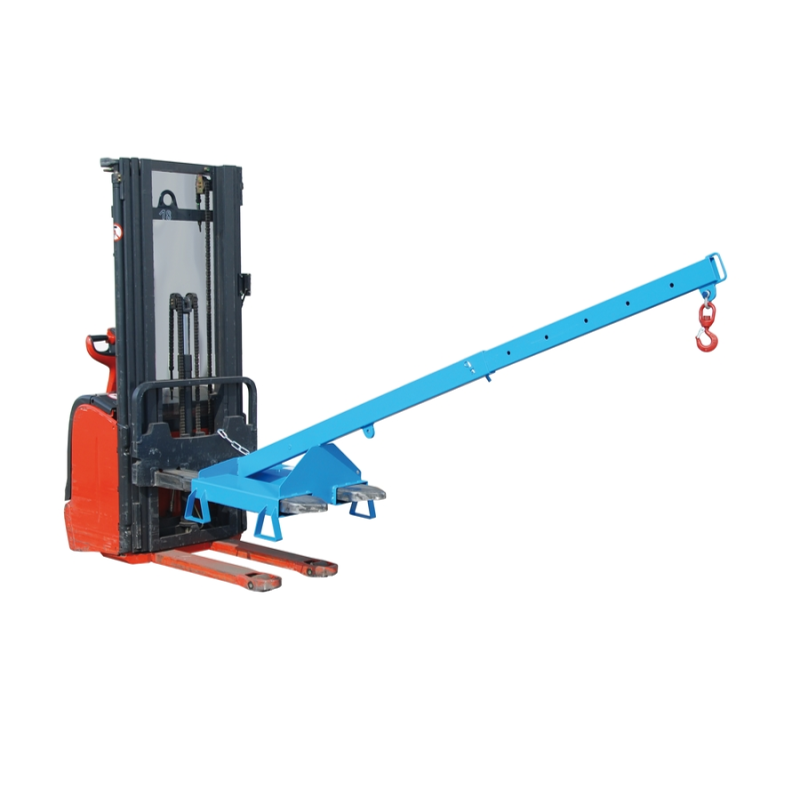

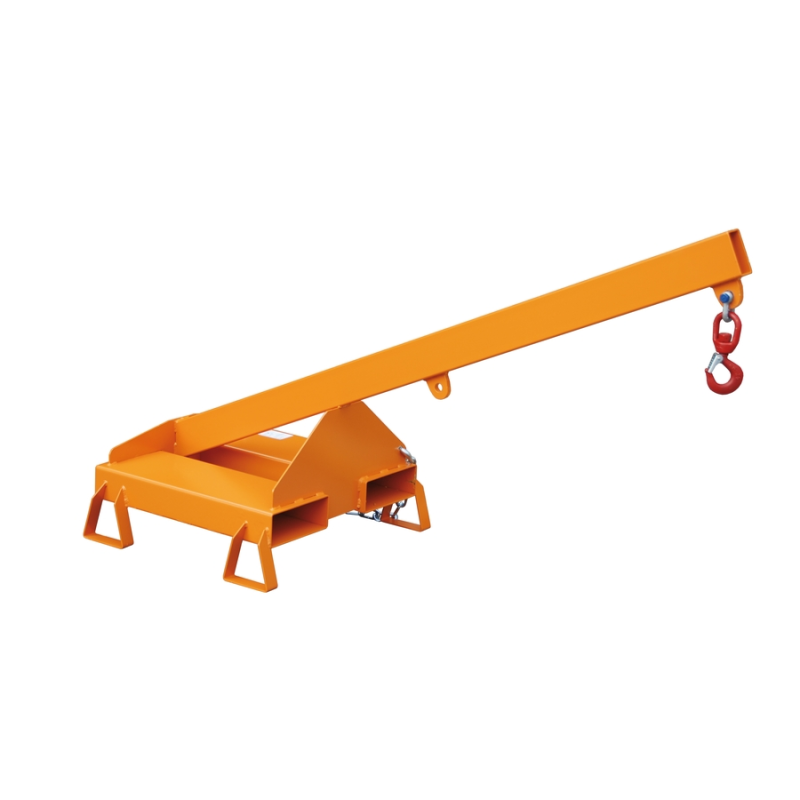

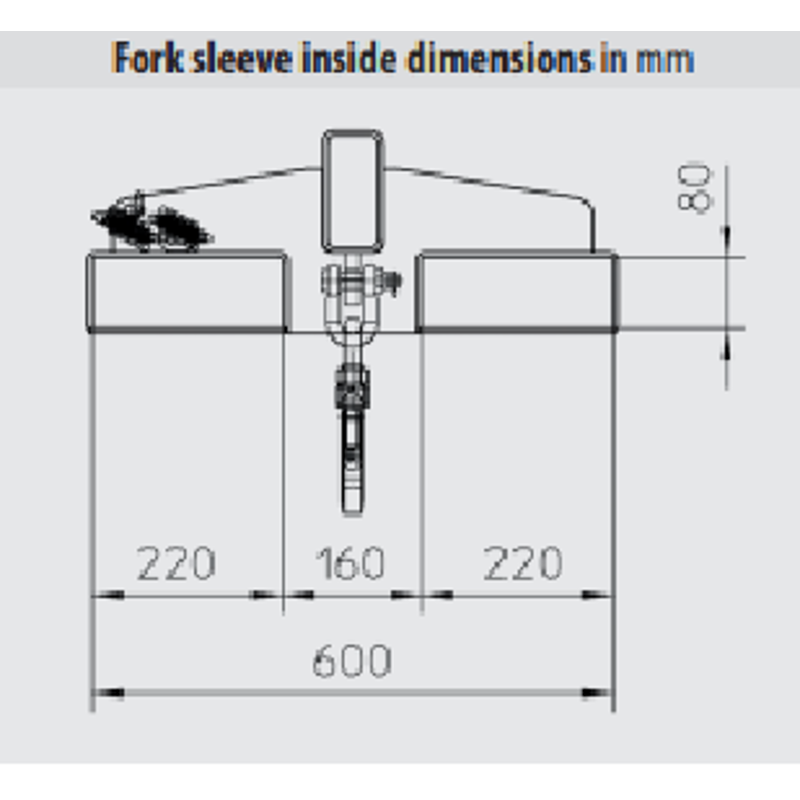

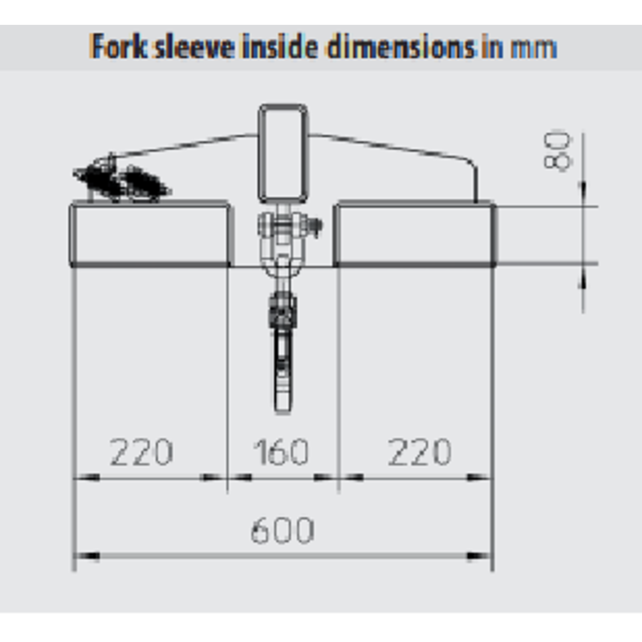

The LA / LAT Loading Arm transforms your forklift into a mobile crane, extending reach safely and efficiently. Built from robust steel with fork sleeves and a swivel hook, it offers both fixed and adjustable options, with the LAT variant providing a 25° tilt and pin-lock positions. Supports up to 5 t and comes in various reach options.
Key Features
-
Extends forklift reach for lifting and loading
-
Steel construction with forklift and straddle stacker compatibility
-

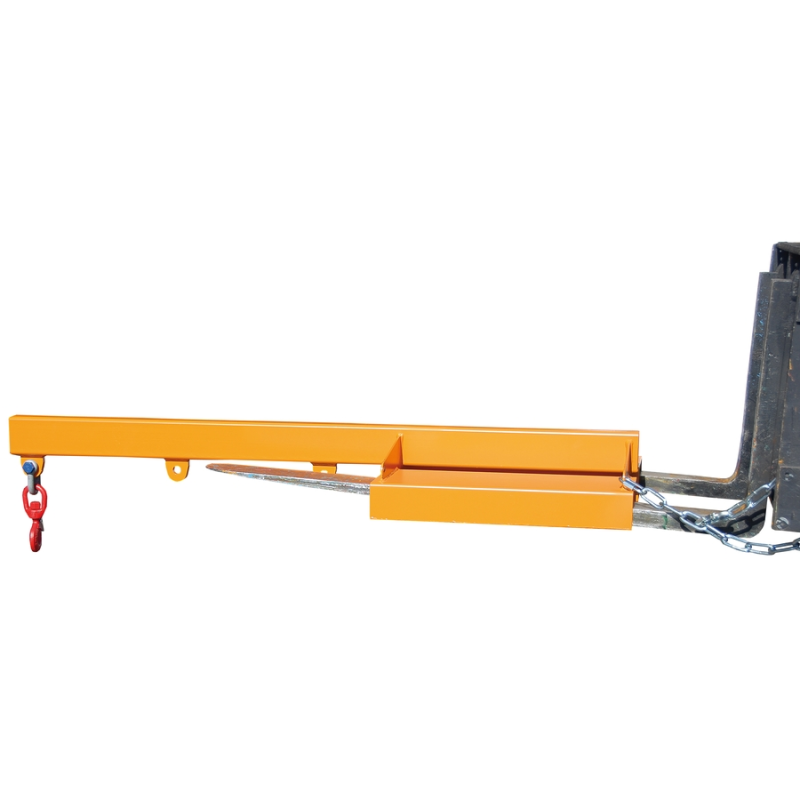

Secure chain anchor to prevent sliding
-
Includes 1 swivel load hook
-
LAT model features 25° tilt, telescopic segments, and support legs
-

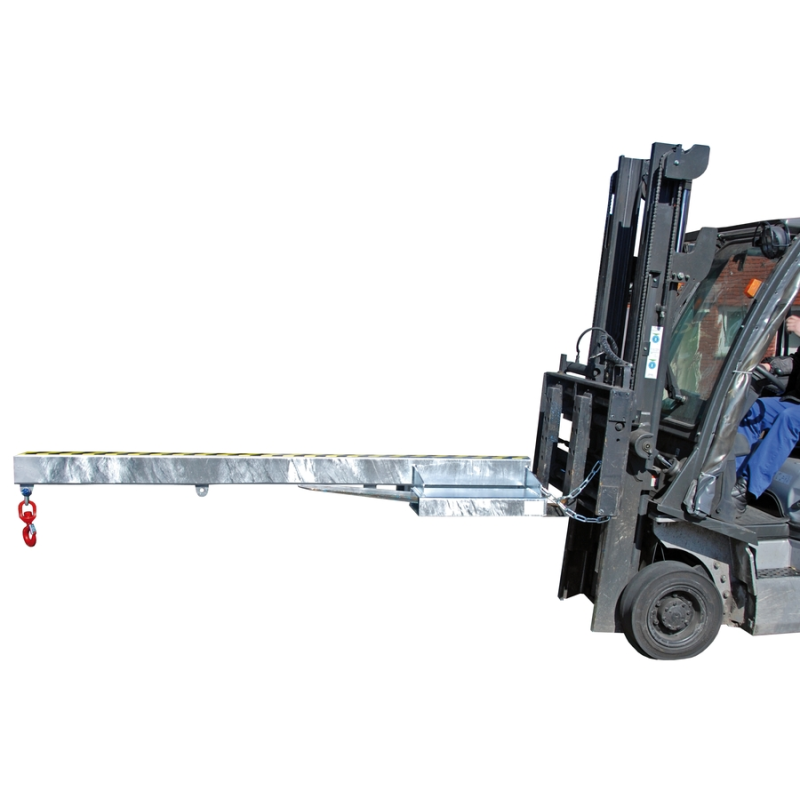

Available in painted or hot-dip galvanized finishes (5 color options)
Models & Technical Specs
| Model | Base Length (mm) | Extension Positions (mm) | WLLs (kg) | Weight (paint/galv, kg) |
|---|---|---|---|---|
| LA 1600‑1.0 | 1600 | 780 / 1165 / 1550 | 1000 / 350 / 200 | 46 / 50 |
| LA 2400‑1.0 | 2400 | 780 / 1565 / 2350 | 1000 / 200 / 100 | 53 / 57 |
| LA 1600‑2.5 | 1600 | 780 / 1165 / 1550 | 2500 / 850 / 500 | 79 / 85 |
| LA 2400‑2.5 | 2400 | 780 / 1565 / 2350 | 2500 / 500 / 250 | 94 / 101 |
| LA 1600‑5.0 | 1600 | 780 / 1165 / 1550 | 5000 / 1700 / 1000 | 112 / 120 |
| LA 2400‑5.0 | 2400 | 780 / 1565 / 2350 | 5000 / 1000 / 500 | 132 / 142 |
| LA 25‑1.0 | 1600 | 875 / 1600 | 1000 / 300 | 51 / 54 |
| LAT 25‑1.0 | 1600 | 875 / 1600 / 1780 / 1960 / 2140 / 2320 / 2500 | 1000 / 300 / 225 / 200 / 175 / 150 / 125 | 62 / 67 |
WLL values represent maximum permitted loads at each extension
Applications
-
Ideal for lifting motors, machinery, and long items beyond standard forklift reach
-
Excellent for loading/unloading trucks and loading docks
-
LA models offer rigid simplicity; LAT adds tilt and adjustability
-
Useful in warehouses, workshops, and logistics centers
