Crane Jib 5 T for Forklift up to 3.6 meter Lifting Extendable Arm.

Create your own review

AED 24,000.00 Excl. tax

AED 25,200.00 Incl. tax

Telescopic arm 8 x extendable, 2 swivel hooks, when it comes to a safe and secure handling. Painted RAL or galvanised, other colours on request .

In stock

6-8 Weeks

Quantity

- +

Add to cart

Add to wishlist

Excellent quality
Large product range
Smart sollutions
More information? Contact us about this product
Add to comparison list

Product description

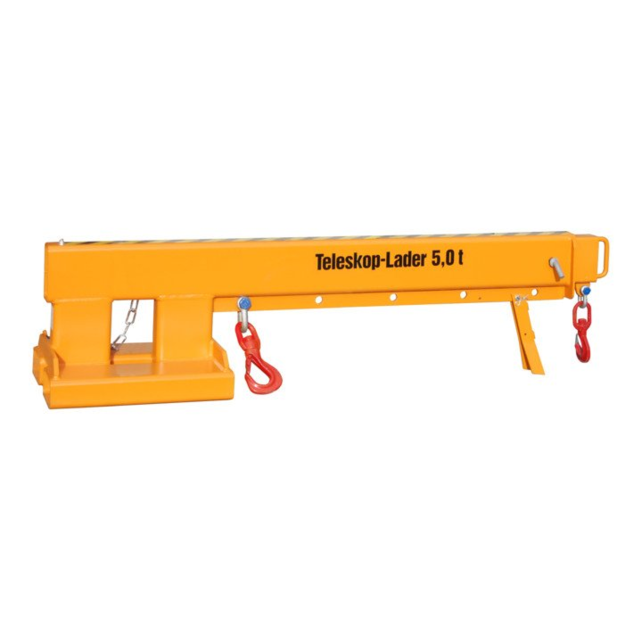

Crane Jib for Forklift 5 Ton - Extendable Arm up to 3.6 m, CE-Certified

The 5 Ton forklift crane jib is a heavy-duty lifting attachment designed to extend the reach of your forklift for safe and efficient suspended load handling. With a robust steel construction, extendable inner arm, and secure chain fixing, it is ideal for industrial lifting, maintenance, and material handling applications.

Key Features

Increases forklift reach for suspended lifting applications
Extendable arm with up to 14 possible positions
Inner extension arm extends in 8 steps
Secured by chain to prevent slipping
Stable and durable steel construction
Supplied with swivel hooks
CE certified load hook and D-closure
Designed for safe and reliable industrial use

Technical Specifications

Specification	Value
Length	2160 mm
Width	500 mm
Height	520 mm
Capacity	Up to 5000 kg
Weight	210 kg
Material	Steel
Color	Not specified
Reach / Arm Extension	Up to 3.6 m
Hook Type	Swivel hooks

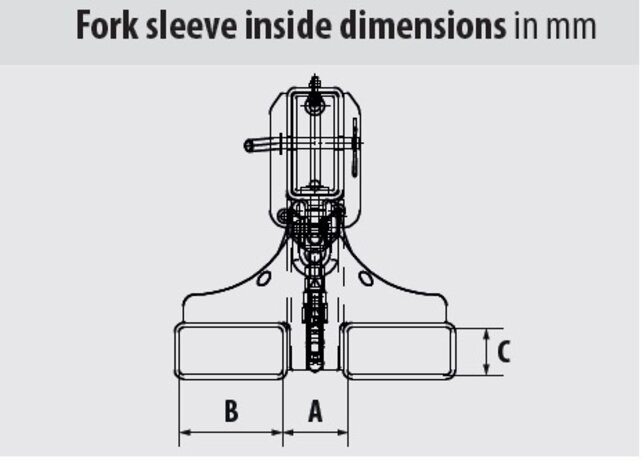

Fork Sleeve Dimensions	A: 166 mm / B: 184 mm / C: 84 mm
Additional	Extendable arm, 8 extension steps, 14 possible positions, chain-secured to prevent slipping, CE certified load hook and D-closure

Load Capacity by Position – 5 Ton Model

Position	P1	P2	P3	P4	P5	P6	P7	P8	P9	P10	P11	P12	P13	P14
Max Load (kg)	5000	3550	2750	2250	1950	1700	1550	1400	1300	1200	1150	1050	1000	950

P14 = full extension.

Construction & Details

Rigid and stable steel construction for demanding industrial use

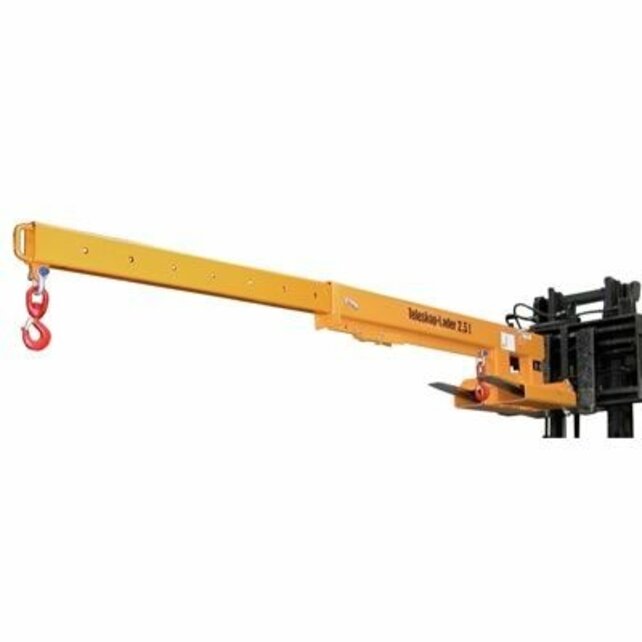

Crane jib is mounted on forklift forks and secured with chain to prevent slipping
Inner extension arm slides inside the outer shell and can be extended in 8 steps
Locking pin secures the arm in the selected position
Swivel hook design supports flexible load handling
Supplied with CE certified load hook and D-closure for safe lifting
Built for long service life and dependable lifting performance
Always check the residual load capacity of the forklift before use
