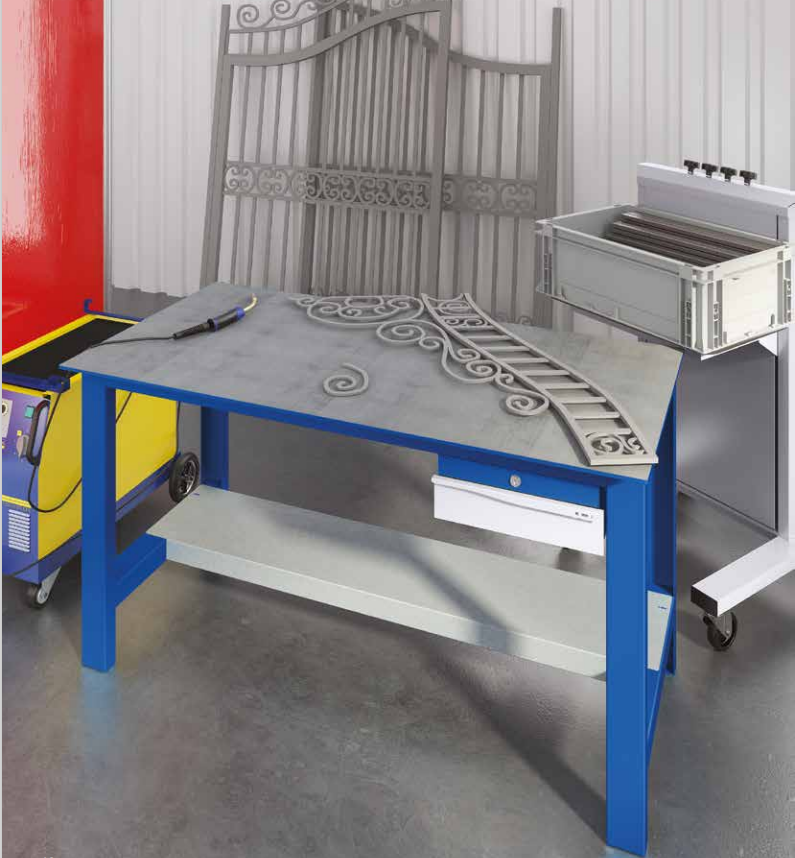

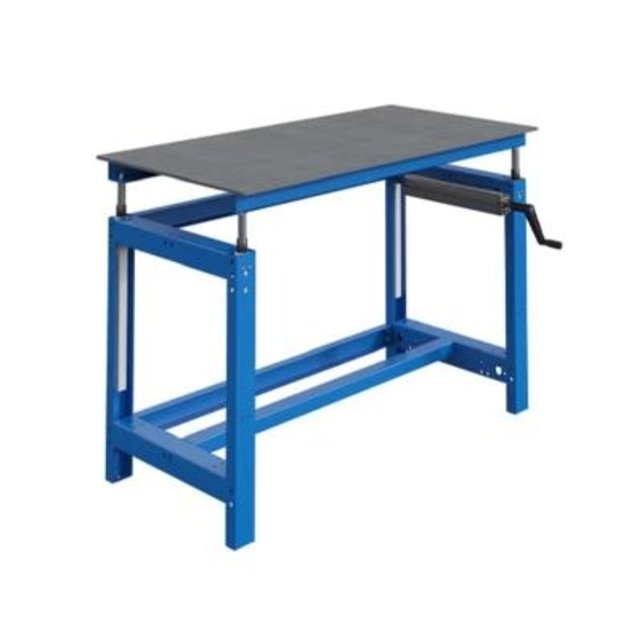

Welding worktable SI-model 1000 x 750 adjustable height by crank

Industrial Blue RAL5015

Welding table adjustable in height by crank steel plate load 300 kg - dimensions: L 1000 x D 750 x H 790 to 1090 mm

Welding is a unique task in the industrial manufacturing setting. It imposes major constraints in terms of safety, ergonomics, sturdiness and durability. Salesbridges can offer products to suit welding trades and meet their needs.

This crank lever adjustable version of the welding workbench enables accurate adjustment to the exact working height required. A set of 4 hydraulically-controlled columns are used to raise the frame and worktop assembly above the structure. This operating principle ensures extreme rigidity of the assembly at all height.

Strong, durable and stable workbench contribute to quality of work achieved by welder, structural metalworker, assembler, brazer

Description of the Worktable

• The frame is composed of a folded steel tube structure, thickness 25/10th.

• The frame is finished with epoxy powder paint, oven polymerized at 180°C

•  2 steel ladder feet 25/10th, folded in U, 80 x 42 mm.

• 2 beams under the top 40 x 50 x 80 mm.

• 3 steel spacers 25/10th, folded in U, 60 x 40 mm.

• Frame colors: Blue RAL 5015 or Gray RAL 7016.

•  A set of 4 hydraulically-controlled columns are used to raise the frame and worktop assembly above the structure.

• The product is designed in such a way that no screws or bolts are visible providing greater protection of users against possible injury

• Worktop made of steel

• Worktop thickness: 8 mm

• Worktop dimension L x W:  1000 x 750 mm

• Adjustable height outside the top: from 790 to 1090 mm.

• Characteristic of the worktop:

  Density 785 +/- 5% kg/m3
  Thickness tolerance +/- 0.5 mm
  Heat resistance = 800°C
  The edges are sanded, the edges are chamfered.

• Load Capacity: 1000 Kg

Structure and metal elements removable for orientation to the appropriate end-of-life channel (Recycling: potential 98% and/or Energy recovery: potential 2%) Recyclable cardboard packaging according to the sorting rules in place.

A Quality audit of our process is carried out each year by the FCBA as part of our NF Mobilier Technique label.

Made in France
