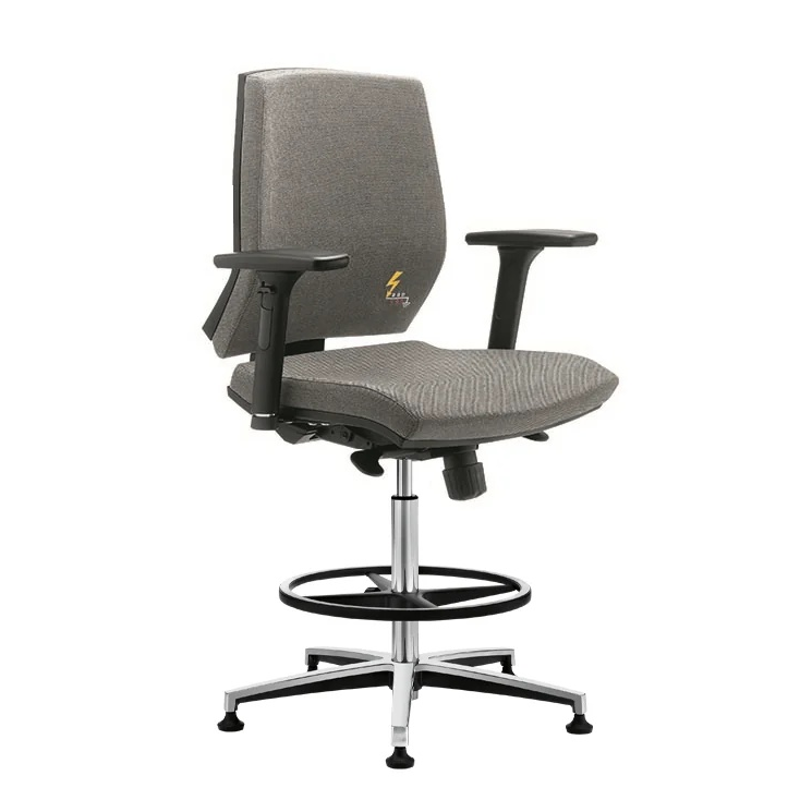

Ergonomic ESD -Certified Seating - With Footrest & Armrests
The Seats and Backrests, Made of Antistatic , Flame-Retardant, Seat Depth Adjustable. Height adjustment 550–740 mm including Footrest and Armrest.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
SALESBRIDGES Ergonomic ESD-Certified Seating for EPA Zones (IEC/EN 61340)
Upgrade your ESD-protected area with SALESBRIDGES ergonomic ESD seating, designed for environments sensitive to electrostatic discharge. Built for comfort, controlled charge dissipation, and industrial durability, this ESD chair range supports compliance in EPA workstations across electronics manufacturing, testing, and assembly.
Delivery available across the GCC (UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman).
- ESD-safe seating for EPA zones to help reduce electrostatic risks around sensitive components
- Ergonomic design with dynamic synchronous movement for better posture during long shifts
- Robust industrial construction for production floors, labs, and technical workstations
- Controlled dissipation via dissipative, antistatic materials and conductive mobility options
- Configurable options: height ranges, casters or glides, footrest, armrests, seat-depth adjustment
ESD-Safe Materials and Ergonomic Mechanism
- Seat + backrest: antistatic, dissipative, flame-retardant polypropylene
- Dynamic synchronous mechanism: coordinated movement of seat and backrest for active seating support
- Two height adjustment ranges (gas lift): to fit standard and high benches/workstations
ESD Compliance / Certifications
All models are tested and certified according to international ESD standards, including:
- IEC 61340-5-1
- IEC 61340-5-2
- IEC 61340-2-3
- EN 61340-2-1
- EIA IS 541 A
Technical Specifications
| Specification | Details |
|---|---|
| Seat material | Antistatic, dissipative, flame-retardant polypropylene |
| Seat dimensions | 470 mm (W) × 480 mm (D) |
| Backrest material | Dissipative polypropylene |
| Backrest dimensions | 400 mm (W) × 450 mm (H) |
| Seat height adjustment | Gas lift, 2 stroke options: 135 mm or 200 mm |
| Seat height range (135 mm stroke) | 440–570 mm |
| Seat height range (200 mm stroke) | 550–740 mm |
| Mechanism | Dynamic synchronous mechanism |
| Base | 5-star polished aluminum base, Ø 680 mm |
| Footrest (high versions) | Die-cast aluminum, satin epoxy finish, Ø 500 mm, height adjustable |
| Casters (option) | Conductive reinforced copolymer + steel, Ø 50 mm |
| Glides (option) | Conductive reinforced copolymer + steel, Ø 65 mm, height 40 mm |
| Armrests (option) | 3D adjustable (height, depth, orientation), PP with internal steel structure |
| Seat depth adjustment | Available in selected versions (see model references) |
Model Variants and Reference Codes (Ordering Guide)
Select by height range, casters/glides, and options such as footrest, armrests, and seat depth adjustment.
| Seat depth adjustment | Height range | Configuration | Reference |
|---|---|---|---|
| Without | 44–57 | Glides (Patins) | SB050070004 |
| Without | 44–57 | Casters (Roulettes) | SB050070005 |
| Without | 55–74 | Glides (Patins) | SB050070006 |
| Without | 55–74 | Casters (Roulettes) | SB050070007 |
| Without | 55–74 | Glides + Footrest | SB050070008 |
| Without | 55–74 | Casters + Footrest | SB050070009 |
| With | 55–74 | Glides + Footrest | SB050070010 |
| With | 55–74 | Casters + Footrest | SB050070011 |
| With | 55–74 | Glides + Footrest + Armrests | SB050070012 |
| With | 55–74 | Casters + Footrest + Armrests | SB050070013 |
Typical Applications (Where This Chair Fits Best)
- Electronics assembly and repair benches
- Testing, inspection, calibration, and QA stations
- Clean production zones and ESD-protected workcells
- Laboratories and technical classrooms requiring ESD seating compliance
Request a Quote (RFQ) | GCC Delivery
For pricing, lead time, and the best configuration for your workstation height and EPA requirements:
| Brand | Salesbridges |
| Article code | SB050070012 |
| SKU | SB050070012 |
| EAN | 9501496821373 |
