Environmental Racking UR Series – Spill Containment Storage for Drums & IBCs
The UR Environmental Racking Series from Salesbridges ensures compliant and safe storage of drums and IBCs with integrated spill containment sumps. Built with durable steel frames, modular design, and high load capacity, ideal for industrial and hazardous
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

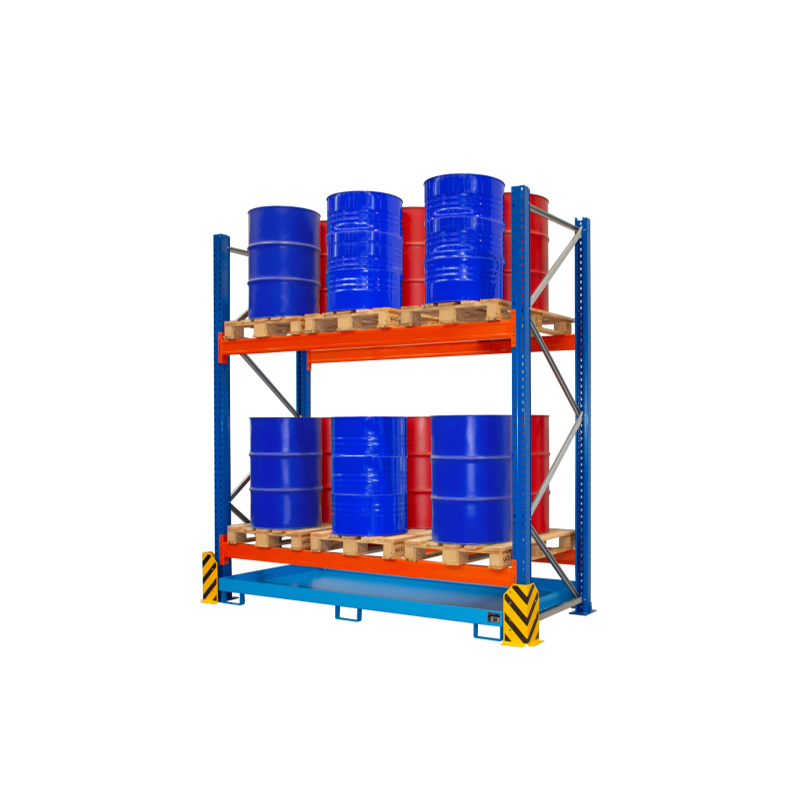

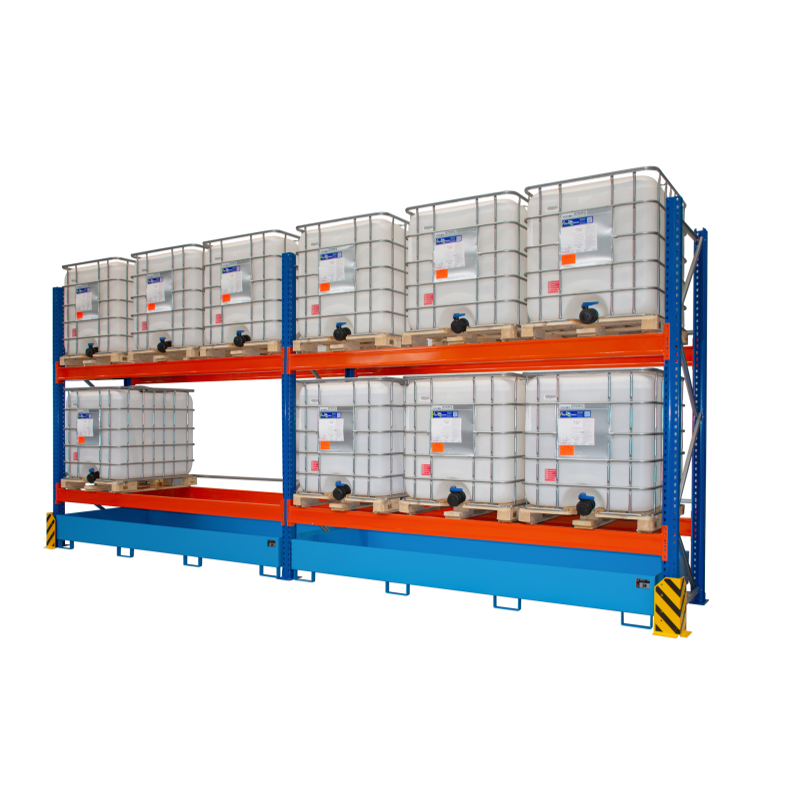

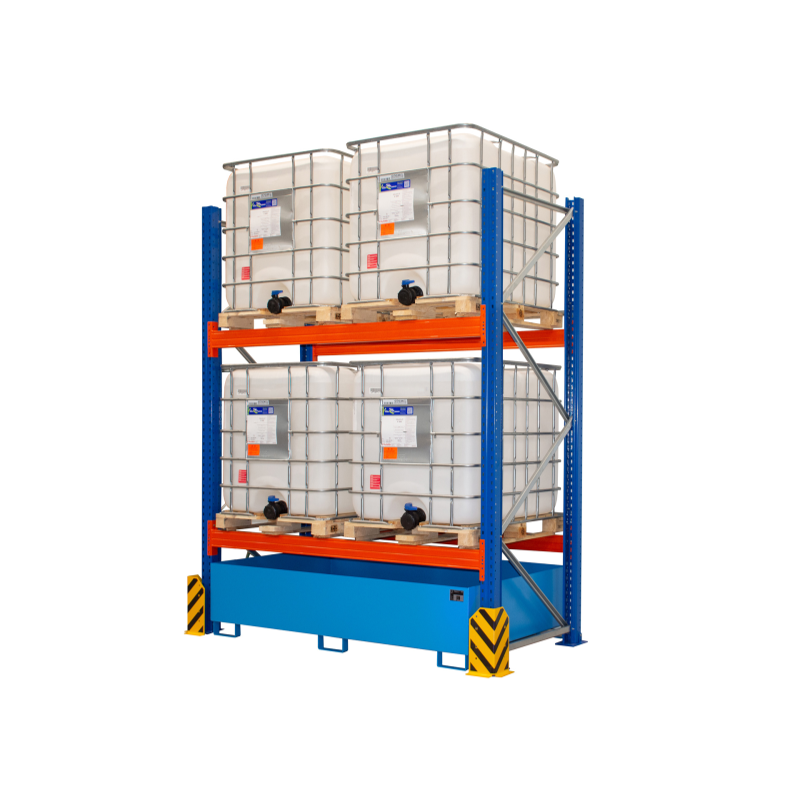

Environmental Racking – UR Series
The UR Environmental Racking is designed to comply with legislation for the safe storage of water-polluting substances. Equipped with shelf sumps, it provides reliable spill containment while ensuring efficient use of warehouse space.
Construction & Features
-
Sturdy steel racking system with painted upright frames (RAL 5017 traffic blue) and cross beams (RAL 2004 pure orange).
-
Shelf sump painted in RAL 5012 light blue.
-
Retainer bars are galvanized for long-term durability.
-
Modular design: available as basic shelves (UR-G) and extension shelves (UR-A).
-
Customizable with accessories such as corner guards, galvanized grids, and shelf drum pallets.
-
High load capacity, suitable for storing drums or IBCs.
Technical Specifications
| Model | Type | Capacity (Drums/IBC) | Dimensions (W x D x H mm) | Compartment Width (mm) | Max. Compartment Load (kg) | Weight (kg) |
|---|---|---|---|---|---|---|
| UR-G 2200 | Basic shelf (2 levels, sump RW 2200-2) | – / 4 | 2400 x 1100/1300 x 3000 | 2200 | 3077 | 278 |
| UR-A 2200 | Extension shelf (2 levels, sump RW 2200-2) | – / 4 | 2300 x 1100/1300 x 3000 | 2200 | 3077 | 234 |
| UR-G 2700 | Basic shelf (2 levels, sump RW 2700-1) | 12 / – | 2900 x 1100/1300 x 3000 | 2700 | 3072 | 269 |
| UR-A 2700 | Extension shelf (2 levels, sump RW 2700-1) | 12 / – | 2800 x 1100/1300 x 3000 | 2700 | 3072 | 225 |
| UR-G 3300 | Basic shelf (2 levels, sump RW 3300-3) | – / 6 | 3500 x 1100/1300 x 3000 | 3300 | 3000 | 351 |
| UR-A 3300 | Extension shelf (2 levels, sump RW 3300-3) | – / 6 | 3400 x 1100/1300 x 3000 | 3300 | 3000 | 307 |
Options & Accessories
-
Corner Guards: for racking installed in exposed or high-traffic areas.
-

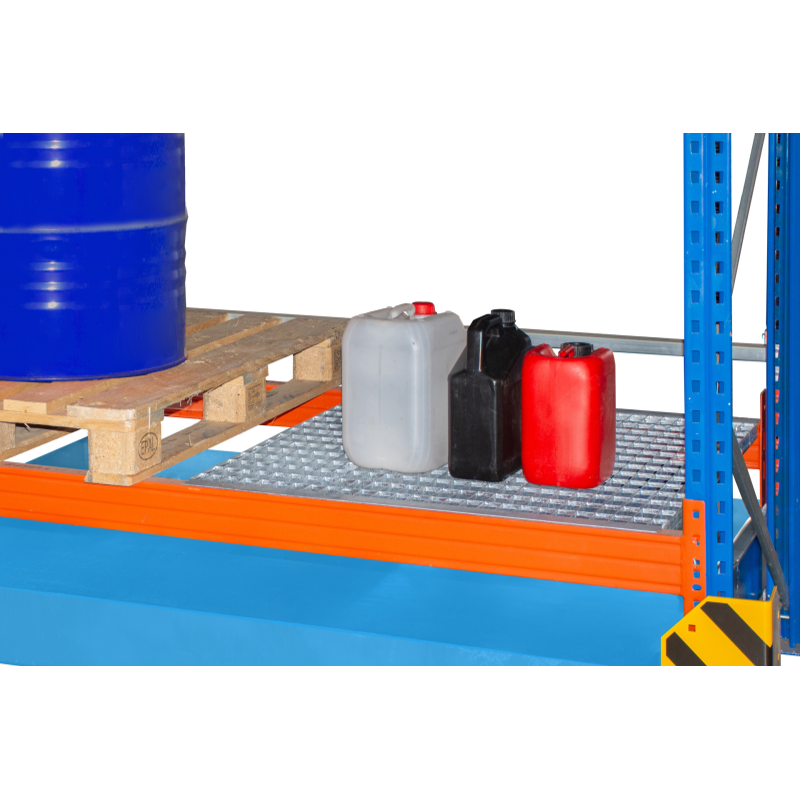

Galvanized Grid: base level only, load capacity 1000 kg/m².
-
Shelf Drum Pallet RP: galvanized, load 300 kg (570 x 1115 x 140 mm).
-
Custom options are available, including suspended sumps, PE inserts, and more.
| Brand | Salesbridges |
| Article code | SBURG2200 |
| SKU | SBURG2200 |
Store, stack and transport drums using a pallet truck or forklift. For storage of max. 4 x 200 liter drums or 200 l drum...
