Drum Stacking Pallet Type FSP

Create your own review

Price on request

Store, stack and transport drums using a pallet truck or forklift. For storage of max. 4 x 200 liter drums or 200 l drums in combination with 60 liter drums and/or canisters and small cans. Made in Germany

In stock

Produced to order, ready in 4-6 weeks

Quantity

- +

Price on request

Add to wishlist

Excellent quality
Large product range
Smart sollutions
More information? Contact us about this product
Add to comparison list

Product description

Drum Stacking Pallet Type FSP – Premium German Quality by Salesbridges

Optimize your drum storage, stacking, and transportation with the Drum Stacking Pallet Type FSP. Engineered and manufactured in Germany, this robust pallet system is ideal for safely handling up to four 200-litre drums or a combination of drum sizes, canisters, and small cans.

Trusted by industries across Europe, the FSP pallet ensures maximum safety, durability, and compliance for hazardous material storage. Its construction from 3 mm steel sheet, hot-dip galvanized or high-quality painted finishes (RAL 2000, RAL 3000, RAL 5012, RAL 6011, RAL 7005), and certified leak-proof design make it the preferred choice for flammable liquids (GHS categories 1–3) and substances hazardous to aquatic environments (GHS categories 1–4).

Key Features:

Made in Germany: Premium craftsmanship and strict quality control.
Versatile Storage: Holds up to 4 x 200-litre drums or combinations with 60-litre drums and canisters.
Easy Handling: Compatible with pallet trucks and forklifts.

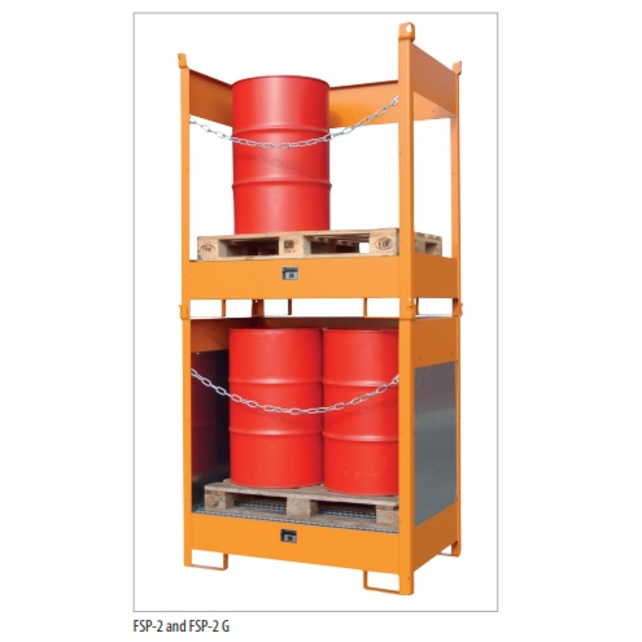

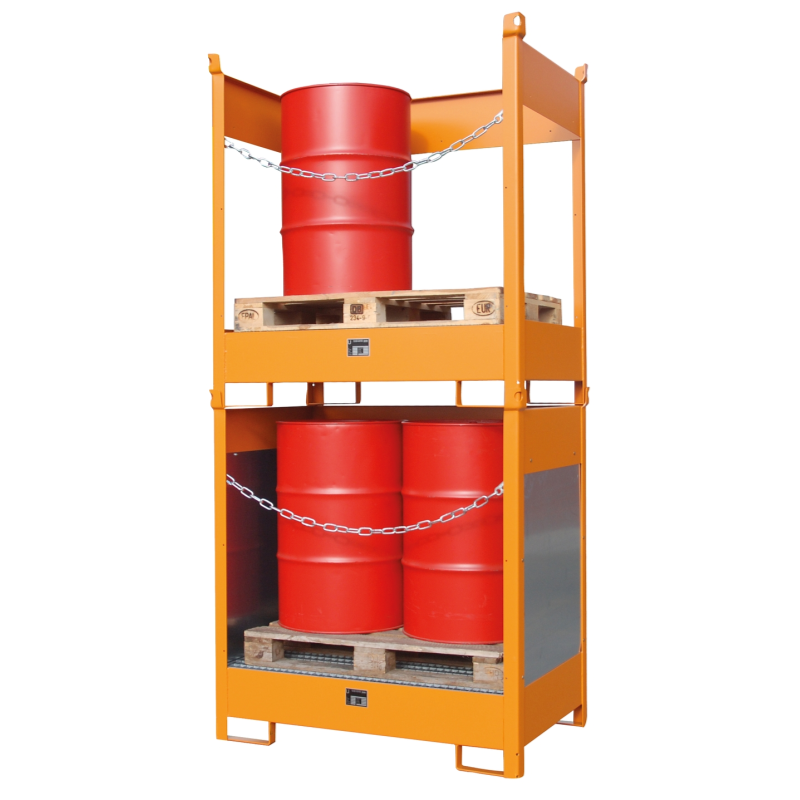

Stackable Design: Safely stack up to three units high, saving valuable floor space.
Safety Assured: Every unit is leakage-tested and includes a safety chain.
Multiple Variants: Open side (FSP), splash protection wall (FSP-G), and mesh sides/back (FSP-D) available.
Corrosion Protection: Hot-dip galvanized models ensure long-term durability.
Load Capacity: Reinforced galvanized grid supports up to 1000 kg/m².
Compliance: Ideal for hazardous and flammable liquids storage.

Choose Salesbridges for reliable supply, expert support, and fast delivery across Europe.

Technical Specification Table

Model	Max. Drum Capacity	Dimensions (L x W x H) mm	Retention Capacity (L)	Weight Painted (kg)	Weight Galvanized (kg)	Finish Options	Features

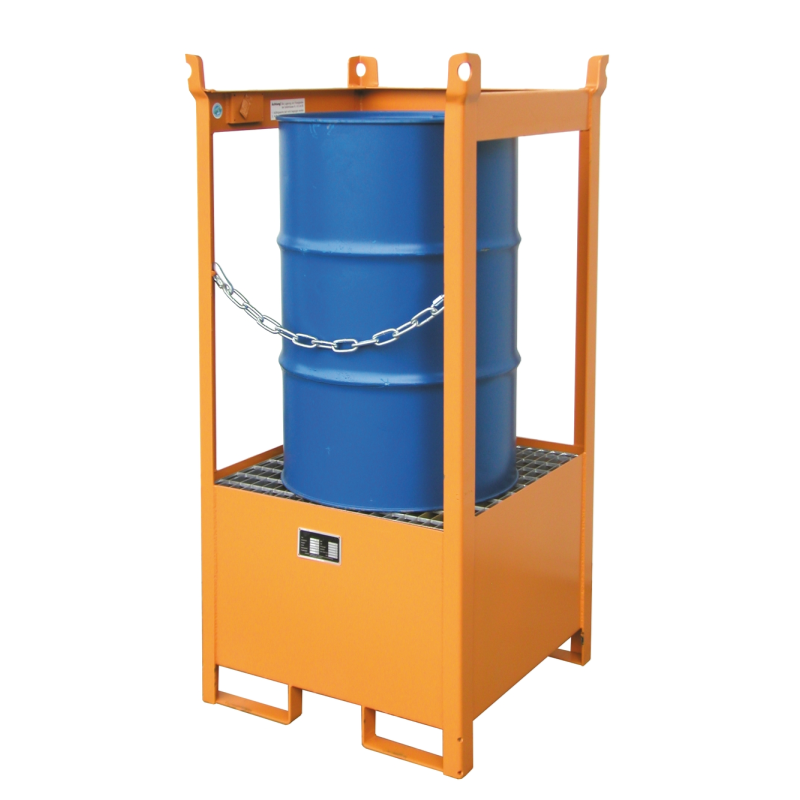

FSP-1	1 x 200 L	755 x 755 x 1590	225	93	102	RAL 2000, 3000, 5012, 6011, 7005, Galvanized	Open sides, stackable, leakage-tested

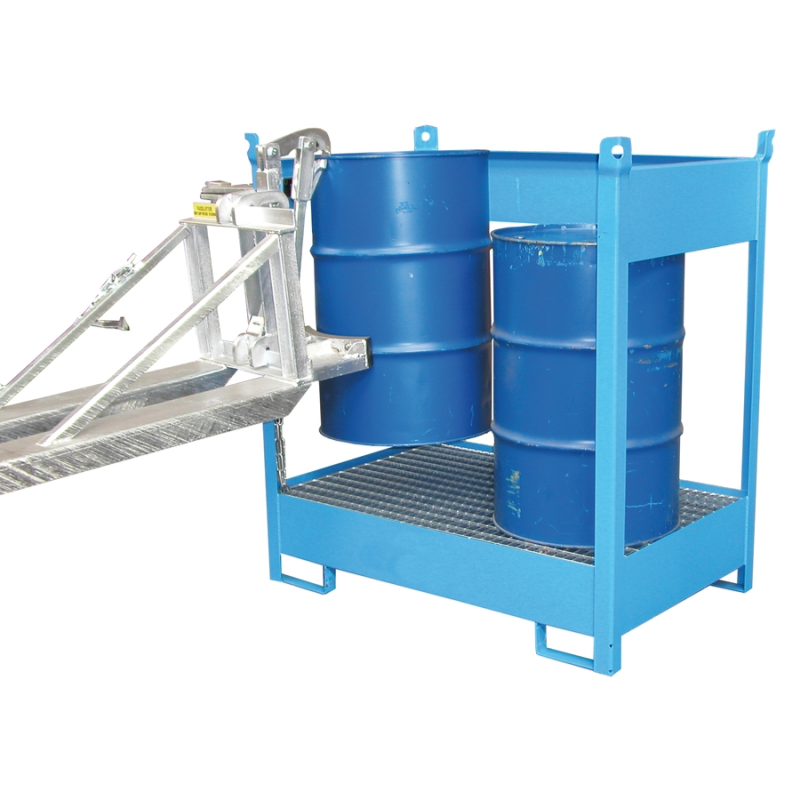

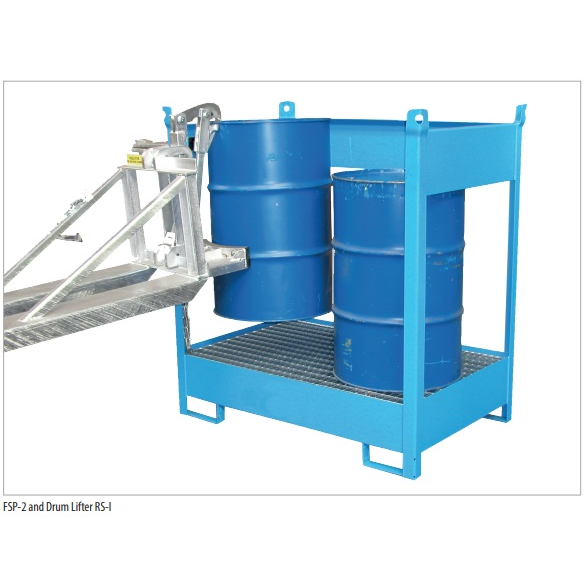

FSP-2	2 x 200 L	920 x 1410 x 1490	245	125	133	Same as above	Open sides, stackable, leakage-tested
FSP-4	4 x 200 L	1410 x 1410 x 1435	275	160	180	Same as above	Open sides, stackable, leakage-tested
FSP-1 D1	1 x 200 L	760 x 760 x 1590	225	103	113	Same as above	Mesh sides & back, leakage-tested
FSP-2 D2	2 x 200 L	920 x 1410 x 1490	245	141	152	Same as above	Mesh sides & back, leakage-tested

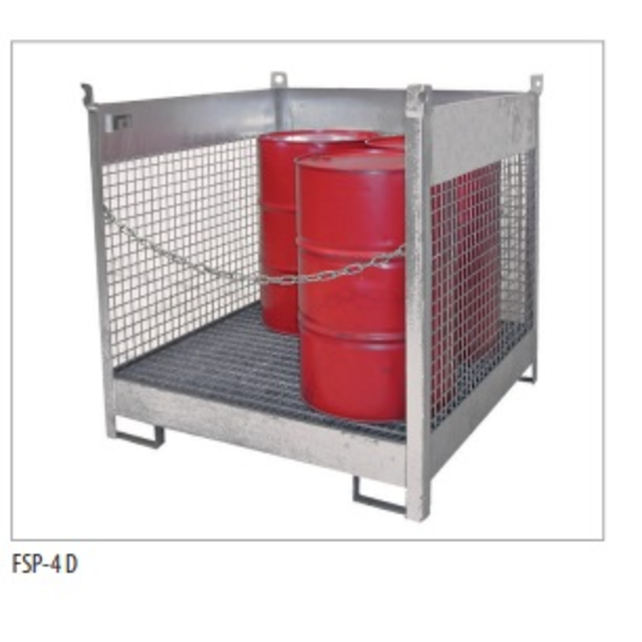

FSP-4 D4	4 x 200 L	1410 x 1410 x 1435	275	190	212	Same as above	Mesh sides & back, leakage-tested
FSP-1 G1	1 x 200 L	760 x 760 x 1590	225	112	122	Same as above	Splash protection wall (3 sides)

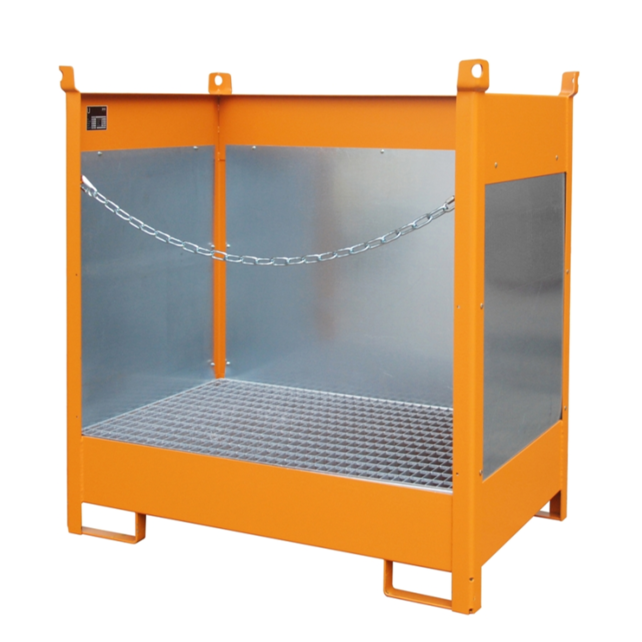

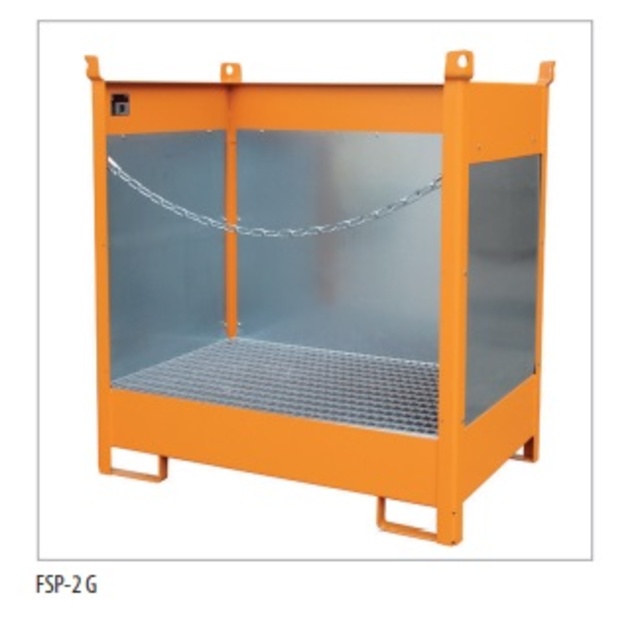

FSP-2 G2	2 x 200 L	920 x 1410 x 1490	245	156	168	Same as above	Splash protection wall (3 sides)
FSP-4 G4	4 x 200 L	1410 x 1410 x 1435	275	204	224	Same as above	Splash protection wall (3 sides)

Order your Drum Stacking Pallet Type FSP from Salesbridges today and benefit from top-quality German engineering for safe, efficient drum storage and handling.
