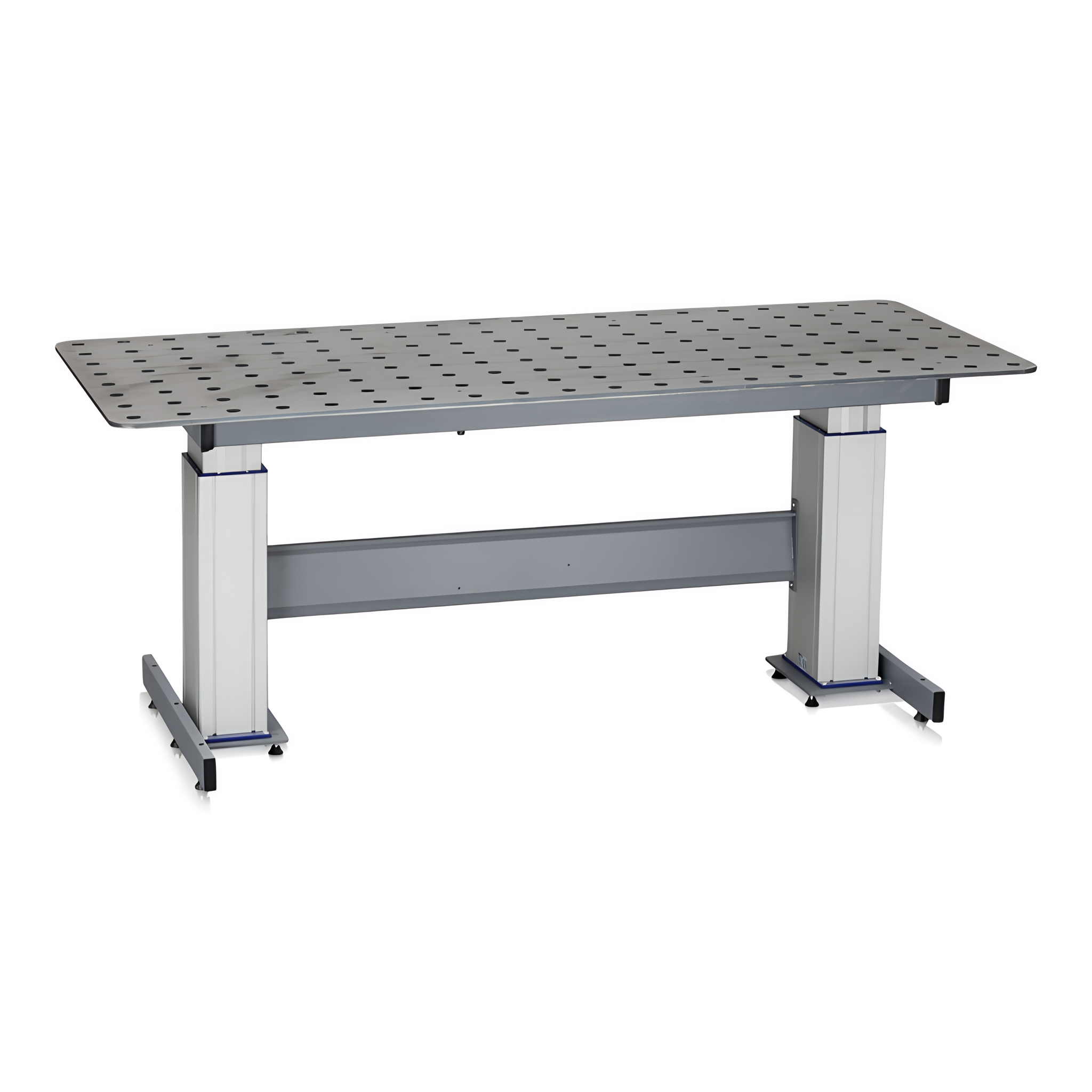

Electric Height-Adjustable Welding Table (800 mm depth) 500 kg
Heavy-duty electric height-adjustable welding table (3 sizes) with 12 mm steel top, 28 mm clamping holes (100 mm grid), height 680–1080 mm, 500 kg capacity. Delivered assembled. Delivery across the GCC.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Electric Height-Adjustable Welding Table (3 sizes) – Made in Sweden
Built for industrial fabrication and professional workshops, this heavy-duty welding/fixture table combines electric height adjustment (400 mm stroke) with a rigid steel top and a 500 kg load capacity—ideal for ergonomic, repeatable clamping and accurate setups.
Variants (one product, three sizes): 1200×800, 1600×800, or 2000×800 mm.
Origin: Sweden (Made in Sweden)
Warranty: 2-year factory warranty
Key benefits
- Electric height adjustment: 680–1080 mm (400 mm stroke)

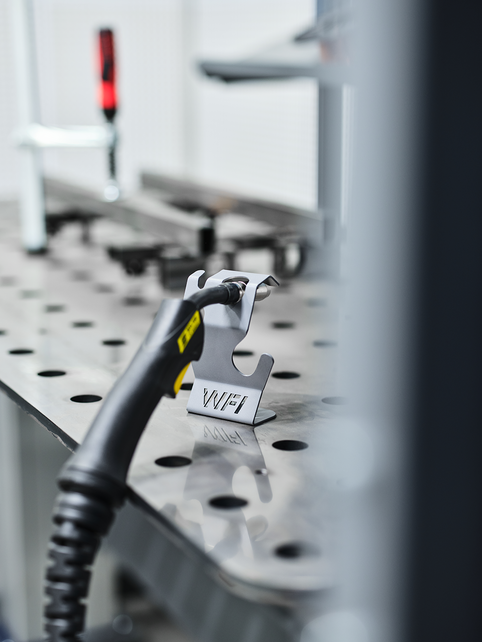

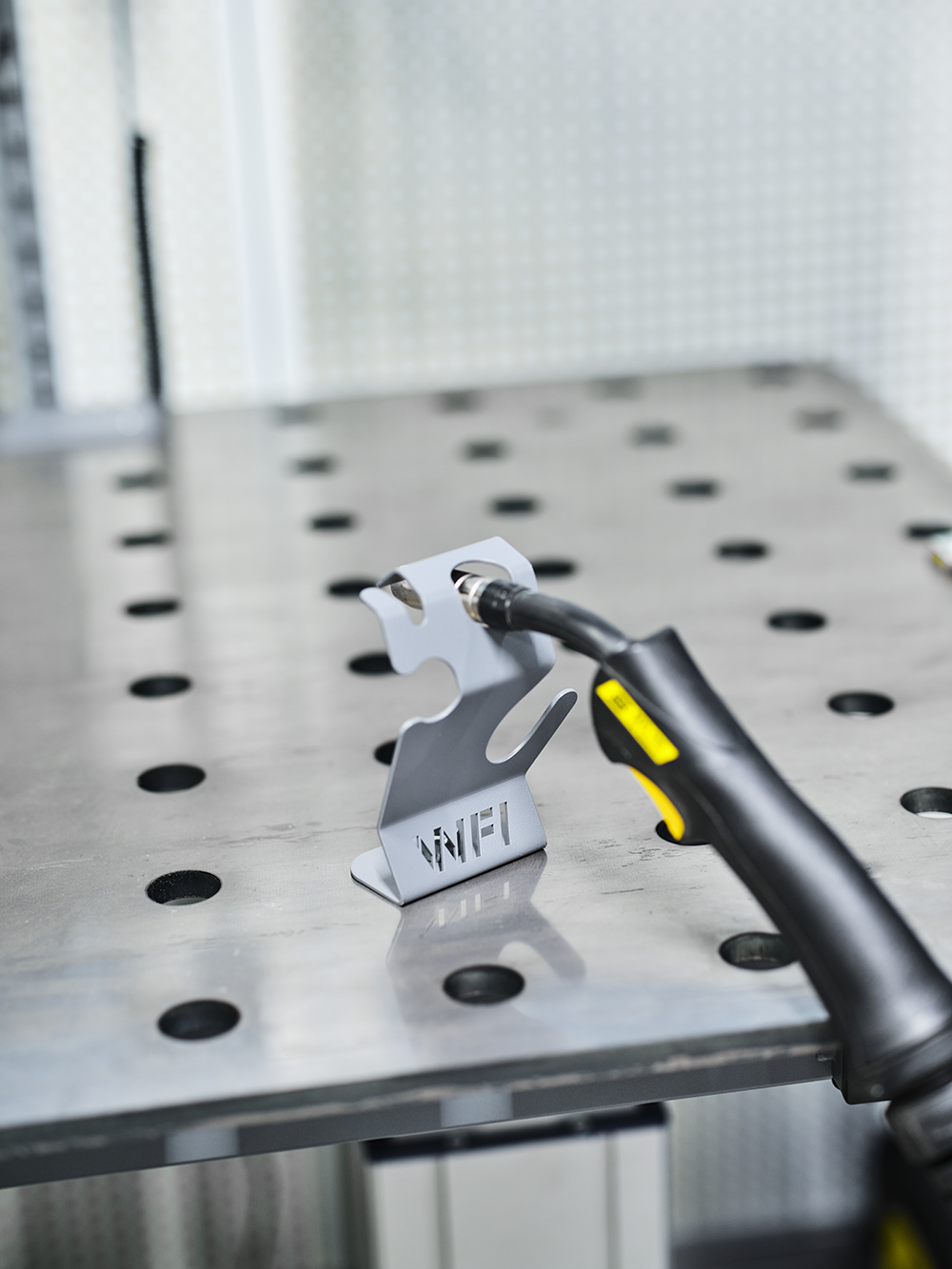

- 12 mm steel tabletop: for intensive welding and assembly work
- 28 mm clamping holes: compatible with common clamps and accessories
- 100 mm grid pattern: fast, repeatable positioning
- 500 kg capacity: supports heavy parts and fixtures
- Adjustable feet: stable on uneven industrial floors
- Delivered assembled: ready to use immediately
Typical use cases
- MIG/MAG, TIG and tack-welding setups
- Assembly, alignment and fitting
- Jigs/fixtures for repeatable production work
- Maintenance and repair operations
Characteristics
- Product type: Electric height-adjustable welding/fixture table
- Depth (all variants): 800 mm
- Width options: 1200 / 1600 / 2000 mm
- Height range: 680–1080 mm (electric)
- Top: steel, 12 mm, 28 mm holes, 100 mm grid
- Max load: 500 kg
- Delivery: assembled
Technical specifications
| Variant (WxD) | Article no. | Width | Depth | Height (min–max) | Stroke | Lifting speed |
|---|---|---|---|---|---|---|
| 1200×800 | SBWT14340 | 1200 mm | 800 mm | 680–1080 mm | 400 mm | 6.5 mm/s |
| 1600×800 | SBWT14330 | 1600 mm | 800 mm | 680–1080 mm | 400 mm | 6.5 mm/s |
| 2000×800 | SBWT14320 | 2000 mm | 800 mm | 680–1080 mm | 400 mm | 6.5 mm/s |
Delivery
SALESBRIDGES provides fast delivery across the GCC.
Contact Us for a Quote or Consultation
- Email: [email protected]
- Call/WhatsApp: +971543554679
Our team of industrial furniture experts is ready to help you optimize your workspace with the best heavy-duty solutions.
[email protected] | +31652883848
| Brand | Salesbridges |
| Article code | SBWT14340 |
| SKU | SBWT14340 |
| EAN | 9509394939459 |

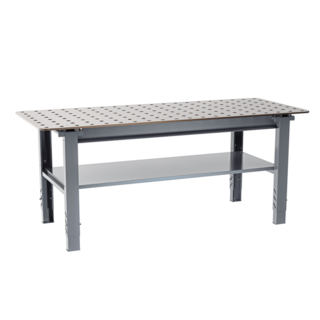

Manual height-adjustable welding table 1600x800 or 2000x800 with 12 mm steel top, 28 mm clamping holes (100 mm grid) and...

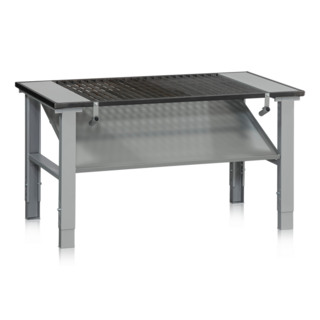

HD500 welding table with drip/slag shelf: 1200x800 or 1600x800. Manual height adjustment 750–1020 mm, 500 kg load. Made ...
