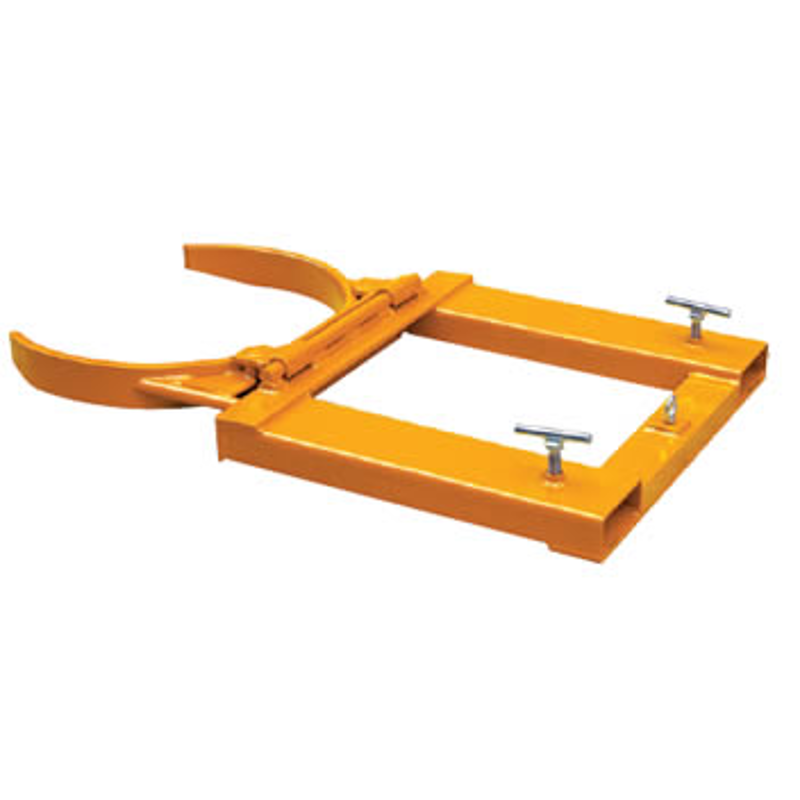

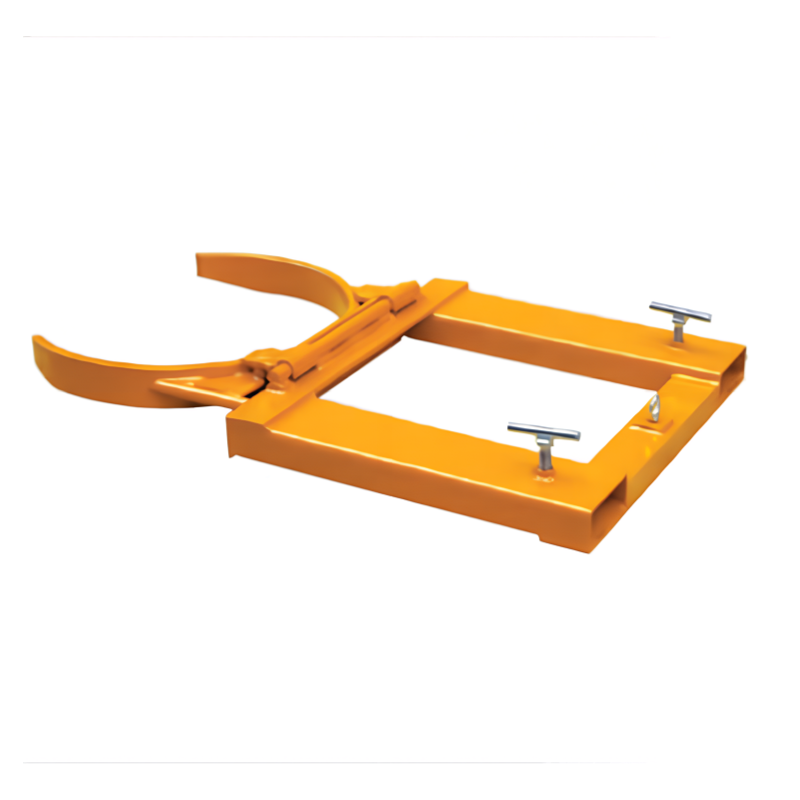

Drum Grab for Steel Barrel Clamp Lifter for Forklift - Yellow

Barrel clamp for Steel Barrel, Suitable for use with Forklift Drum grabber for forklift DG 10 & DG 20

DG 10 - Single Drum Clamp dimensions: Fork Pockets: 140 mm × 51 mm Barrel clamp weight: 55 kg Load capacity: 680 kg per drum Construction: Heavy-duty steel Finish: industrial coating

DG 20 - Double Drum Clamp dimensions: Fork Pockets: 178 mm × 57 mm Barrel clamp weight: 90 kg Load capacity: 680 kg per drum Construction: Heavy-duty steel Finish: industrial coating

Suitable for steel drums: Diameter barrel: 584 mm Height of barrel: 889 mm Barrel volume: 208L DG 10: Single steel drum DG 20: Double steel drum

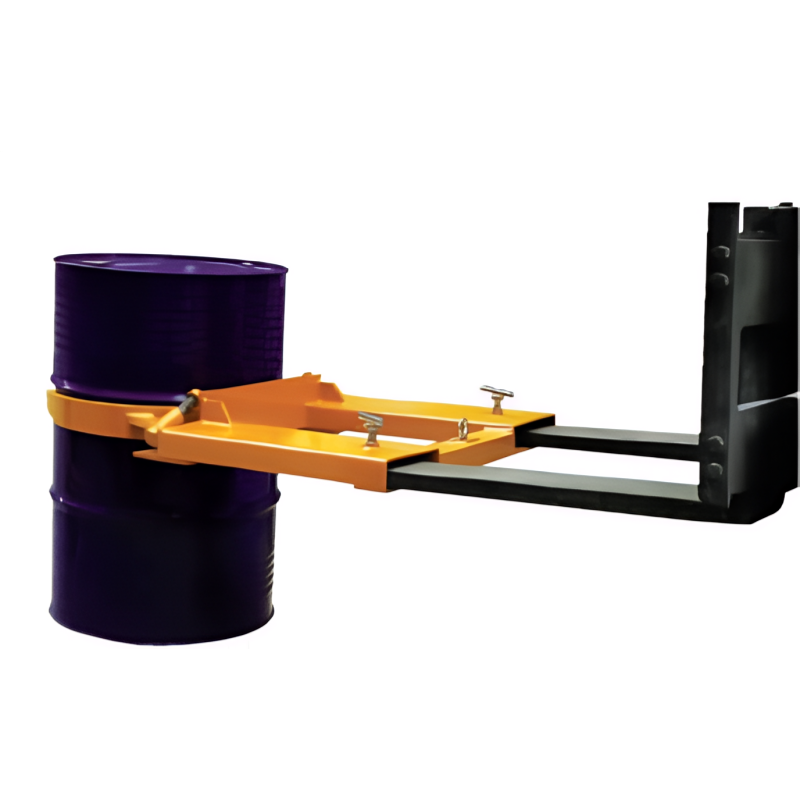

The barrel clamp is slid onto the forks of the forklift. It is secured with hand screws. The forklift drives with the drum clamp onto the drum(s) and puts the clamps on top of the drum(s). The barrel clamp is lowered to the center of the barrel(s). When the barrel(s) are lifted, they are automatically clamped between the drum clamps. When the drum(s) have to be disconnected again, the drum(s) are placed on the ground, and the forklift truck drives backwards. The clamps release automatically. The DG 10 is suitable for single 208L steel drums, while the DG 20 handles double 208L steel drums.
