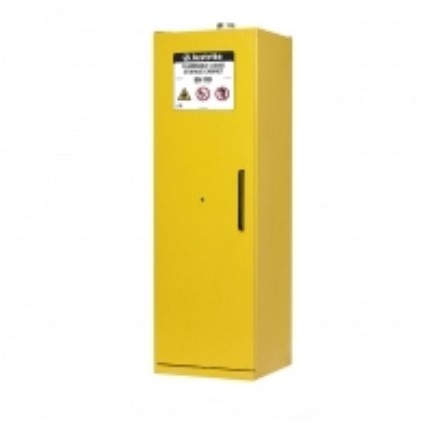

90 Minutes Safety Flammable Cabinets H207xW60xD60 cm 100L 3 shelves

Create your own review

AED 22,200.00 Excl. tax

AED 23,310.00 Incl. tax

Automatic door closure when the temperature exceeds 122°F (50°C). Extreme fire resistance for high risk environments, providing 90-minutes of content protection and extended evacuation time. Storage capacity of 100Liter of flammable liquids.

In stock

4-6 weeks

Quantity

- +

Add to cart

Add to wishlist

Excellent quality
Large product range
Smart sollutions
More information? Contact us about this product
Add to comparison list

Product description

Safety Cabinet for Flammable Liquids 90 Minutes 207 x 60 x 60 cm

Extreme Fire Resistance for High-Risk Environments

This 90-minute safety cabinet is designed for the secure storage of flammable liquids in demanding industrial, laboratory, and hazardous work environments. It provides extended fire protection to help safeguard contents and support safer evacuation during emergency situations. With a storage capacity of 100 liters, it is ideal for facilities that require high-performance flammable storage with strict safety compliance.

Advanced Fire Protection and Corrosion-Resistant Construction

The cabinet is manufactured from 1 to 1.5 mm steel with high-density rock wool fiber and calcium sulfate panels for superior thermal protection. Under fire conditions, intumescent strips expand and hermetically seal all gaps to reduce heat transfer into the cabinet, delivering up to 90 minutes of protection. The exterior features an acid-resistant epoxy-coated finish for excellent corrosion resistance, while the interior MFC panels resist acid and corrosive vapors. The hybrid-close door can be operated manually and closes automatically when the temperature exceeds 122°F (50°C). The vent butterfly valve closes securely at 158°F (70°C) in case of fire.

Key Features

90-minute fire-resistant protection for flammable liquid storage
Hybrid-close door with automatic closure at 122°F (50°C)
Intumescent strips seal gaps during fire to reduce internal heat transfer
Acid-resistant epoxy-coated steel exterior with corrosion-resistant interior panels
FM approved and compliant with OSHA, NFPA Code 30, NFPA 1, EN 14470-1, and EN 14727

Technical Specifications

Specification	Value
Storage Capacity	100 Liter
Dimensions	207 x 60 x 60 cm
Weight	216 kg
Number of Doors	1
Door Action	Hybrid-close, automatic closure above 122°F (50°C)
Number of Shelves	3
Shelf Load Capacity	75 kg per shelf
Shelf Adjustment	32 mm increments
Cabinet Material	1 - 1.5 mm steel with rock wool fiber and calcium sulfate panels
Exterior Finish	Acid-resistant epoxy coating
Interior Panels	MFC panels resistant to acid and corrosive vapors
Bottom Sump	76 mm sump with detachable perforated insert
Vent Safety	Butterfly valve closes at 158°F (70°C), flame arresters and caps included
Color	Yellow
Compliance	OSHA, NFPA 30, NFPA 1, EN 14470-1, EN 14727
Approval / Certification	FM Approved, GS certified by MPA Dresden
Warranty	10 Years
