4 Drum Horizontal Steel Drum Rack with 270L Sump Tray – 2 Levels, 600kg per Level
Store up to 4 x 200L steel drums safely with this 2-level horizontal drum rack. Features a 270L galvanized sump tray, 600kg load capacity per level, floor anchors and expandable design. ISO-certified European manufacture. GCC delivery available.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
4 Drum Horizontal Steel Drum Rack with 270L Sump Tray

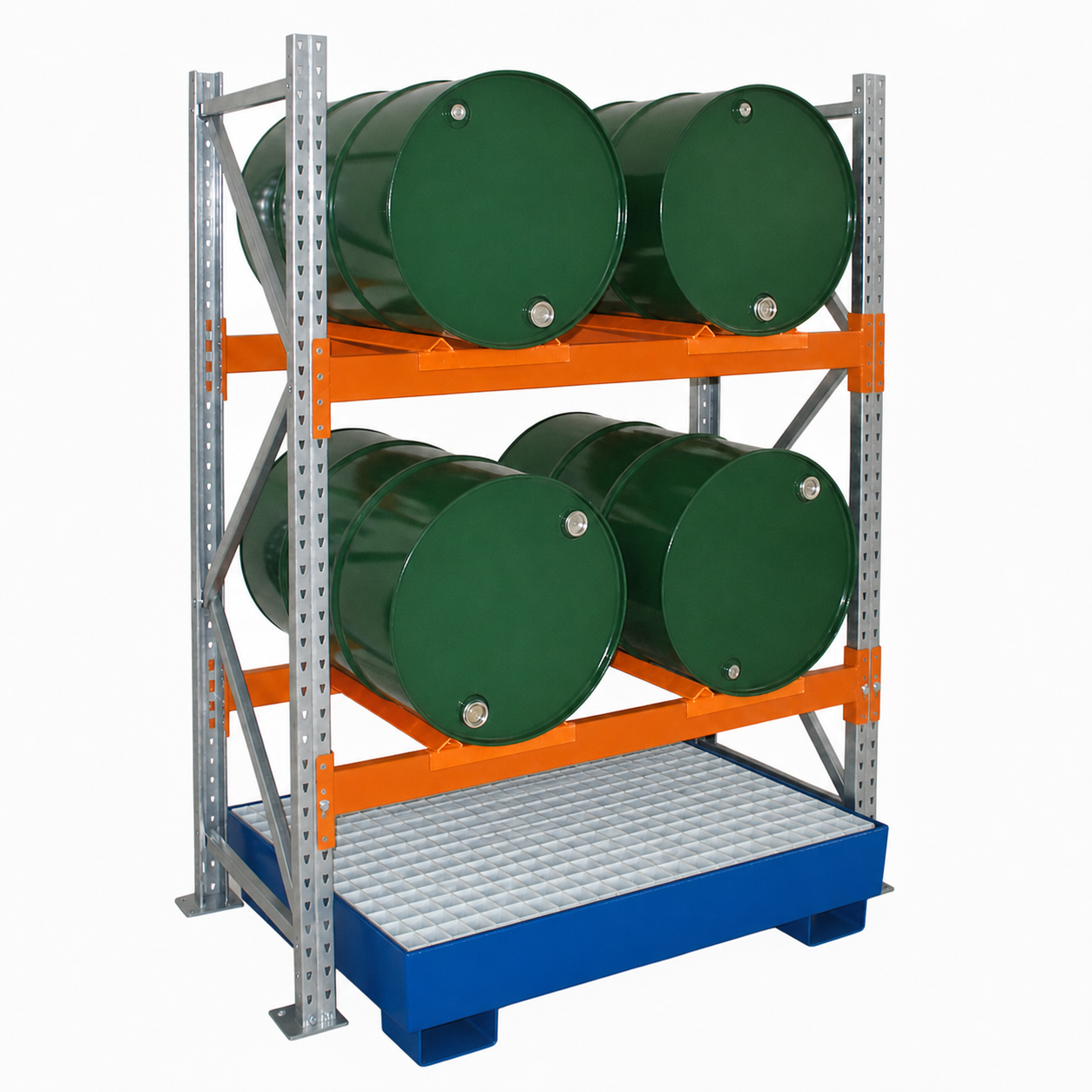

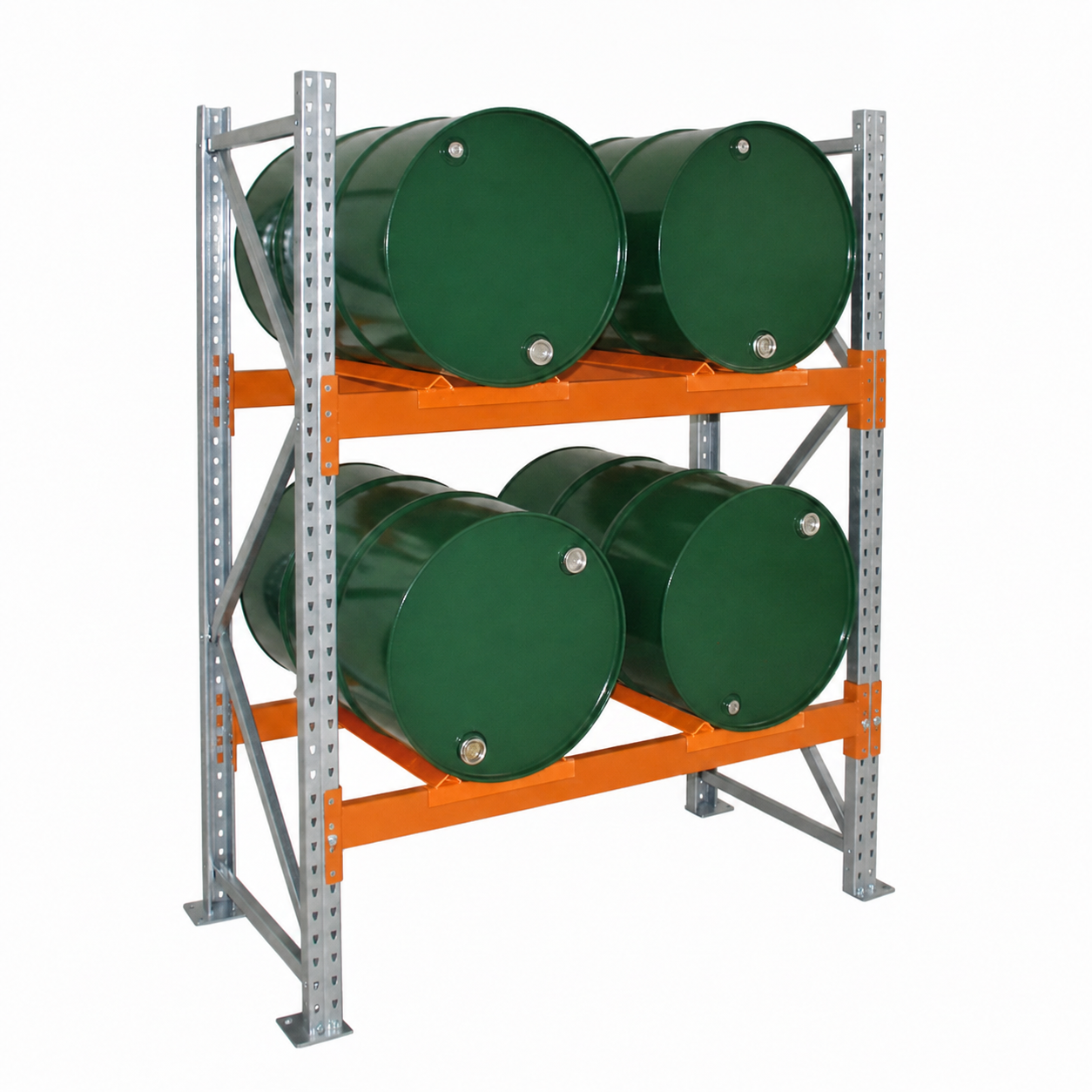

Store and dispense 200L steel drums securely with the SalesBridges 4 Drum Horizontal Steel Drum Rack. This robust two-level rack is designed for safe horizontal storage of up to four standard 200-litre steel drums, with two drums stored on each level.

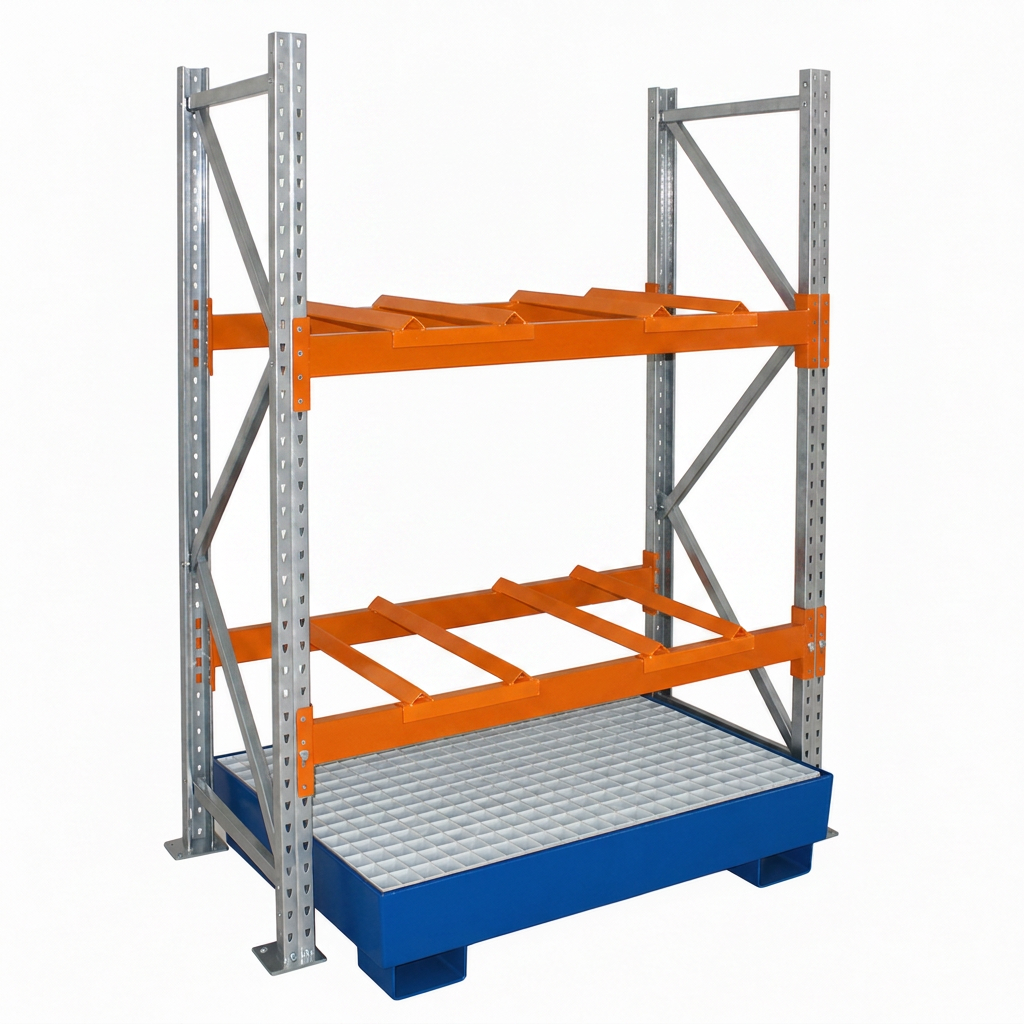

The integrated galvanized steel grid sump tray provides reliable secondary spill containment with a capacity of 270 litres. It is suitable for industrial facilities, workshops, warehouses, chemical storage areas, maintenance departments and oil handling locations.
Manufactured in Europe under ISO-certified production standards, this drum rack combines powder-coated horizontal beams with galvanized upright frames and cross bars for long-lasting corrosion resistance and dependable industrial performance.
Key Features
- Stores up to 4 x 200L steel drums horizontally
- Two storage levels with 2 drums per level
- Load capacity of 600kg per level
- Integrated 270L sump tray for spill containment
- Galvanized steel grid fitted over the sump tray
- Powder-coated horizontal cross beams
- Galvanized vertical upright frames with cross bar support
- Floor anchoring screws included for secure installation
- Easy assembly design
- Delivered flat packed for efficient transport and handling

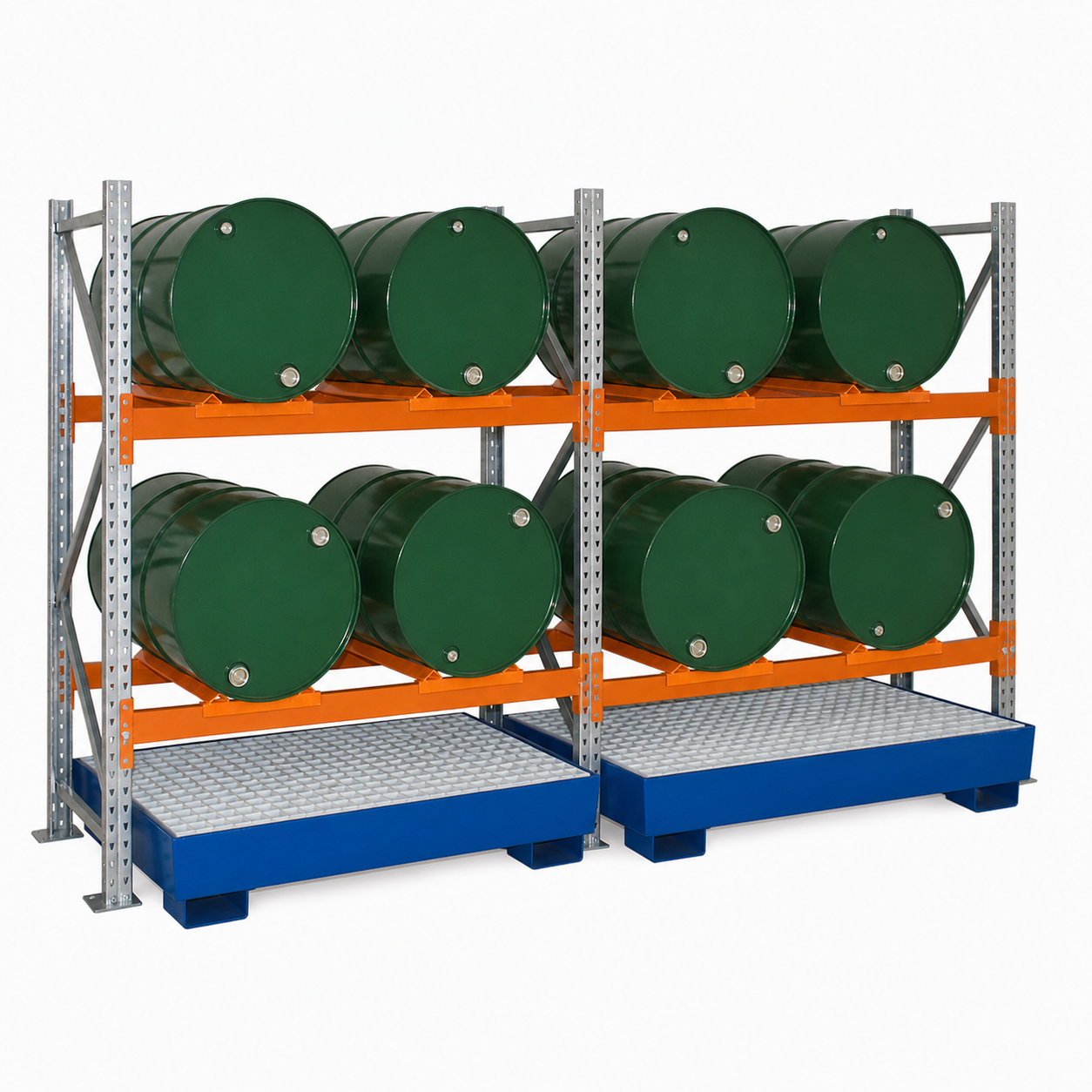

- Expandable system: add extensions for 4 additional drums or more
- European-made and ISO certified
- Suitable for industrial drum storage and liquid handling applications
- Delivery available across the GCC area
Benefits for Industrial Drum Storage
This horizontal drum storage rack helps improve workplace safety, organization and operational efficiency. The elevated rack design keeps drums accessible for handling or dispensing while the built-in sump tray helps contain potential leaks and spills.
Its modular expandable configuration makes it an ideal solution for businesses that need to increase drum storage capacity over time without replacing their existing system.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Horizontal steel drum storage rack with sump tray |
| Drum Capacity | 4 x 200L steel drums |
| Storage Configuration | 2 levels, 2 drums per level |
| Drum Position | Horizontal |
| Sump Capacity | 270L |
| Load Capacity | 600kg per level |
| Total Number of Levels | 2 |

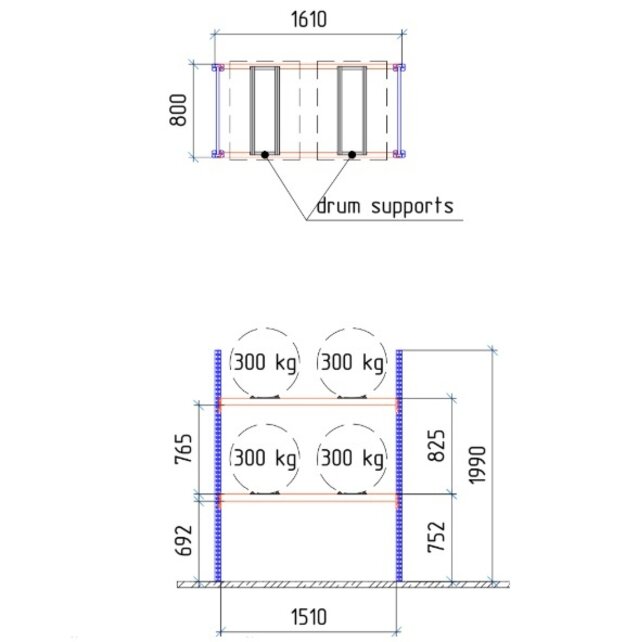

| Height | 1990mm |
| Length | 1510mm |
| Depth | 800mm |
| Horizontal Cross Beams | Powder-coated steel |
| Upright Frames and Cross Bars | Galvanized steel |
| Sump Grid | Galvanized steel |
| Anchoring | Floor anchoring screws included |
| Assembly | Easy to assemble |
| Delivery Format | Flat packed |
| Expandability | Extension available for 4 additional drums or more |
| Manufacturing Origin | Made in Europe |
| Certification | ISO certified |
Ideal Applications
- Warehouses and logistics facilities
- Industrial plants
- Chemical and lubricant storage areas
- Automotive workshops
- Maintenance facilities
- Oil and fuel handling locations
- Manufacturing sites
- Spill containment and environmental compliance areas
For RFQ, bulk orders, extension modules or product support, contact SalesBridges:
Email: [email protected]
Phone: +971 44058154
SalesBridges delivers drum storage and spill containment solutions across the GCC area.
