Collision Protection Column Protection 1755 x 1755 x 1216 mm

Create your own review

Price on request

Innovative and economic separation of your columns with the flexible impactprotectors . Due to the modular system a customized solution can always be supplied with individual cuttings. Easy installation.

In stock

Quantity

- +

Price on request

Add to wishlist

Excellent quality
Large product range
Smart sollutions
More information? Contact us about this product
Add to comparison list

Product description

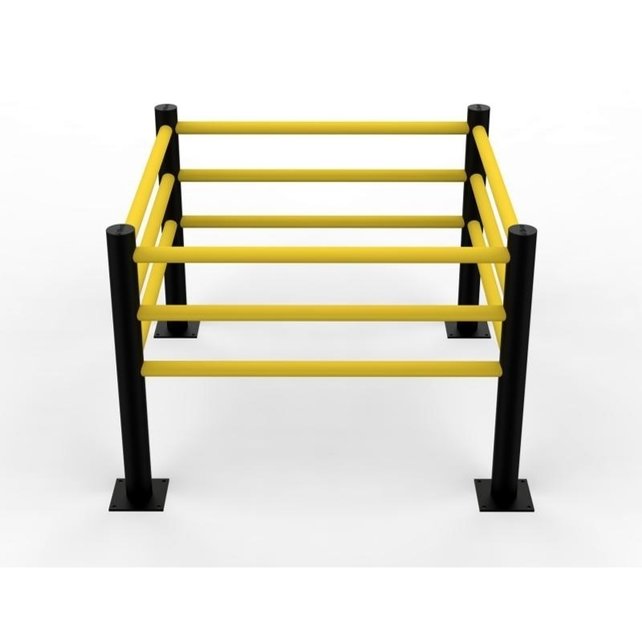

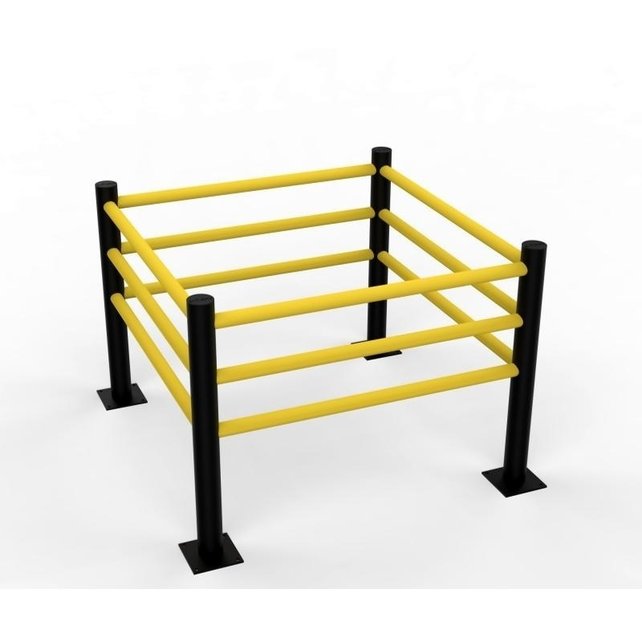

Collision Protection Column Protection “DELTA” 1755 × 1755 × 1216 mm

Maximum Column Impact Protection

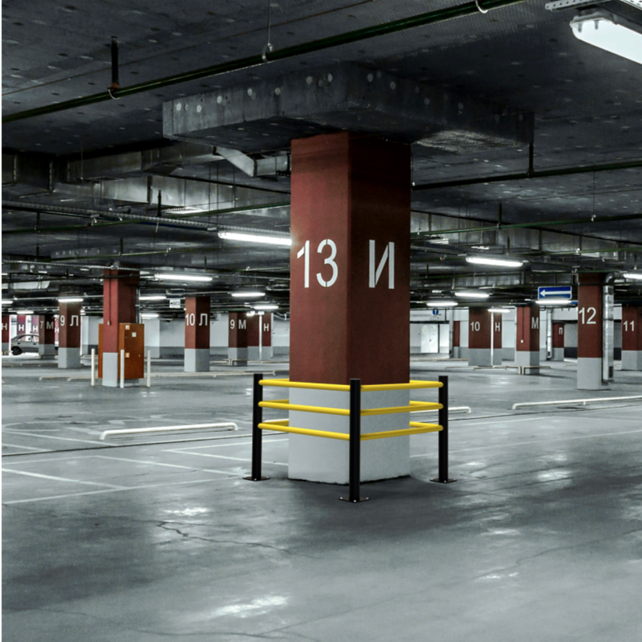

The DELTA Column Protection system (1755 × 1755 mm) is a heavy-duty solution designed to protect large structural columns from forklift and vehicle impacts. Its 3-barrier modular configuration effectively absorbs collision energy, preventing damage to both infrastructure and equipment while ensuring a safer working environment.

Flexible & Heavy-Duty Design

Manufactured from high-quality polyethylene, this system combines flexibility with strength. It deforms under impact and returns to its original shape, minimizing maintenance and repair costs. Suitable for both indoor and outdoor applications, it provides long-term durability even in demanding industrial environments.

Key Features

High impact resistance up to 2500 Joules
Flexible polyethylene absorbs collision energy
Large protection area for wide columns
Suitable for indoor and outdoor use
Easy installation with included fixing materials

Technical Specifications

Specification	Value
Length	1755 mm
Width	1755 mm
Height	1216 mm
Weight	50.4 kg
Material	Polyethylene
Color	Yellow / Black
Base Plate Size	225 × 225 mm
Base Plate Height	10 mm
Mounting	Bolted to paved ground
Mounting Holes	16
Fixing Included	Concrete anchors M10 × 70 mm
Impact Resistance	2500 Joules
Vehicle Equivalent	2000 kg at 5.7 km/h
Deformation	250 mm
Temperature Range	-10°C to +50°C
Chemical Resistance	High (ISO/TR 10358)
Recyclability	100%
Warranty	5 years
