Steel column protection column collision protection
AED 1,500.00 Excl. tax AED 1,575.00 Incl. tax

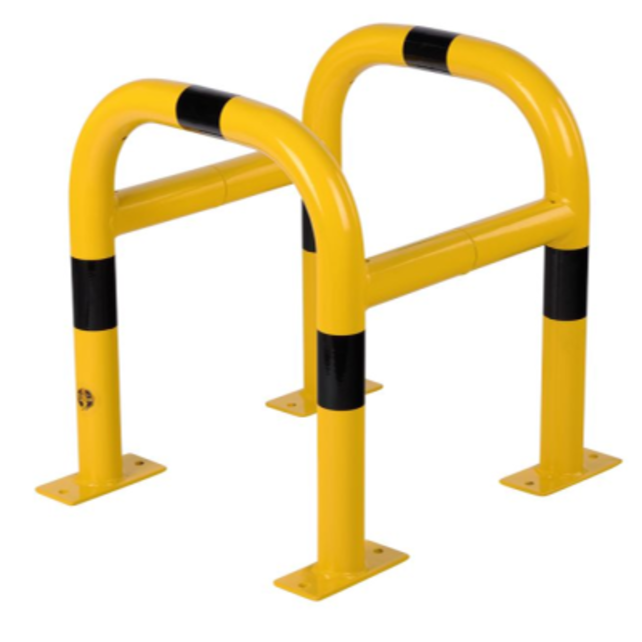

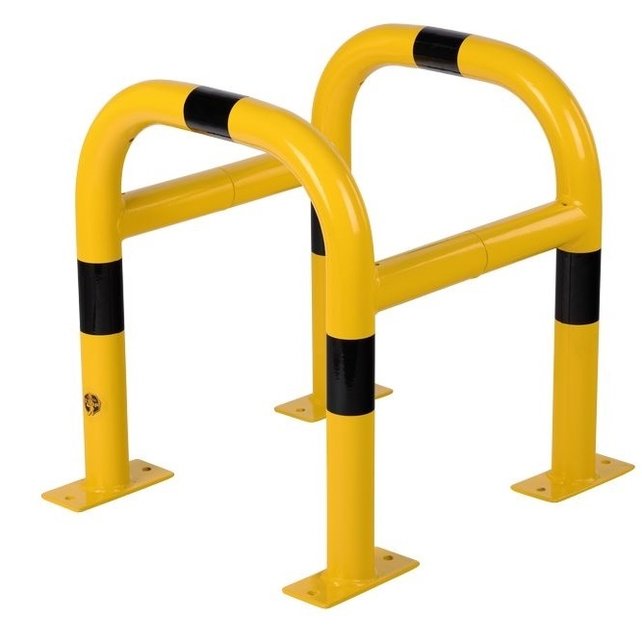

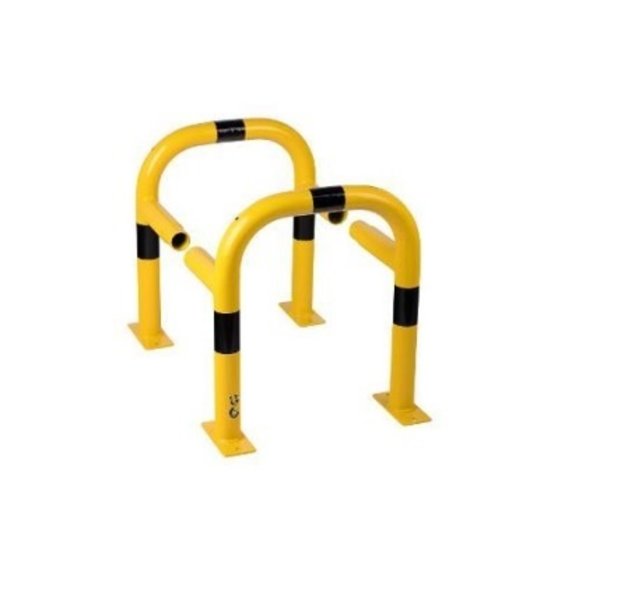

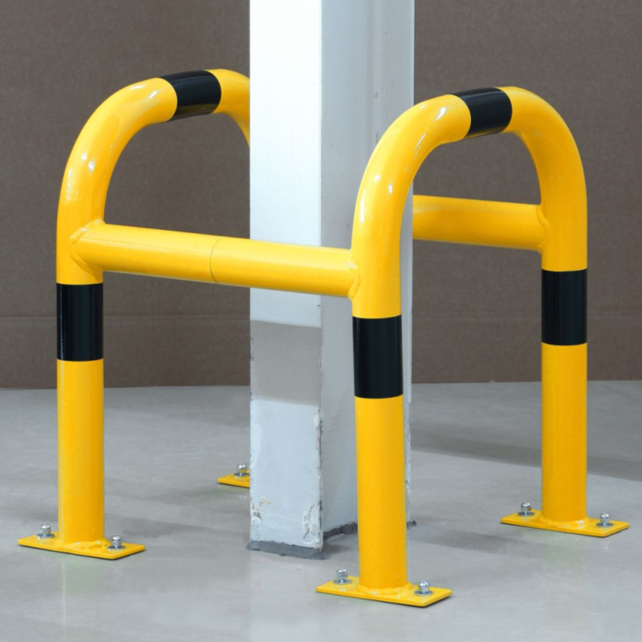

The steel column protection is a perfect solution to protect columns up to 400 x 400 mm inside and outside. The tubular tubes are connected to the steel beams to form a stable whole.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Steel column protection, collision protection
Protect columns easily, quickly and cost-effectively.
The steel column protection is a perfect solution to protect columns up to 400 x 400 mm inside and outside. The tubular tubes are connected to the steel beams to form a stable whole. The yellow-black warning markings make the product highly visible. Mounting with foot plates.
Up to 400mm W x 400mm L

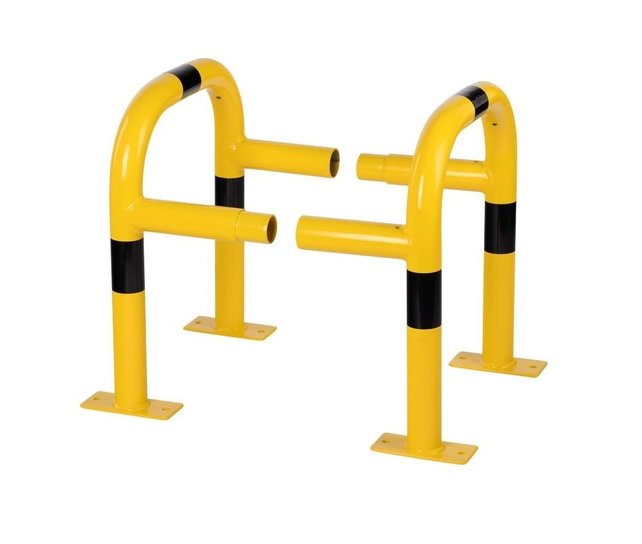

2 parts: 600mm H x 520mm W
galvanized and powder coated yellow (similar to RAL 1023) for outdoor use or powder coated for indoor use,
for floor mounting - bottom plate dimensions: 160 mm W x 70 mm D with 8x drill holes Ø 12.5 mm
Surface galvanized powder coated
Material thickness (mm) 3.2
Warning sign black warning sign
Overall length (mm) 620
Overall width (mm) 520
Total height (mm) 600
Diameter (mm) 60
Net weight (kg) 16.6
Length without base plate (mm) 520
Width without base plate (mm) 520
Application area indoors and outdoors
Installation site paved ground
Mounting plug and screw on
Number of mounting holes 8
Mounting included Mounting material not included
Accessories (optional) Mounting Art. No. FIX 1
Foot plate length (mm) 160
Foot plate width (mm) 120
Foot plate height (mm) 6
Foot plate color yellow
Approval / Certification TÜV certified (according to DGUV 108-007 / previously BGR 234)
Steel column protector, square, height 600 mm, side length 500 mm, two-piece, base plate 160 x 70 mm with 12.5 mm drill holes, galvanized and powder coated yellow (similar to RAL 1023), with black warning marking, with base plate for floor mounting, for outdoor use
Protect columns easily, quickly and cost-effectively. Innovative and economical protection of columns. Thanks to the modular system, a tailor-made solution can always be delivered
through individual cuttings.
Do you have any questions or are you interested in a quote? We are happy to offer you support. You can email us at [email protected] or reach us at 0652883848. In order to provide you with the best support, we ask that you send drawings / photos / information about your project.
