ST Series Steerable Machinery Skates 3–12 ton – swivel platform with drawbar
ST30/ST60/ST120 steerable skates for 3–12 ton. Swivel platform on thrust bearing, 1 m drawbar, and (ST60/ST120) forklift towing bracket. Fast delivery in GCC countries from SALESBRIDGES.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

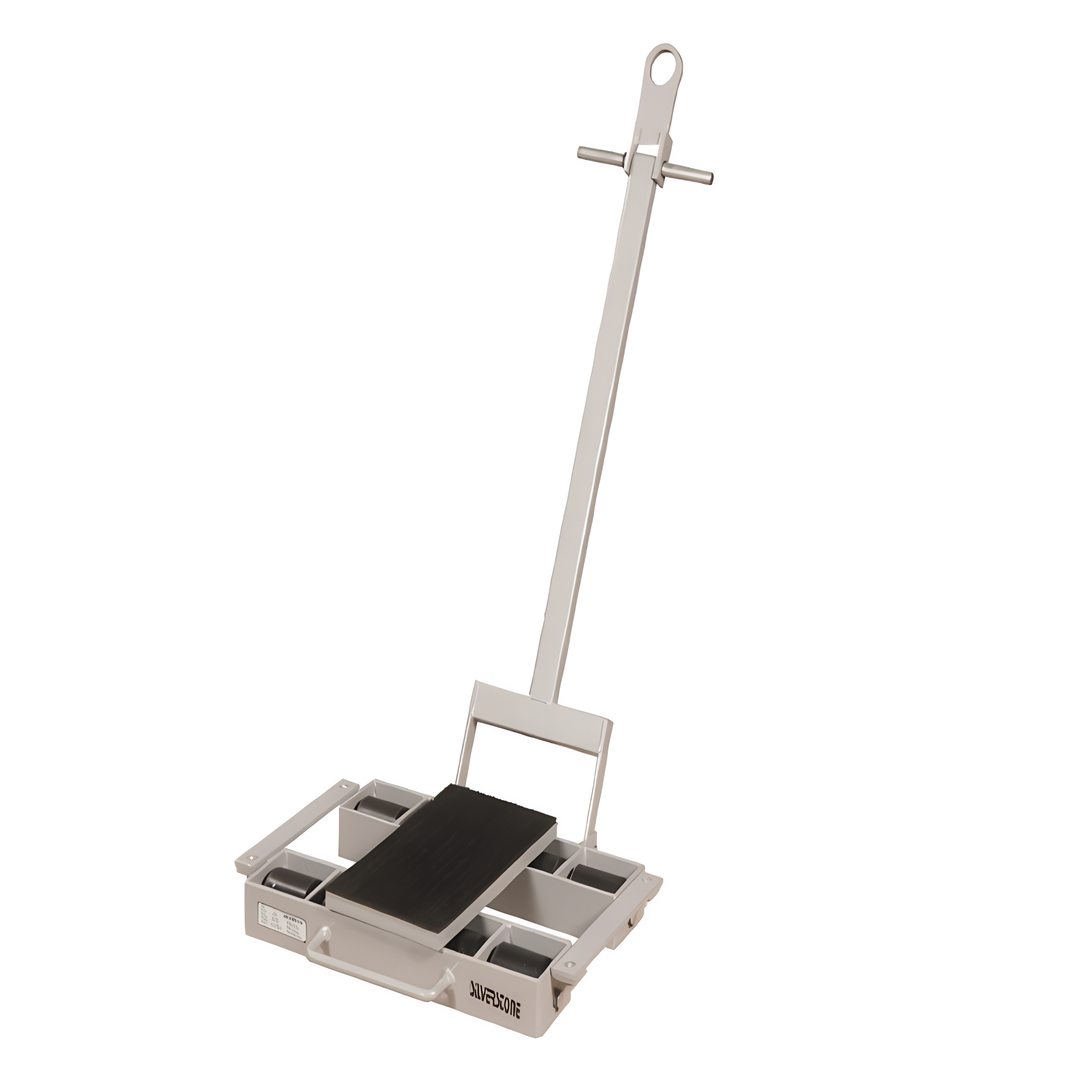

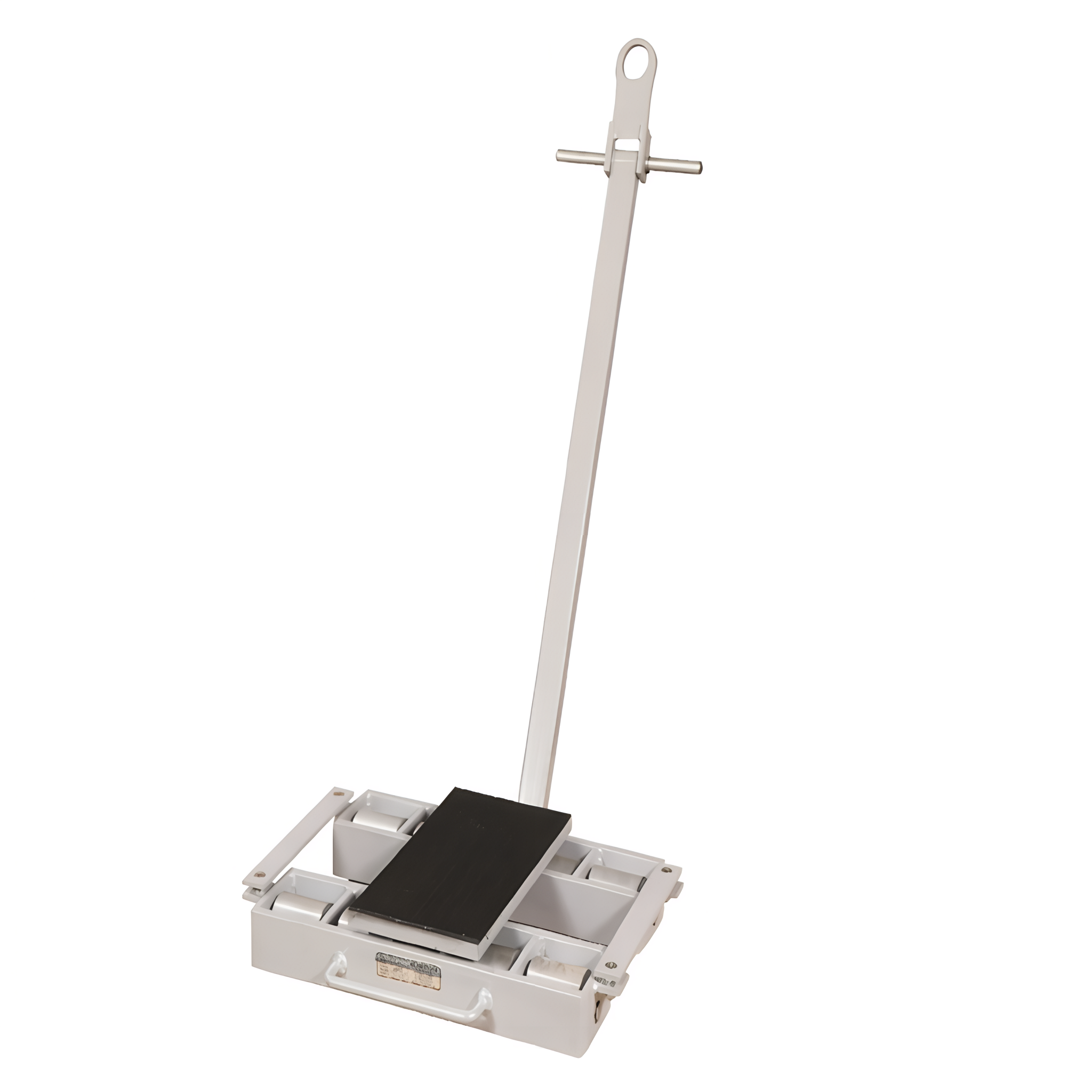

ST Series Steerable Machinery Skates (ST30 / ST60 / ST120) – 3 to 12 ton
The ST Series steerable skates are built for controlled moving and positioning of heavy machinery in workshops, warehouses, and production areas. The skate platform swivels on a thrust bearing, enabling smooth steering and cornering. Each version includes a 1 meter drawbar; the ST60 and ST120 also feature a forklift towing bracket for efficient pulling.
Key benefits
- Steerable swivel platform on thrust bearing for precise manoeuvring
- 1 m drawbar for controlled handling
- Forklift towing bracket on ST60 and ST120
- Nylon wheels (ST30/ST60) or steel wheels (ST120) depending on floor/load needs
- Ideal for machinery relocation, maintenance, installation, and internal transport
Typical applications
- Moving CNC machines, presses, cabinets, transformers, and industrial equipment
- Accurate positioning in tight spaces
- MRO, rigging, plant maintenance, and machinery installation
Technical specifications (by model)
| Model | Capacity | Wheel type | No. of wheels | Dimensions (L×W×H) | Weight | Wheel size (Ø×W) | Drawbar | Swivel platform (thrust bearing) | Forklift towing bracket |
|---|---|---|---|---|---|---|---|---|---|
| ST30 | 3000 kg | Nylon | 4 | 300×200×105 mm | 15 kg | 85×90 mm | 1 m | Yes | No |
| ST60 | 6000 kg | Nylon | 8 | 640×540×115 mm | 50 kg | 85×90 mm | 1 m | Yes | Yes |
| ST120 | 12,000 kg | Steel | 12 | 640×570×115 mm | 66 kg | 83×85 mm | 1 m | Yes | Yes |
Delivery
SALESBRIDGES provides fast delivery across GCC.
Contact Us for a Quote or Consultation
- Email: [email protected]
- Call/WhatsApp: +971543554679
Our team of industrial furniture experts is ready to help you optimize your workspace with the best heavy-duty solutions.
| Brand | Salesbridges |
| Article code | SBST3000 |
| SKU | SBST3000 |
| EAN | 9502314533645 |
Move heavy machinery safely with SF moving skates (1–6 ton). Nylon wheels, rubber anti-slip platform and steel handle. D...

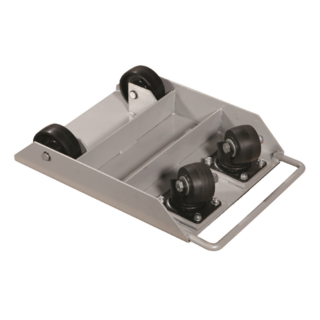

SC102 castor skate 1 ton (1000 kg) with 2 swivel and 2 fixed wheels for stable yet agile moving. 4 nylon wheels, robust ...
CM60 adjustable machinery skates 6 ton (6000 kg). Two skates linked by steel rods (adjustable width) and usable separate...

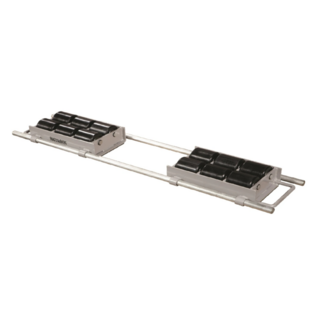

CM120 adjustable machinery skates 12 ton (12,000 kg) with nylon wheels. Adjustable width, can be used separately. Delive...

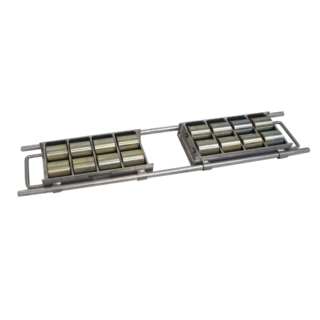

CM240 adjustable machinery moving skates 24 ton (24,000 kg) with nylon wheels. Adjustable width, usable as separate unit...

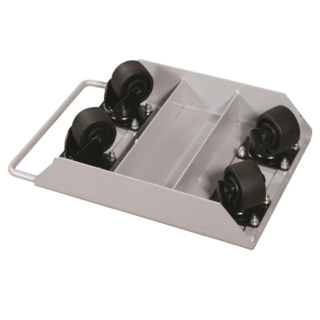

The SC104 machinery skate with 4 swivel castors and 1000kg capacity. Nylon wheels Ø75mm. Ideal for smooth and free movem...
