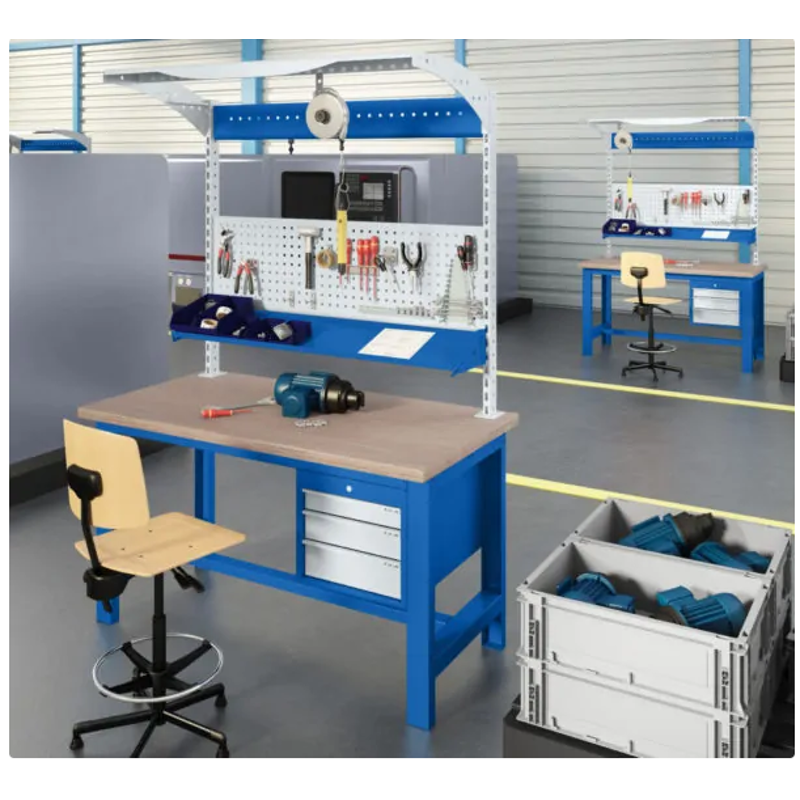

Workstation SBSI For Heavy Engineering & Hand-Crafts

Full Set Workstation for Mechanical Industry - Modern, Robust and Stable.

• Engineering industry
• Electromechanics industry
• Electrical appliances
• Auto mechanic

1500 X 750 x 840 - Worktop 40 mm Plywood - 1500Kg Load

Industrial maintenance requirements are based on planning and preparation, quick response times, mobility, adaptability and flexibility, information management and traceability, monitoring and reliability.

Furniture configuration, functionality, ergonomics, bulk, modularity, versatility, finishes (such as on work surfaces) and style can be adapted to suit the trades using them and the manufacturing process stages. An effective response to the flexibility that companies need includes accessorizing, adjustable settings and mobility.

A wide range of technologies are used in this sector: machining, electricity, electronics, hydraulics, pneumatics, robotics, electronic engineering, electromechanics and more.

Workbench description:

workbench with 40mm thick Plywood worktop with straight edges, fixed height 828 mm

• The frame consists of a structure of tubular steel thickness 20/10 and formed sheet steel thickness 25/10.

• The legs are made from 40 x 40 section welded tube, the horizontal cross-members formed into a U section 40 x 60 x 40 mm.

• The framework is finished in epoxy powder paint

• Color of the frame : black or bleu or light grey

• The worktop is fixed to the structure by a VBA TB 5x20 screw

Workbench dimensions :

• Workstation with 40 mm Plywood worktop

• Length :1500 mm

• Width :750 mm

• Load capacity : 1500 Kg

• The height : 840mm .

Frame in 3 colors:

Industrial Blue RAL5015

Anthracite grey RAL7016

Light grey RAL7035

4 Accessories added to the table:

Superstructure uprights:

• Uprights: cross-section 60x30mm, for fastening of accessories.

• Fastened with plates to the workbench top.

• Upper cross-member made of perforated 10/10th sheet steel.

• Height :120 cm without cross-member.

• Color of the up right : black or bleu or light grey

Perforated backboard fastened between the superstructure uprights

• Perforated backboard with square holes 10x10 every 38mm enabling hooking on of tool holder
  accessories.

• Panel depth 30mm. Don’t forget your set of 15 accessories

• Color : Light grey

• Length : 130 cm

• Height : 37.5

Reclining shelf (x2)

• Reclining and depth adjustable shelves mounted between the two uprights of the superstructures

• Reversible fastening enabling creation of an edge at the back or front Inclination up to 30°

• Load capacity: 50 kg.

• Reversible fastening enabling creation of a H25mm edge at the back and front

• Reversible fixing allowing to have the H 25mm rim on the back or front.

• Length : 130 cm

• Width : 35 cm

• Color : Light grey

Worktop options :

• 40mm plywood worktop, height 840mm

Common applications: Heavy or light engineering, hand-crafts, education, electrical engineering, packaging.

• 40mm RESITOP high thermal resistance laminate top, straight edges

Laminate sheet heat resistance: up to a surface temperature of 180°C without
damage Fire resistance M3 Laminate sheet scratch resistance: 2.5N Laminate sheet abrasion resistance: 400
revolutions in Taber test. No forbidden substances requiring authorisation or listed in REACH
Common applications: plastics, assembly

• 40mm plywood with high cutting resistance PEHD surface worktop, straight edges, height 845mm

Natural PEHD: chemical resistance, high mechanical resistance, low humidity absorption, excellent slip and nonadherence properties. Common applications: Heavy engineering, electronics, aeronautics

Additional options:

- Screen and keyboard stand or laptop stand with double arms.

- Table top: Plywood, Resin, Galvanized steel or Melamine

- 1 Drawer, 2 Drawers, 3 Drawers

- Garbage bin 25L

- Led Lighting Luminaire

Trade involved

Grinding technician / Fitter/assembler / Engineering technician / Lathe operator / Milling machine operator / Regulator / Mechanic / Tool-maker / Sheet metal worker / Blacksmith / Digital control operator / Folder / Welder, Mechanised welder

This products can bear the required loads for this work.

Certification

The worktops are PEFC certified
The height adjustable frame can bear up to 300Kgs
In compliance with NF XPD 65762

                                                                                                       Made in France
