Sheet Metal Storage Units with Trays Type KBR – Modular Steel Sheet Storage

Sheet Metal Storage Units with Trays Type KBR – Modular Steel Sheet Storage

Origin: Germany

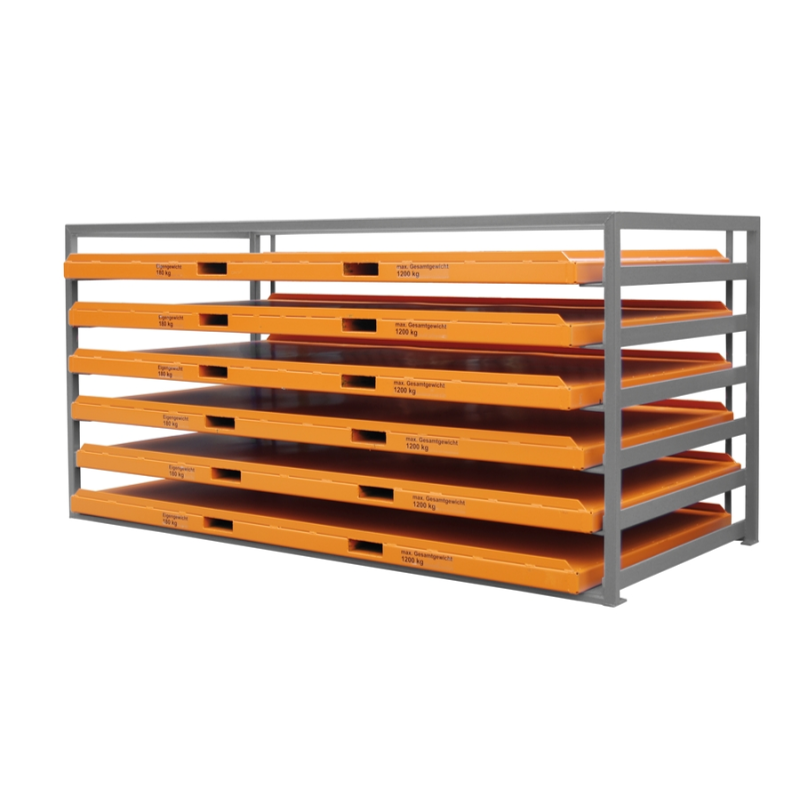

Optimize your sheet metal storage with the KBR Series from Salesbridges. These robust storage units are designed for efficient and organized storage of steel sheets and other plate materials. Each unit features a sturdy steel frame with a retainer bar and comes equipped with 6 steel trays, each capable of holding up to 1000 kg.

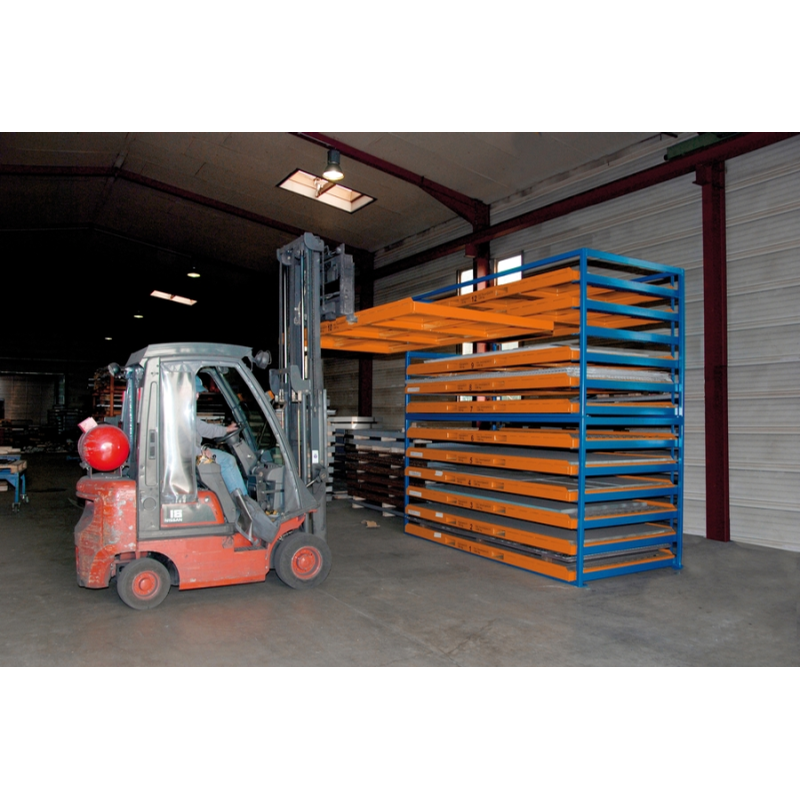

The trays are designed with fork sleeves for easy handling and can accommodate steel sheets measuring up to 3000 x 1500 mm. With a maximum loading height of 120 mm per tray, these units are ideal for workshops, warehouses, and industrial settings. Additionally, two KBR units can be stacked, providing a total of 12 trays, and are prepared for anchoring to the ground for added stability.

Key Features

• Sturdy steel construction with retainer bar

• 6 steel trays with fork sleeves per unit

• Load capacity: 1000 kg per tray

• Max sheet size: up to 3000 x 1500 mm

• Max loading height per tray: 120 mm

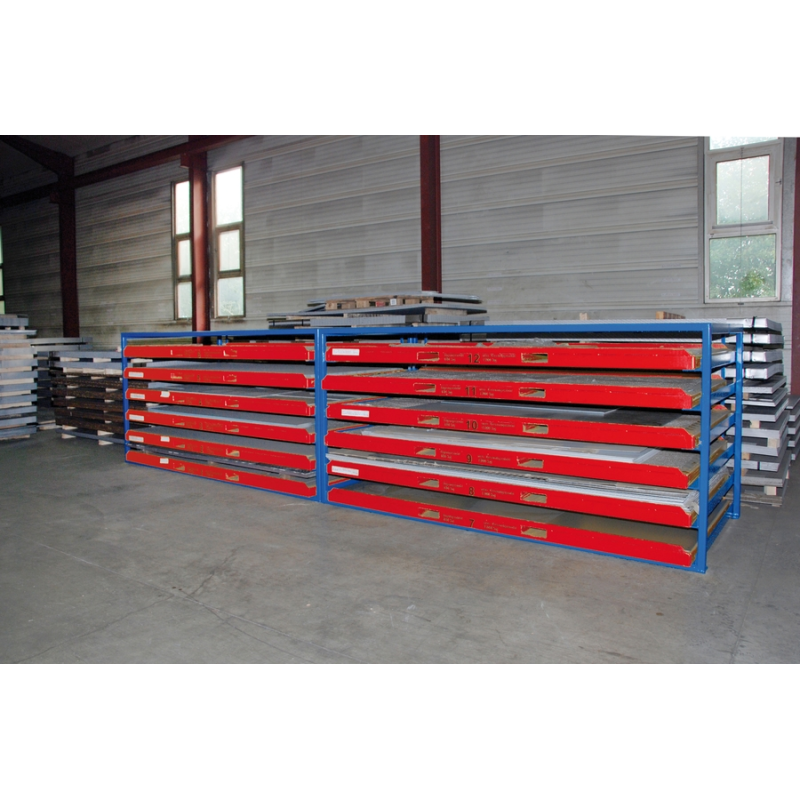

• Stackable design: up to 12 trays when stacked

• Prepared for ground anchoring

• Available finishes: RAL 2000, RAL 3000, RAL 5012, RAL 6011, RAL 7005

Technical Specifications

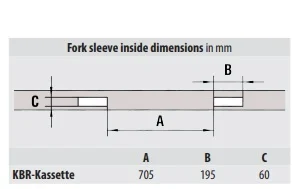

Fork Sleeve Inside Dimensions (mm):

• A: 705

• B: 195

• C: 60
