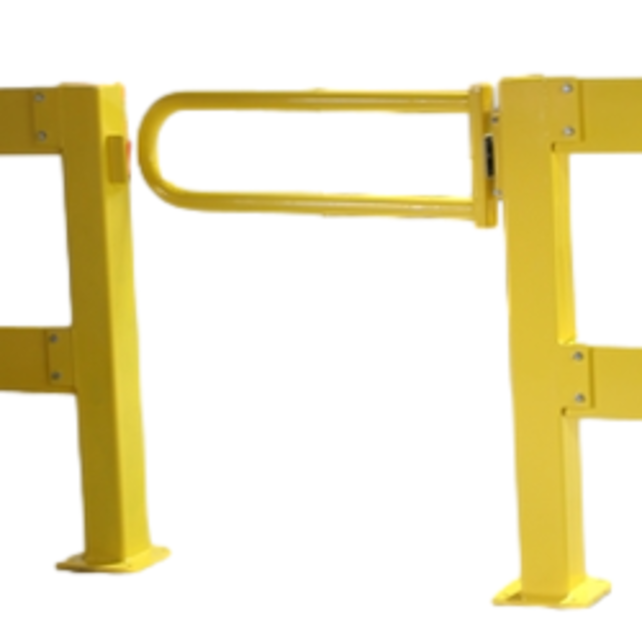

Safety Traffic Barrier Swing Gate – Sliding Gate System
The Swinggate TÜV certified Safety Barrier Steel from Salesbridges is a safe solution to secure passage ways up to 850 mm. With the horizontal swing mechanism. Due to the bended construction the gate is highly visible, even in longer sections of a barrie
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Safety Traffic Barrier Swing Gate – Sliding Gate System (Up to 3 m Passage)
Efficient Separation of Work Zones & Pedestrian Areas
The Safety Traffic Barrier Slide Gate (Swing/Sliding System) is a reliable and cost-effective solution for separating work zones, walkways, and industrial traffic routes. Designed with a horizontal sliding mechanism, it allows smooth opening without blocking the passageway.
Safe, Modular & Easy to Install
This TÜV-certified safety barrier is built from high-quality steel and finished in high-visibility yellow (RAL1023). Thanks to its modular design, it can be adapted to different layouts and expanded as needed.
Key Features
- Sliding gate system for unobstructed passage
- TÜV-certified safety barrier
- High visibility yellow powder-coated finish
- Modular system for flexible configurations
- Easy installation with included fixing points
- Pre-assembled delivery for quick setup
Technical Specifications
| Specification | Value |
|---|---|
| Material | Steel |
| Finish | Powder coated (RAL1023 – Yellow) |
| Post Height | 1000 mm |
| Post Size | 100 × 100 mm |
| Gate Structure | 60 × 60 mm steel struts |
| Gate Height | 500 mm |
| Clearance from Ground | 360 mm |
| Base Plate | 200 × 200 mm |
| Mounting | Floor mounting (4 boreholes per plate) |
Available Models
SBTSG100
- Total Width: 2760 mm
- Maximum Passage Width: 1000 mm
- Intake Beams: 1500 × 140 × 80 mm
SBTSG150
- Total Width: 3760 mm
- Maximum Passage Width: 1500 mm
- Intake Beams: 2000 × 140 × 80 mm
Construction Details
- Heavy-duty steel frame for industrial durability
- Smooth horizontal sliding mechanism
- Designed to keep passageways clear when opened
- Reinforced base plates for secure floor mounting
- Powder-coated for corrosion resistance (indoor use)
Standard Delivery
- Safety slide gate system (selected model)
- Two end posts
- Intake beams
- Pre-assembled unit
- Ready for installation
Applications
- Warehouses and logistics centers
- Production and manufacturing facilities
- Pedestrian walkways and restricted areas
- Loading zones and industrial traffic routes
Advantages
- Improves workplace safety and traffic control
- Space-saving sliding mechanism
- Modular and customizable system
- Fast and easy installation
- Durable and long-lasting construction
Contact Us for a Quote or Consultation
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Secure and organize your traffic routes with the SALESBRIDGES safety slide gate system. Request your quote today.
| Brand | Salesbridges |
| Article code | SBTSG100 |
| SKU | SBTSG100 |
