PTH-E Electric High Lift Pallet Truck 800 mm Lift Height, 1.19 m Forks
PTH-E electric high lift pallet truck with 800 mm lift height, 1,000 kg capacity, 12V battery and manual lifting option. CE marked to EN 1175-1. Delivery across GCC.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

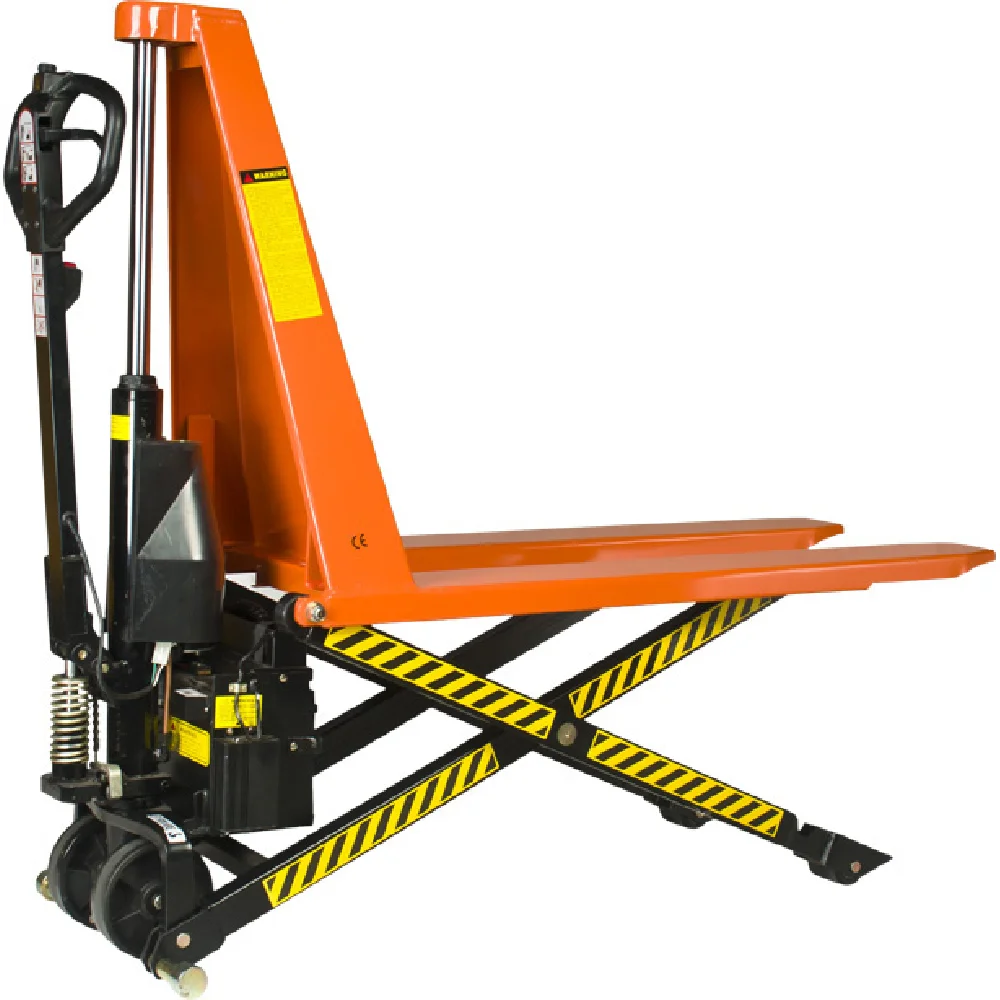

PTH-E Electric High Lift Pallet Truck
The PTH-E Electric High Lift Pallet Truck combines the easy manoeuvrability of a standard pallet truck with the elevated working height of a scissor lift table. Designed for warehouses, production lines, workshops and loading areas, it helps operators raise palletised loads to an ergonomic working height of up to 800 mm.
Its electric lifting system is powered by a 12V, 60 Ah battery and includes a battery charger. A full charge provides approximately 60 lifting cycles. For added flexibility, the PTH-E can also be lifted manually when required.
The integrated support system provides excellent stability when the forks are raised. Polyurethane steering wheels and fork rollers support smooth, quiet movement while helping protect warehouse floors.
Key Features
- Electric high lift pallet truck for ergonomic pallet handling
- Maximum lifting height of 800 mm
- Manual lifting function available as backup
- 12V DC, 60 Ah rechargeable battery
- Battery charger included
- Approximately 60 lifting cycles per full battery charge
- High stability at elevated positions through support legs
- Polyurethane steering wheels for smooth manoeuvrability
- Polyurethane fork rollers for reliable load movement
- CE marked and manufactured in accordance with EN 1175-1
- Suitable for warehouses, factories, packing stations and logistics operations
- Delivery available across the GCC area
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | PTH-E Electric High Lifter |
| Part Code | 3401053 |
| GTIN Number | 8717365016219 |
| Fork Length | 1,190 mm |
| Fork Width | 580 mm |
| Minimum Fork Height | 85 mm |
| Maximum Lifting Height | 800 mm |
| Lifting Height per Movement | 15 mm |
| Overall Dimensions (L x W x H) | 1,600 x 580 x 1,300 mm |
| Battery | 60 Ah / 12V DC |
| Battery Charger | Included |
| Lifting Cycles per Full Charge | Approximately 60 |
| Lifting Method | Electric and manual |
| Steering Wheel Material | Polyurethane |
| Fork Roller Material | Polyurethane |
| Fork Roller Diameter | 82 mm |
| Fork Roller Version | Single |
| Colour | Orange |
| Weight | 150 kg |
| Standard | EN 1175-1 |
| Compliance | CE Marked |
Request a Quote
For RFQ, pricing, availability or delivery information across the GCC area, contact Salesbridges:
Email: [email protected]
Tel: +971 44058154
| Brand | REMA |
| Article code | SB3401053 |
| SKU | SB3401053 |
| EAN | 9506823755192 |
