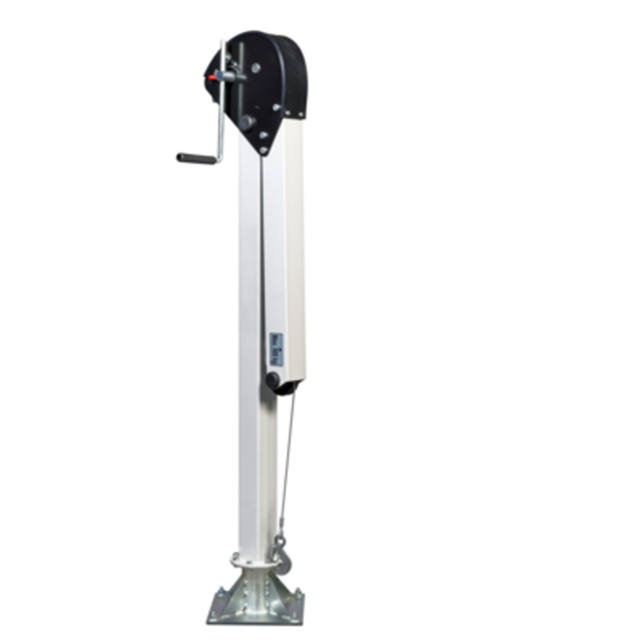

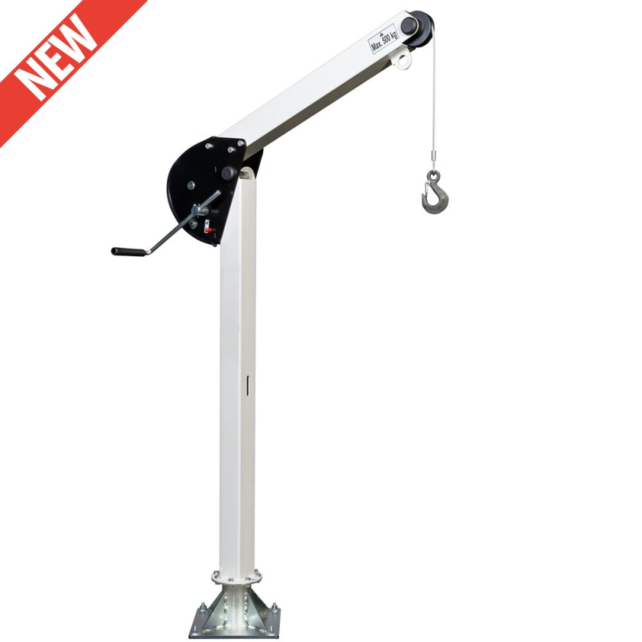

Portable Swivel Davit Up to 125 kg

Marking: According to standard, CE-marked
Temperature range: -20°C up to +40°C
Finish: Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M
Standard: EN 13157
Note: All models standard delivered with 5 mm wire rope, length 13 m.
Safety factor: 4:1)

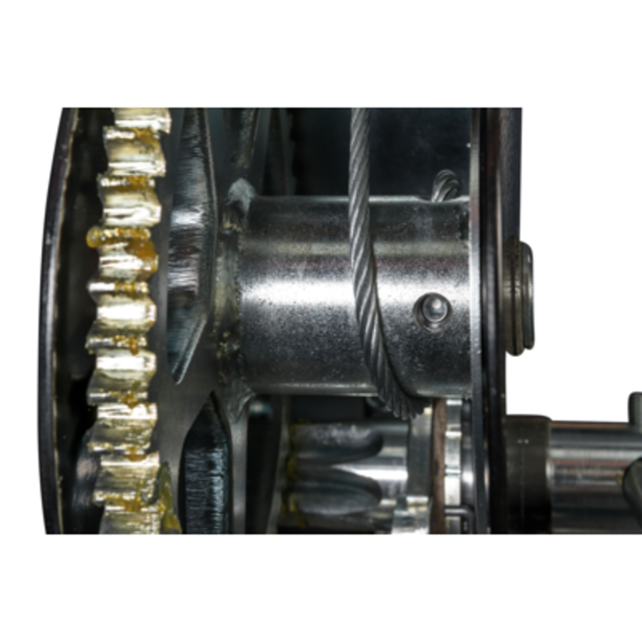

The winch consists of a drum winch with a gear transmission with a self-braking capacity. This self-braking capacity ensures a hold of the load at any required height during hoisting and lowering.

The crank is adjustable in length and removable.

Description :

• Cable diameter: 4 mm
• Min. breaking force of cable : 7.5 KN
• Max. Cable storage calculated per cable compartment : 18 m
• Hoisting height per crank rev. : 20 mm
• Lift/crank turn: 20 mm
• Hoisting load first layer: 125 Kg
• Rope Length: 18 m
• Force on the handle at full load: 10 Kg
• Hoisting load last layer: 268 Kg
• Weight: 30 Kg
• Weight floor-socket : 8,9 Kg
• Temperature range: -20°C up to +40°C
• Finish: Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M

Marking: According to standard, CE-marked
Standard: EN 13157
Safety factor: 4:1
