Product description

Personnel Grounding Tester for ESD Protected Areas – PGT120 – Wrist Strap & Footwear Testing

Description

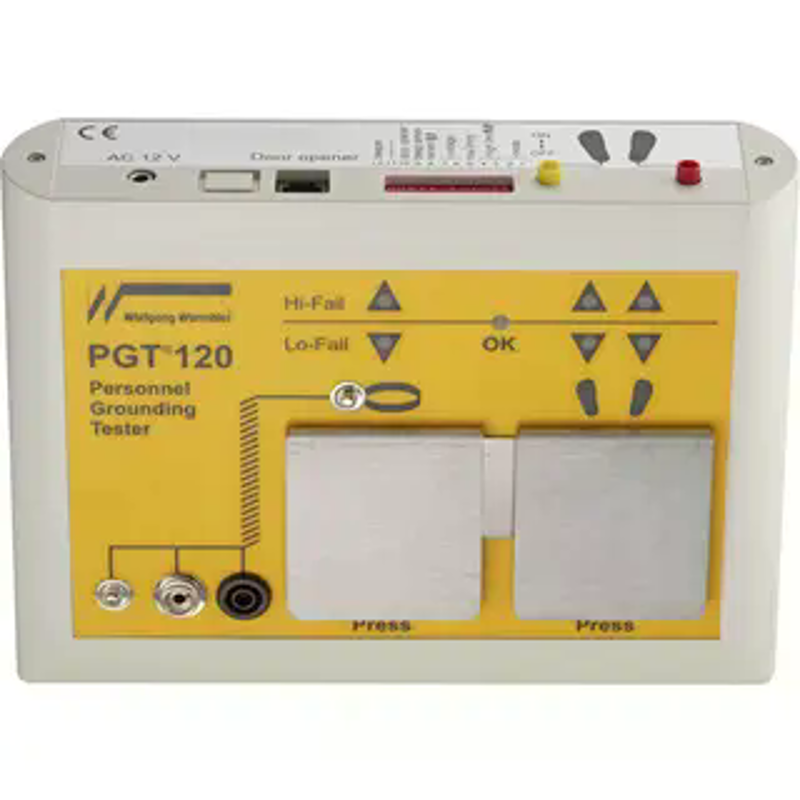

The Personnel Grounding Tester PGT120 is a wrist strap and footwear tester designed for access control to ESD protected areas (EPA). It verifies correct grounding connections using audible and visual signals and supports integration with a door opening system via a relay with a dry contact. The unit enables simultaneous wrist strap and footwear testing and can be configured for different test modes, including a hands-free operating mode when used together with a barrier gate.

Key Features

Wrist strap and footwear tester for ESD access control (EPA)
Audible and visual signals to indicate test results
Relay with a dry contact for connection to a door opening system
Adjustable door opening time: 1 s or 3 s
Simultaneous right and left shoe testing via separate measuring circuits
Hands-free footwear measurement possible in combination with a barrier gate (without pressing a contact electrode)
Separate measurement of left and right shoe
Lower limit disabling options for shoe testing and wrist strap testing
Beeper can be configured and disabled
Usable on a bench top or wall-mounted (wall mounting requires an additional wall mounting plate)
Test voltages support IEC 61340-5-1 standard test methods (with changeable test voltage)

Technical Specifications

Feature	Specification
Product Type	Personnel Grounding Tester for ESD protected areas (EPA)
Test Result Indication	Audible and visual signals
Connection to Door Opening System	Relay with dry contact
Door Opening Time	1 s and 3 s (adjustable)
Power Supply	Internal battery or external power supply unit
Wrist Strap Testing	Coil cord test (values within stated measuring range)
Footwear Testing (Metal Plate)	Test values provided for each shoe
Footwear Testing (In Series)	Test values provided for both shoes in series
Test Voltage (Without Load)	100 V/DC
Test Voltage Options	Changeable to 50 V or 30 V
Calibration Interval (Recommended)	2 years
Limited Warranty	1 year limited warranty
Dimensions (L × W × H)	150 × 200 × 65 mm
Supplied With	Footwear electrode; power supply (230V/12V); 9 V battery; manual and calibration certificate (German/English)

Test mode and limit values (as provided):

Wrist strap / coil cord: 750 kW ~ 35 MW (lower limit can be disabled)
Footwear worn on metal plate (each shoe): 100 kW ~ 20 / 35 / 70 / 100 MW (lower limit can be disabled)
Footwear in series (both shoes): 40 / 70 / 140 / 200 MW

Note: Values and lower-limit disabling are specified according to IEC 61340-5-1.

Available Variants

Configuration (DIP switch version): Version with DIP 12 switches (from serial number range as provided)
Test/logic options (via DIP switches):
- “OR” (wrist strap test or shoe testing)
- “only shoes”
- “only wrist strap testing”
- “AND” (wrist strap and shoe testing)
Additional DIP-selectable functions (as provided):
- Limit values
- Test voltages
- Standard test mode
- Hands-free mode

Applications

ESD protected areas (EPA) access control
Industrial cleanrooms and ESD-sensitive production lines
Facilities using barrier gates for controlled entry
Warehousing and logistics areas with ESD requirements
Electronics manufacturing and handling environments

Benefits

The PGT120 improves access control reliability for ESD protected areas by verifying wrist strap and footwear grounding before entry. The audible/visual feedback and door-opening relay integration help reduce risk of ESD incidents, while options like simultaneous shoe testing and hands-free measurement support efficient flow at entry points.
