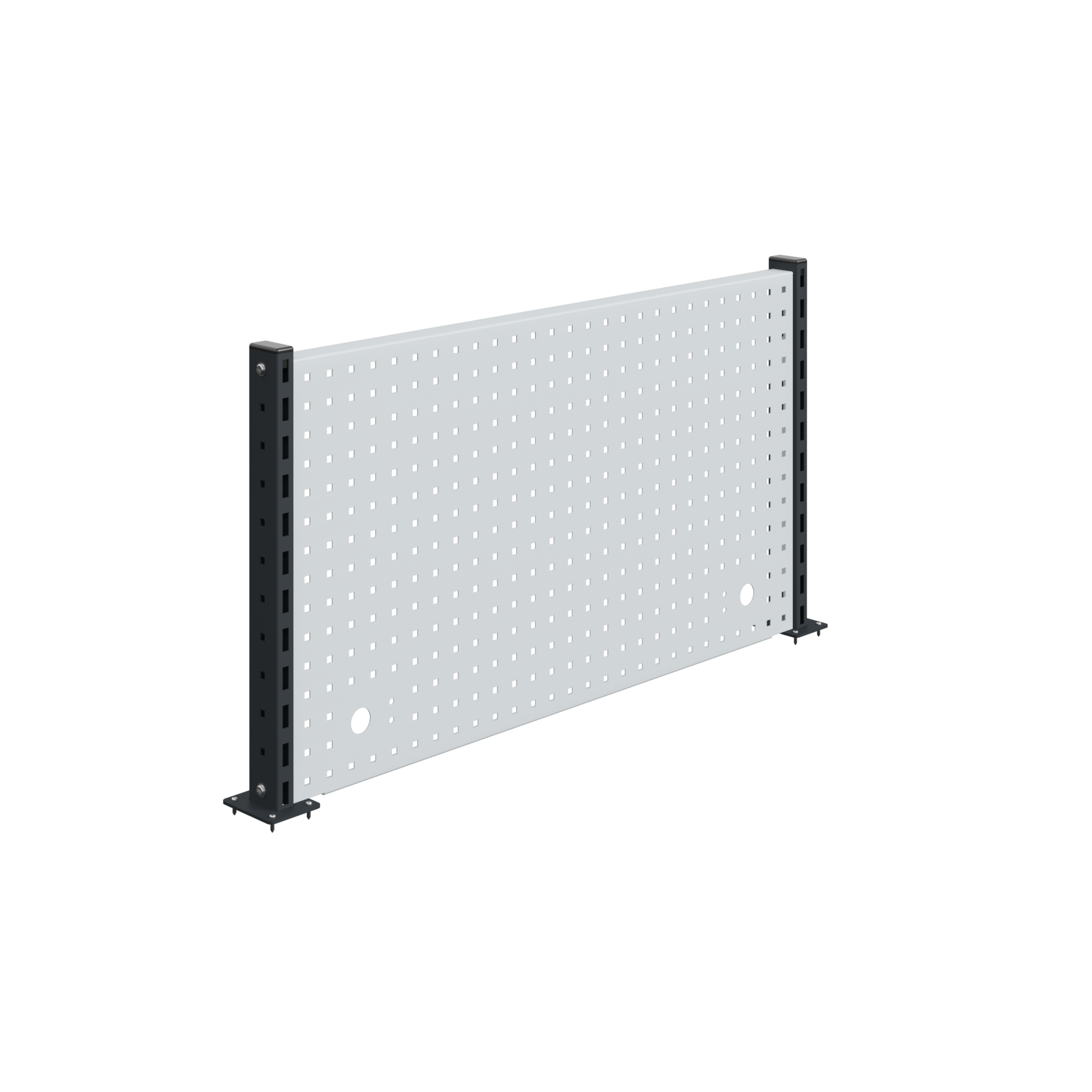

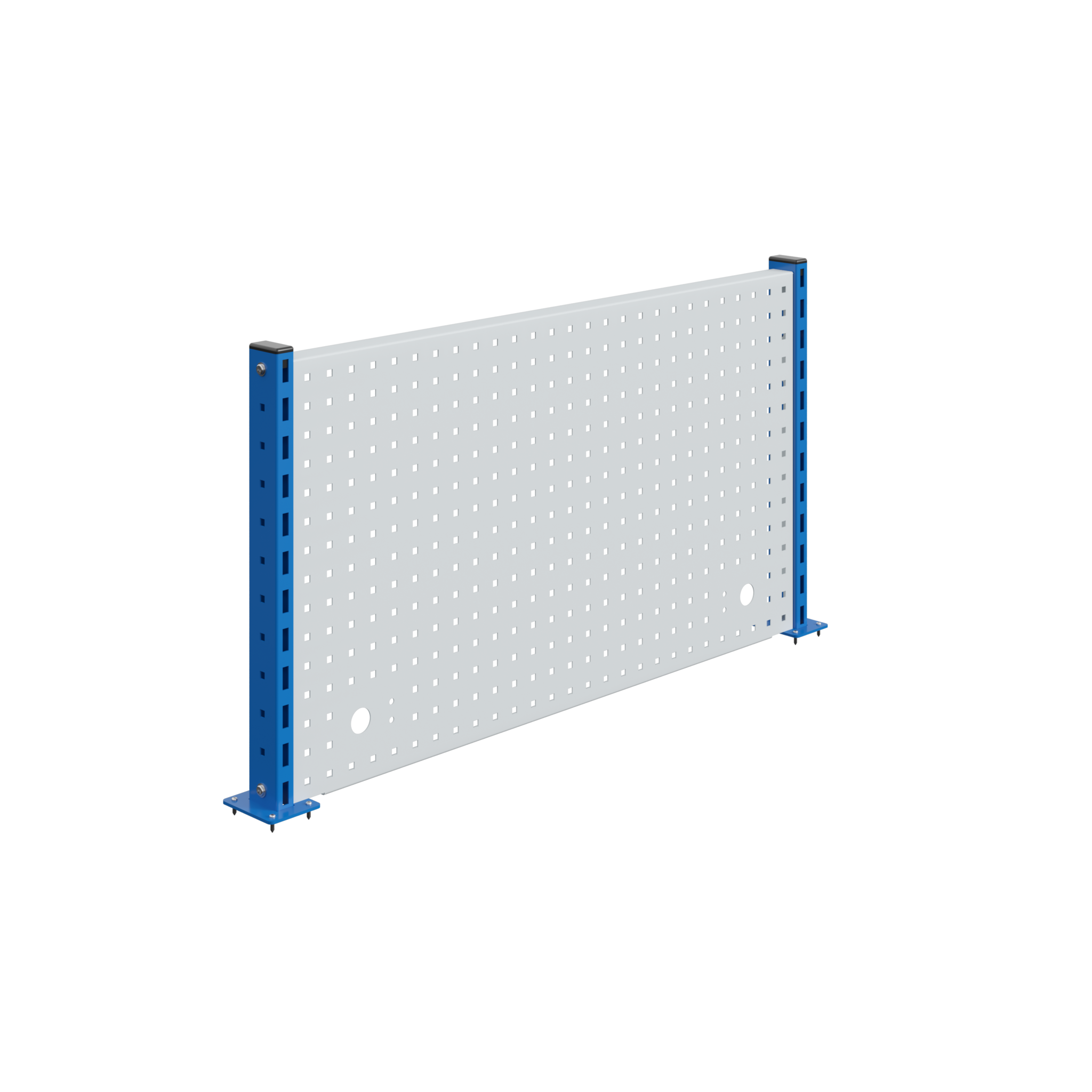

Perforated Back Panel with 2 Uprights

Perforated Back Panel with 2 Uprights – Tool Storage & Cable Management for Workbenches

Origin: France
Brand: Salesbridges

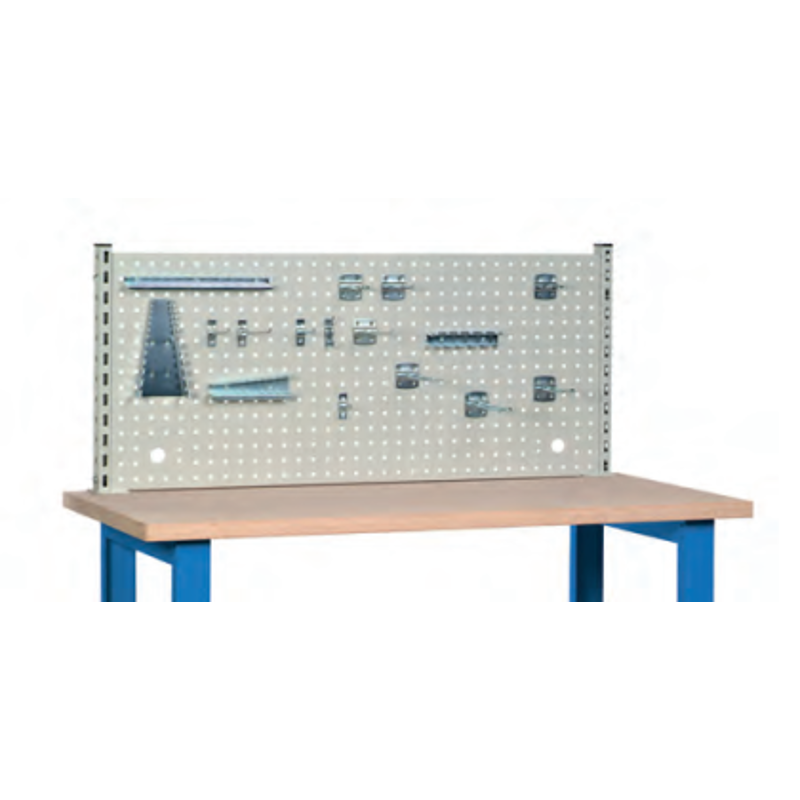

Upgrade your workbench with the Perforated Back Panel with 2 Uprights, designed to enhance organization, cable management, and workspace efficiency. Manufactured in France from high-quality materials, this system provides a robust, modular solution for vertical tool storage.

The two uprights are made from perforated steel tubes with multiple perforation patterns for flexible configuration. The included back panel is constructed from 15/10th folded sheet steel, ideal for hanging standard tool holders with 10x10mm square perforations at 38mm pitch. Finished with a structured epoxy powder coating, this durable assembly is built to last in demanding industrial environments.

Key Features:

• Uprights made of perforated steel tubes (60x30mm section)

• Front/rear: 30x10mm slots at 50mm pitch

• Sides: 10x10mm perforations at 50mm pitch

• Folded sheet steel back panel, 15/10th thick

• 10x10mm tool-hanging perforations (pitch: 38mm)

• Two integrated cable entries (35mm diameter)

• Epoxy powder paint finish (oven-cured at 180°C)

• Easy fixation to workbench top using plate and counter-plate

Technical Specifications:
