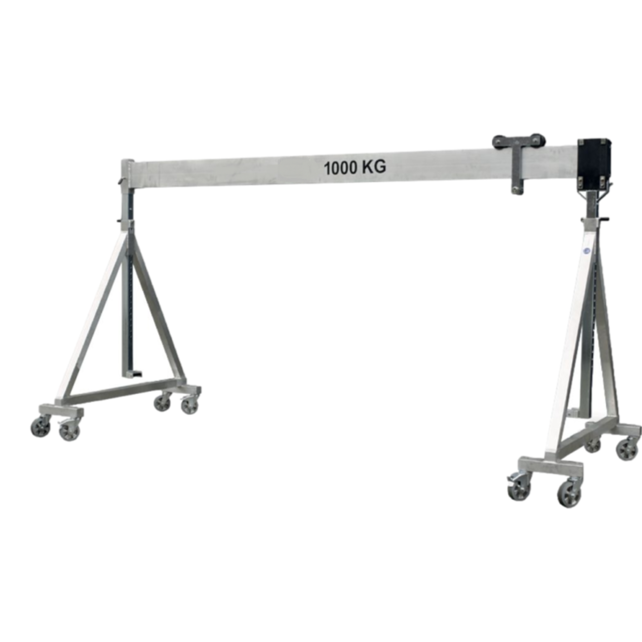

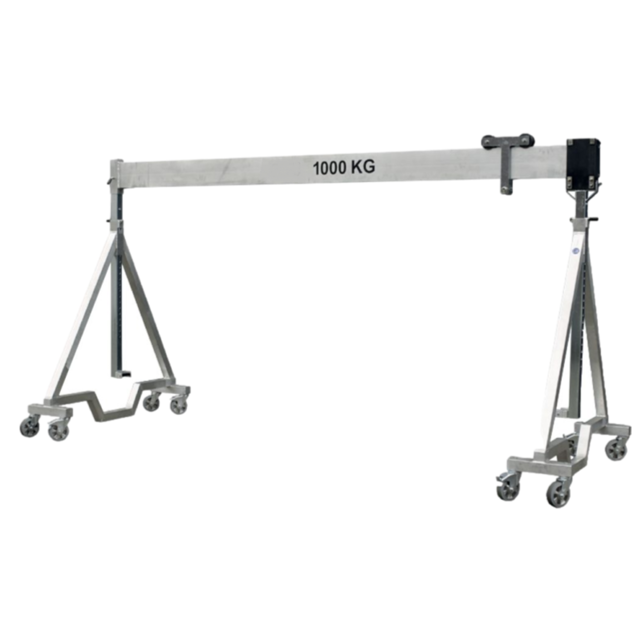

This mobile aluminum gantry crane is a lightweight yet strong lifting solution for temporary and flexible lifting points in workshops, maintenance areas, and industrial sites. With a 1 ton lifting capacity, fast assembly, adjustable height, and easy transport design, it is ideal for tool changing, repair work, and parts replacement.

Key Features

• 1 ton WLL mobile gantry crane for flexible lifting applications
• 5.0 meter main beam length for wide lifting coverage
• Quick assembly and disassembly in just a few minutes
• Foldable and 3-part dismountable structure for easy transport
• Trolley included, with hoist excluded

Technical Specifications

Construction & Details

• Material quality
  Manufactured entirely from aluminum and plastic for very low self-weight while maintaining strength and reliability for industrial lifting tasks.

• Design features
  The crane has a 3-part dismountable design with 2 columns and 1 support beam. The columns are foldable for easier transport and storage. Span adjustment is possible through movable columns.

• Resistance (heat, chemicals, etc.)
  The aluminum construction offers corrosion-resistant performance and is suitable for industrial indoor use where lightweight lifting equipment is required.

• Safety or industrial features
  The crane is CE-marked and manufactured according to EN 15011, EN 12100, and EN 13157 standards. It can be moved with load and installed even in low spaces thanks to its adjustable height.

Standard Delivery

• 1 x mobile aluminum gantry crane structure
• 1 x trolley included
• Supplied for fast assembly and disassembly; hoist not included

Applications

• Temporary lifting points in workshops and maintenance areas
• Tool changing on machines
• Repair and servicing work
• Replacement of parts, pumps, and machinery

Advantages

• Lightweight aluminum construction for easy handling and transport
• Fast setup and dismantling saves time on site
• Adjustable height allows use in different working environments
• Mobile under load for improved flexibility and productivity

Optional / Variants

• Sizes
  Available models:

  • SBPKAVK3M – Height 1.5–2 m, Width 1.25 m, Beam 3 m, Weight 127 kg
  • SBPKAVK4M – Height 1.5–2 m, Width 1.25 m, Beam 4 m, Weight 136 kg
  • SBPKAVM3M – Height 2–3 m, Width 1.7 m, Beam 3 m, Weight 149 kg
  • SBPKAVM4M – Height 2–3 m, Width 1.7 m, Beam 4 m, Weight 158 kg
  • SBPKAVG3M – Height 2.25–3.5 m, Width 2 m, Beam 3 m, Weight 159 kg
  • SBPKAVM5M – Height 2–3 m, Width 1.7 m, Beam 5 m, Weight 168 kg
  • SBPKAVG4M – Height 2.25–3.5 m, Width 2 m, Beam 4 m, Weight 168 kg
  • SBPKAVG5M – Height 2.25–3 m, Width 2 m, Beam 5 m, Weight 178 kg

• Colors
  Natural aluminum finish

• Additional accessories
  Hoist to be supplied separately
