Winch Stackers – M100 / M200 / PM120 Manual Lifters
Manual winch stackers M100, M200 & PM120 from Salesbridges. 100–200 kg capacity. Fork and platform models. Compact, safe, and made in Sweden.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Winch Stacker M100 / M200 / PM120 – Manual Lifting Stackers
Origin: Sweden
Brand: Salesbridges
The Salesbridges M100, M200, and PM120 Winch Stackers are compact and efficient manual lifting solutions, ideal for handling light to medium loads in tight workspaces. Operated via a robust manual hand winch, these stackers provide precise, stable lifting for boxes, crates, components, and pallets.
The M100 and M200 are platform-equipped models suited for general warehouse tasks, while the PM120 is fork-based and perfect for handling half-size pallets. All models are easy to maneuver, feature a built-in safety brake system, and are compatible with a wide range of optional roll and box holders.
Key Features:
-
Manual Winch System – Controlled lift/lower with steel wire drive
-
Load Capacity: 100–200 kg depending on model
-
Compact & Lightweight Design – Easily fits in tight areas
-
Stable Lifting – Safe handling with integrated brake system
-
Optional Attachments – Box holders, roll holders, and shafts available
-
PM120 Fork Stacker – Adjustable fork width for pallet use
Technical Specifications
| Model | Type | Capacity (kg) | Lift Height (mm) | Platform (mm) | Forks (mm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|

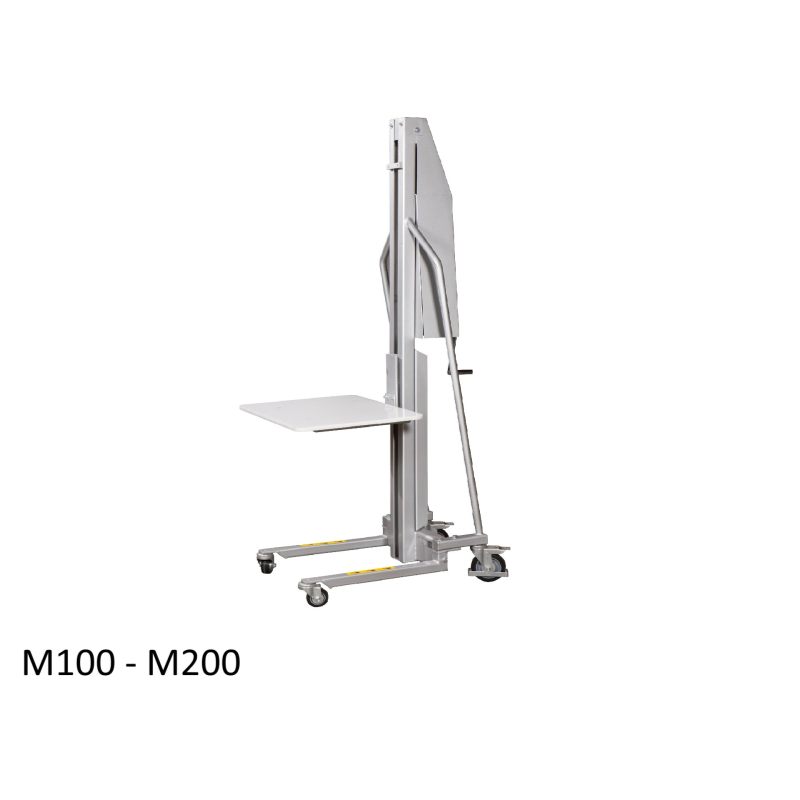

| M100 | Platform Stacker | 100 | 130–1500 | 480 × 600 | 400 × 330 × 40 | 840 × 600 × 1830 | 48 |
| M200 | Platform Stacker | 200 | 130–1500 | 480 × 600 | 400 × 330 × 40 | 840 × 600 × 1920 | 70 |

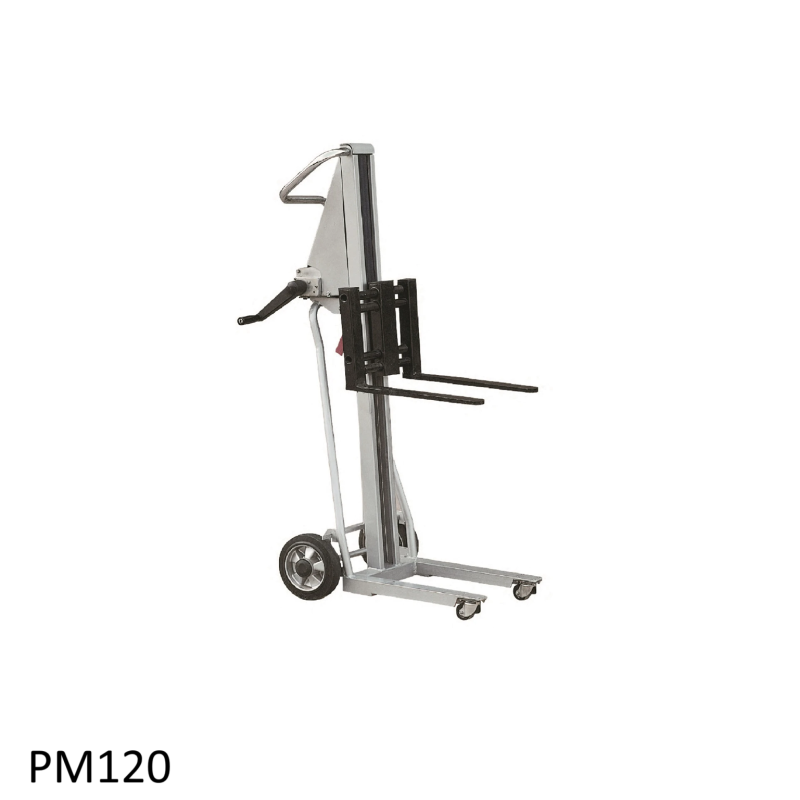

| PM120 | Fork Stacker | 120 | 95–1050 | – | 400 × 345–485 × 14 | 720 × 485 × 1360 | 36 |
Optional Accessories
| Accessory | Description |
|---|---|
| M-SS | Shaft Ø47 mm × 600 mm |
| M-DS | Shaft Ø47 mm × 450 mm (200 mm spacing) |
| M-RR | Roll holder Ø74–80 mm inner / Ø500 mm outer / 250 mm wide |
| M-VB | Box holder 400 × 400 × 80 mm |
| Brand | Salesbridges |
| Article code | SBM100 |
| SKU | SBM100 |
| EAN | 9501868769593 |
