LIFTING BEAMS SBTM

Create your own review

Price on request

According to EN 13155. Almost any type of customization is possible on request. Made in The Netherlands

In stock

Quantity

- +

Price on request

Add to wishlist

Excellent quality
Large product range
Smart sollutions
More information? Contact us about this product
Add to comparison list

Product description

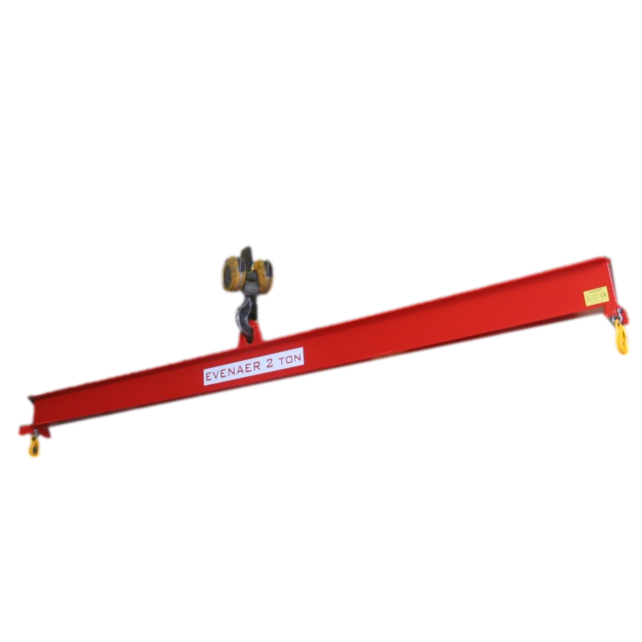

Fixed lifting beam

Fixed lifting beam, the load hooks are not adjustable.
Own manufacturer of lifting beams for guaranteed quality.
The closures and swivel hooks are not included.
Almost any type of customization is possible on request.
According to EN 13155.

Discover our high-quality lifting beams of our own manufacture, designed for optimal stability with fixed, non-adjustable eyes. A lifting beam is the ideal tool to lift and move large, heavy or clumsy objects with maximum precision. Customization is possible to meet specific needs, please feel free to contact us.

Each lifting beam is manufactured according to the strict standards of EN 13155, guaranteeing the safety of your loads. Please note, this product is supplied without swivel hooks.

Disclaimer: The actual color of our new products is yellow.

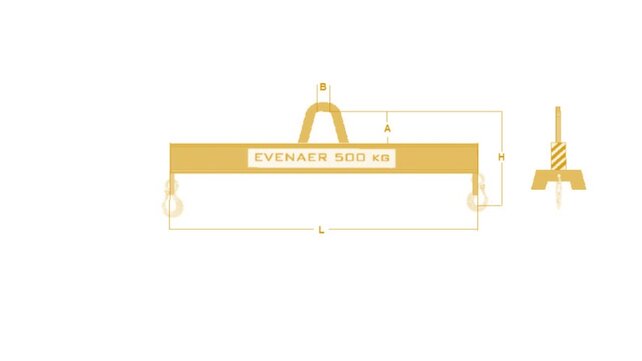

					Height H (mm) for each length L (mm)
Fashion model	Workload (tonnes)	Weight (kg)	A (mm)	W (mm)	1000	2000	3000	4000	5000	6000	7000	8000	9000	10000
SBTMHJVA1	1	13-589	100	55	365	405	445	470	490	540	575	575	605	635
SBTMHJVA2	2	17-1075	125	60	416	456	501	571	571	606	636	666	706	651
SBTMHJVA3	3	26-1292	180	100	526	566	631	661	696	756	796	761	761	801
SBTMHJVA5	5	36-1459	180	100	594	654	704	739	799	839	804	844	894	894
