JXO Order Picker – 4.8m Working Height, 336 kg Capacity
Compact JXO Order Picker by Salesbridges. 4.8m working height, 336 kg load, electric lift platform, and built-in charger. Ideal for warehouse and retail.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

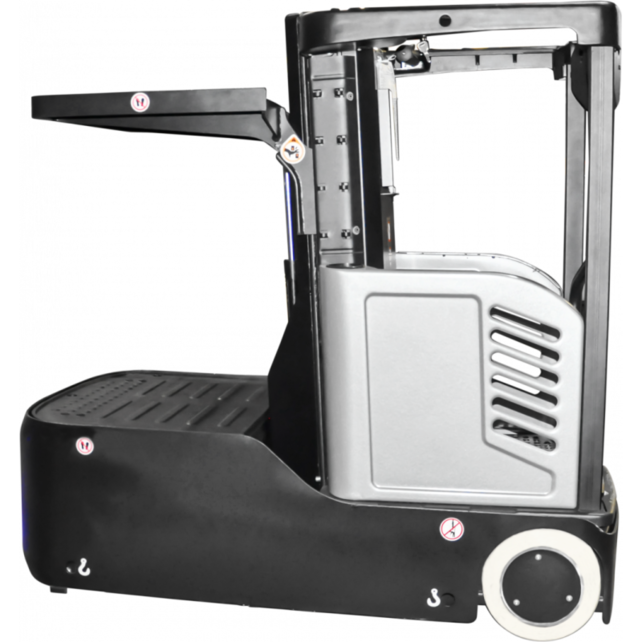

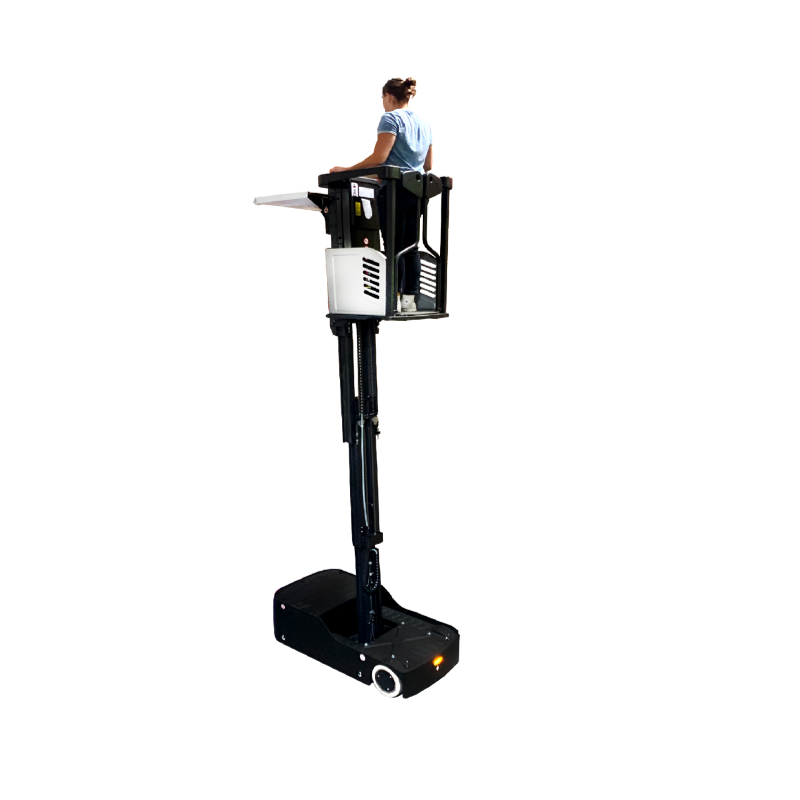

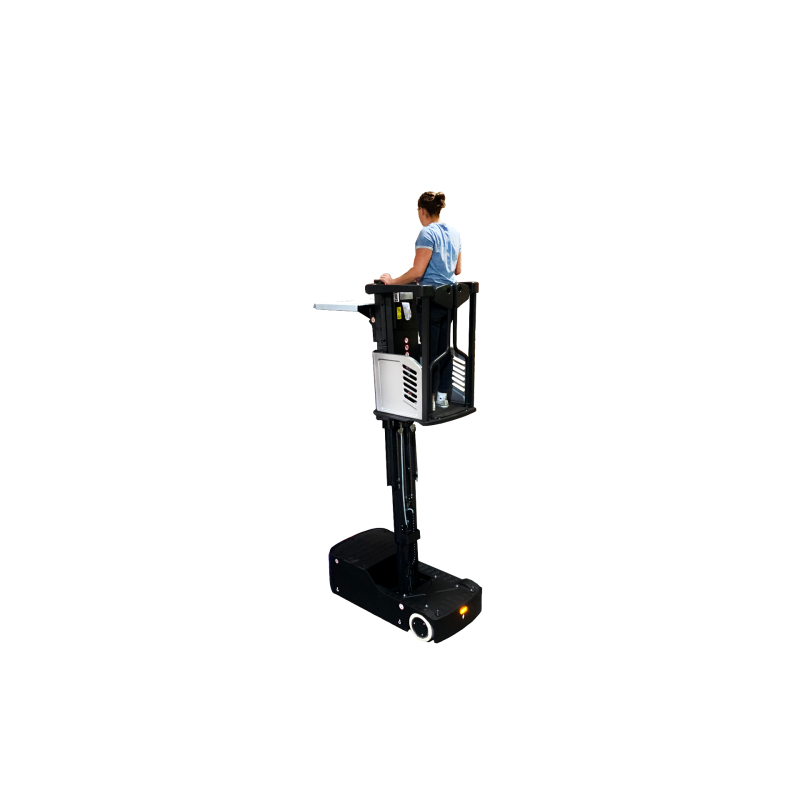

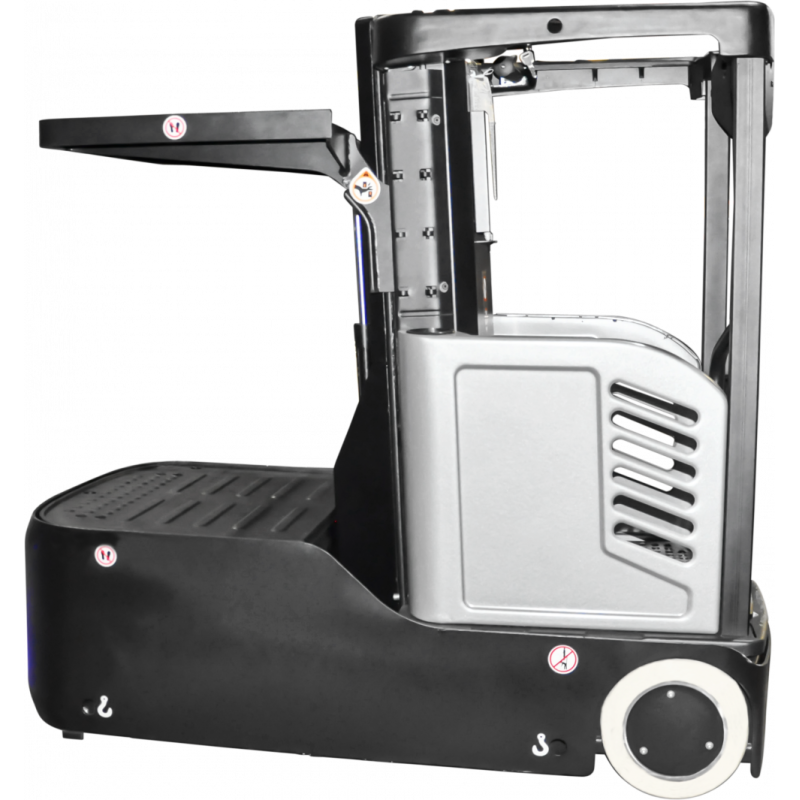

JXO Order Picker – 4.8m Working Height
Origin: Sweden
Brand: Salesbridges
The JXO Order Picker by Salesbridges is a compact, high-performance electric order picking platform designed for safe, ergonomic work at heights up to 4.8 meters. Ideal for use in stores, warehouses, and maintenance operations, the JXO is only 750 mm wide, making it perfect for navigating narrow aisles and tight corridors.
Equipped with a 336 kg capacity, electrically adjustable loading area, and a built-in charger, the JXO enhances operator efficiency and safety. It also features a BlueSpot safety light, maintenance-free batteries, and a ZAPI steering system for smooth handling and control.
Key Features:
-
Working Height: Up to 4.8 meters
-
Load Capacity: 336 kg
-
Platform Height: 3,000 mm
-
Ultra-Compact Width: Just 750 mm – fits tight spaces
-
Electric Lift for Load Surface – ergonomic working height
-
Driving Speed: Up to 6.5 km/h
-
Built-in 230V Charger
-
BlueSpot Safety Light for enhanced visibility
-
Maintenance-Free Battery System
-
Electromagnetic Brakes & ZAPI Steering
Technical Specifications
| Specification | Value |
|---|---|
| Model | JXO |
| Type | Rider stand-on |
| Load Capacity | 336 kg |
| Max Platform Height | 3,000 mm |
| Max Working Height | 4,800 mm |
| Dimensions (L×W×H) | 1440 × 750 × 1425 mm |
| Ground Clearance | 35 mm |
| Wheelbase | 1,095 mm |
| Turning Radius | 1,260 mm |
| Weight | 800 kg |
| Travel Speed (load/no load) | 6.0 – 6.5 km/h |
| Lifting Speed (load/no load) | 22 – 27 cm/s |
| Lowering Speed (load/no load) | 31 – 25 cm/s |
| Battery | 2x 12V / 120Ah |
| Battery Type | Maintenance-free |
| Drive Motor | DC 0.65 kW |
| Lift Motor | 2.2 kW |
| Steering System | ZAPI |
| Brake Type | Electromagnetic |
| Wheel Type | PU / Rubber |
| Brand | Salesbridges |
| Article code | SBJXO |
| SKU | SBJXO |
| EAN | 9503871934517 |
