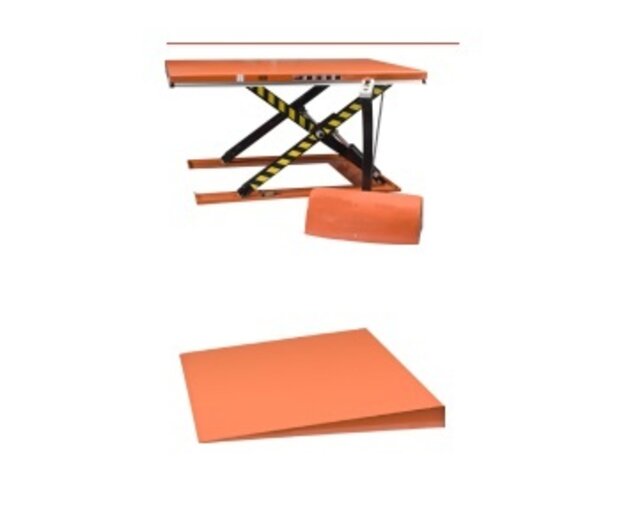

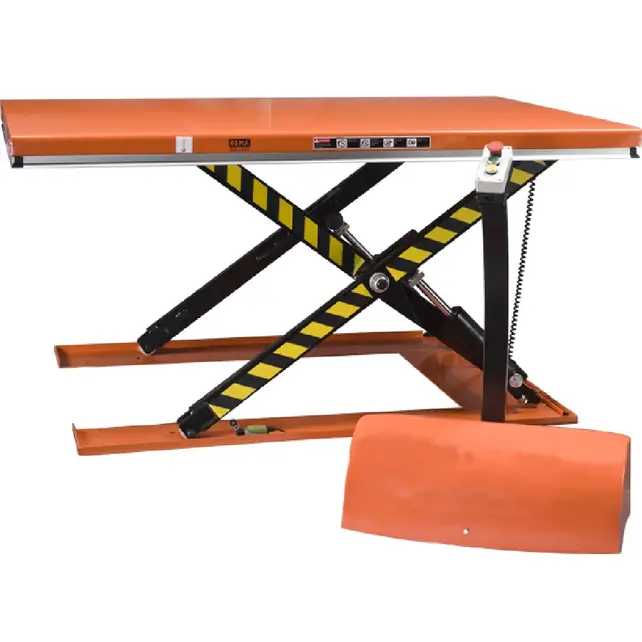

HSL low profile electric lifting table with ramp
HSL low profile lifting table with ramp available in 1 and 2 ton versions Made in The Netherlands, designed following EN12100-1/2, EN1570-1 norms
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
REMA HSL Low Profile Lifting Tables – 1 Ton and 2 Ton
Low Profile Design for Easy Ground-Level Loading
The REMA HSL low profile lifting tables are designed to lift heavy loads in the simplest possible way, without the need for time-consuming pit construction. Their extremely low platform height and practical access ramp make them ideal for use with pallet trucks and transport trolleys, allowing smooth loading and unloading in industrial and warehouse environments.
Safe and Durable Lifting Performance
Built for dependable daily operation, these stationary lifting tables feature a stable low bottom plate, solid steel scissors, and an aluminium safety frame. They are equipped with overload protection, a hose rupture safety valve, hard chromed cylinder and piston rod, and lifetime lubricated bearings. The external drive unit and included 24 V remote control with emergency stop ensure safe and convenient operation.
Key Features
- Available in 1 ton and 2 ton lifting capacities
- Low profile design eliminates the need for pit installation
- Includes practical ramp for pallet truck and trolley access
- Equipped with overload protection and hose rupture safety valve
- Supplied with 24 V remote control with emergency stop

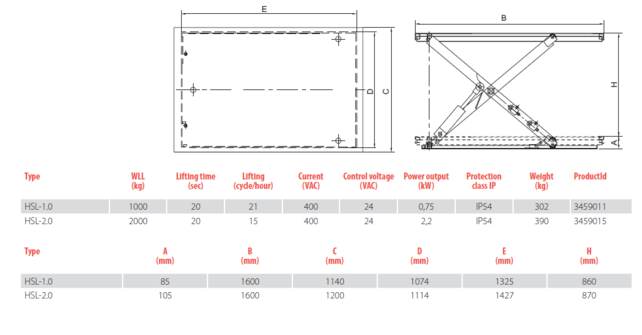

Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Low profile stationary lifting table |
| Lifting Capacity Options | 1 ton / 2 ton |
| Ramp Inclination Angle | 5° |
| Control Unit | 24 V remote unit with push buttons and emergency stop |
| Construction | Stable low bottom plate with solid steel scissors |
| Safety Frame | Aluminium safety frame |
| Maintenance Feature | Support inspection for safe maintenance |
| Hydraulic Safety | Overload protection and hose rupture safety valve |
| Cylinder and Piston Rod | Hard chromed |
| Bearings | Lifetime lubricated |
| Drive Unit | External drive unit |
| Standards | EN 12100-1/2, EN 1570-1 |
Standard Delivery
- Low profile lifting table
- 24 V remote unit with push buttons and emergency stop
- Removable lifting eyes for easy transport
- Ramp
Contact Us for a Quote or Consultation
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
