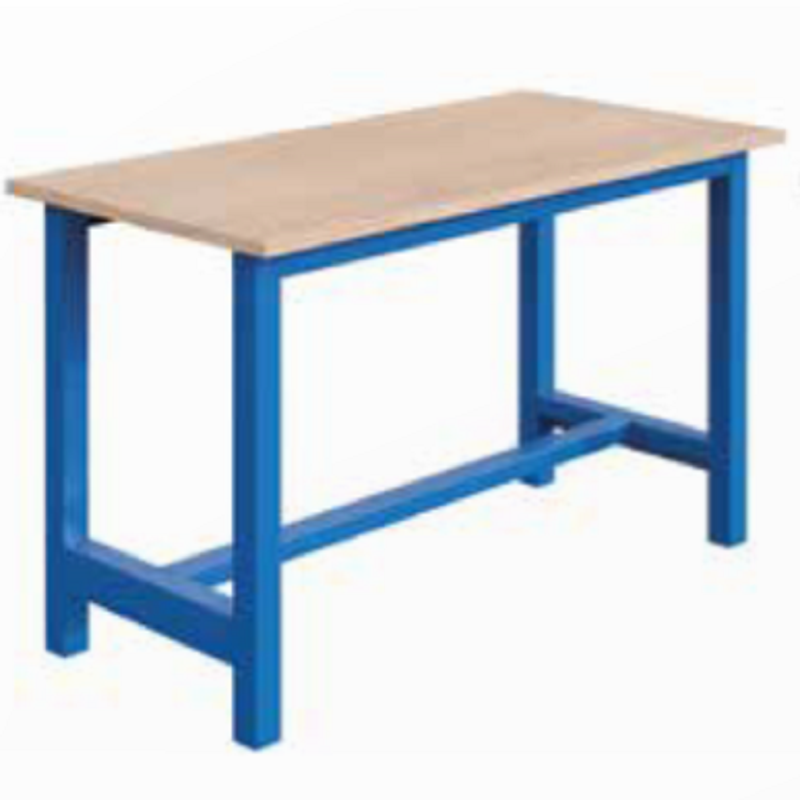

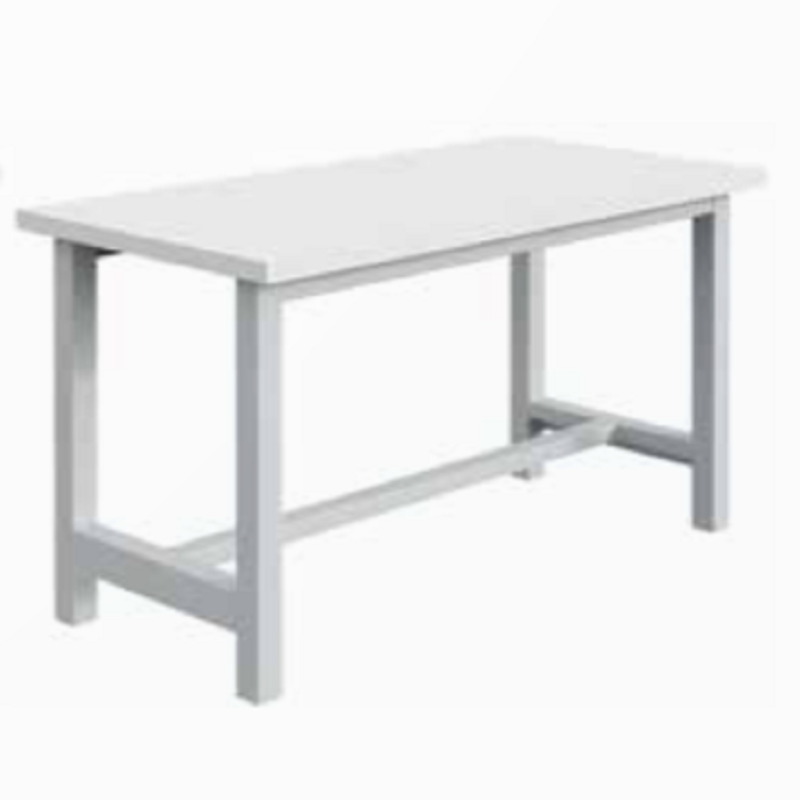

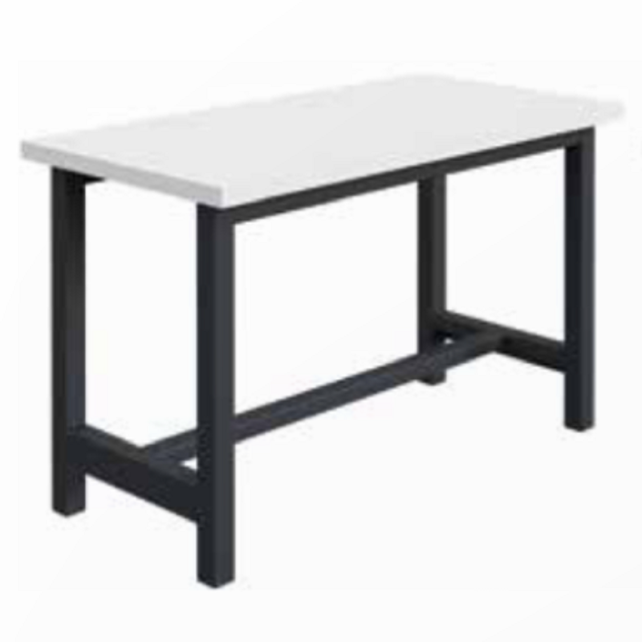

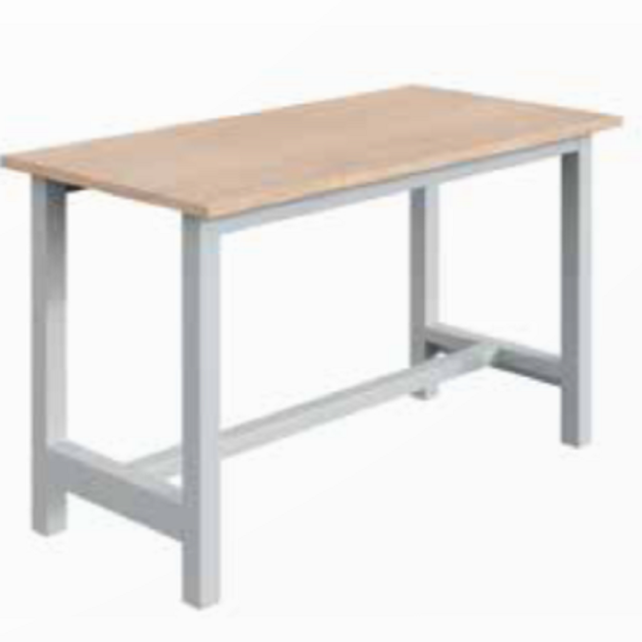

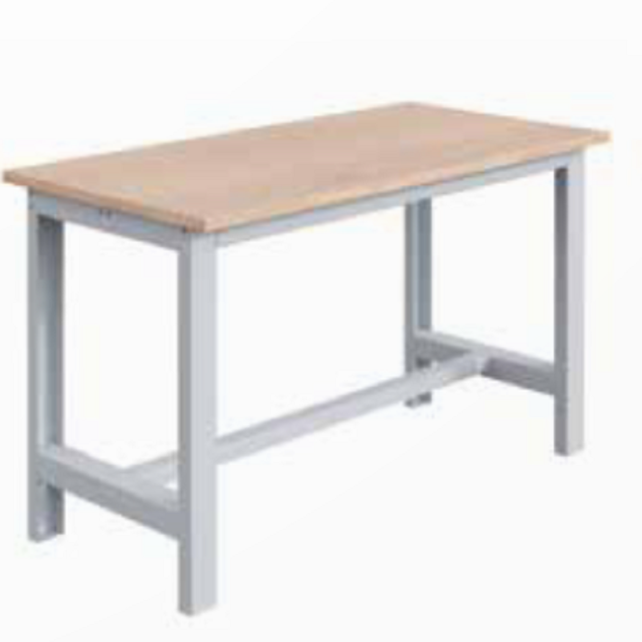

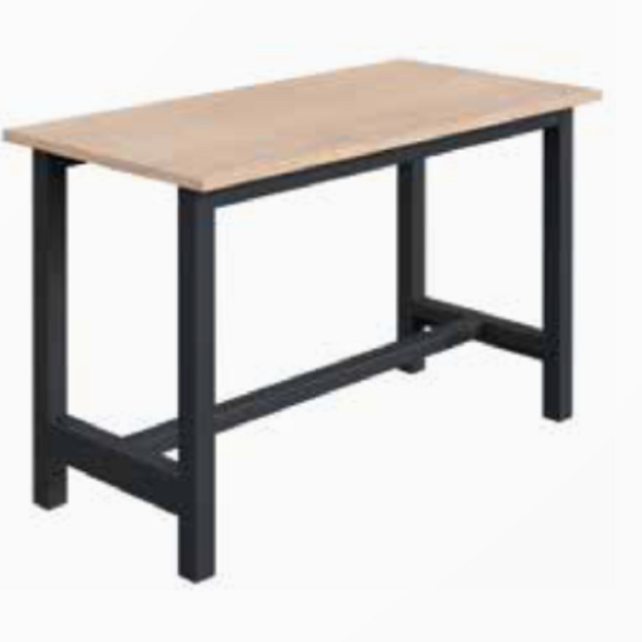

Ergonomic worktable CKS-model 750 kg

Workbench or worktable with steel frame and 750 kg capacity

Workshop furniture CKS model

Industrial Blue RAL5015

Anthracite grey RAL7016

Light grey RAL7035

High-quality ergonomic design. Choice in different tabeltops and frame colors.

Create a safe and healthy workplace in an instant. Prevent health complaints due to incorrect work posture and accidents. Ergonomic workplaces help to achieve more efficiency and productivity.

Quick delivery. From 48-hours delivery possible on marked products. A delivery time of approximately 1 week applies to all other products.

Workplaces with attention to high-quality ergonomics that meet the highest requirements. Modern design and particularly robust. Sustainably produced in France.

SI MODEL WORK TABLES AND WORK BENCHES

Steel frames finished with epoxy powder paint and polymerized in an oven at 180 ° C. Better protection of the user against injury, because no visible screws or bolts remain after installation.

Specifications and options

DIMENSIONS OF TABLES:

• Width: 75 cm

• Lengths: 120, 150, 180, 200 cm

• Height: 82.8 to 84 cm depending on the table top

COLOR OPTIONS

Industrial Blue RAL5015

Anthracite grey RAL7016

Light grey RAL7035

POSSIBLE TABLE TOPS:

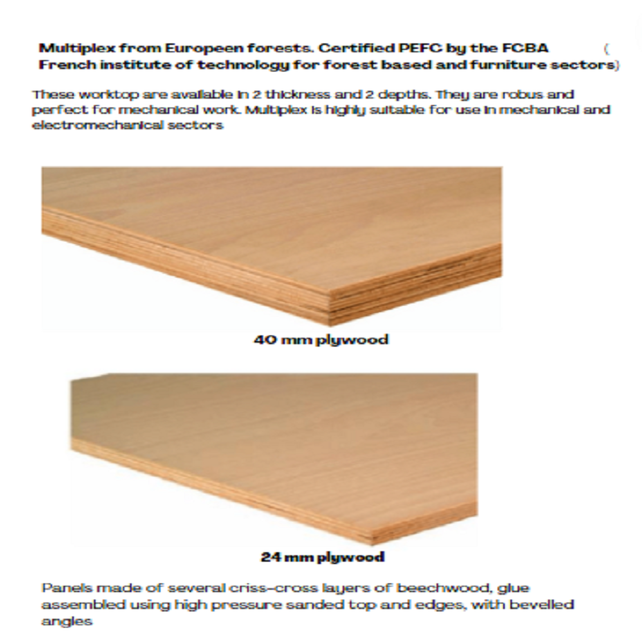

• MULTIPLEX in thickness 40 mm and 24 mm (RAL7035)

Common Uses: Heavy or Light Mechanics, Crafts, Education, Electromechanics, Packaging.

• RESITOP laminate 40 mm and 30 mm thick (RAL7035)

With high thermal resistance, heat resistant up to 180 ° C, fire resistant, scratch resistant

Common applications: plastic, mounting

• MELAMINE 38 mm, 28 mm and 19 mm thick

Hygienic, color and wear resistance.

Common applications: packaging, assembly, catering (indoor use)

PROPERTIES OF THE METAL STRUCTURE
CKS WORKBENCHES

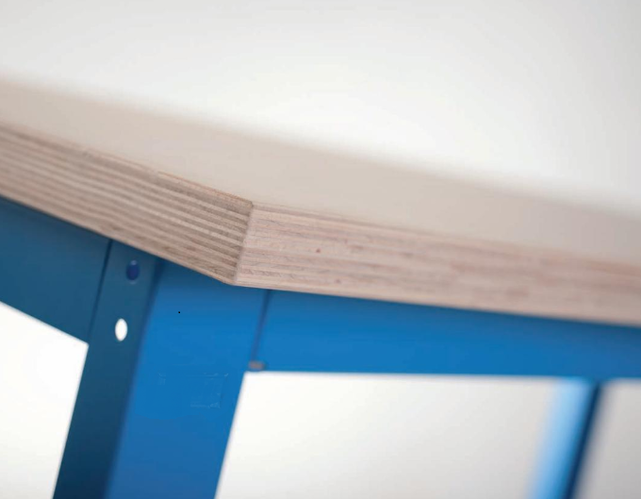

The frame is made of folded sheet steel, thickness 25/10th. The legs or ladders are made of welded tubes with a cross-section of 60x60mm and the
cross-members are made of folded sheet steel, thickness 25/10th, cross-section 80x60x40mm. The horizontal, longitudinal cross-members are made
in a folded U with a cross-section 40x60x40 mm. The frame is finished with epoxy powder paint, oven polymerised at 180°C.
The product is designed in such a way that no screws or bolts are visible after assembly of metal elements, thus providing greater protection of users
against possible injury.
The CKS workbench frame may receive 40 and 24mm beech plywood worktops, 40 and 30mm RESITOP worktops and 38 and 28mm
melamine worktops.
The worktop is fastened to the frame with a TH 6x25 hexagonal head tie rod and may be placed flush or centred depending on utilisation
requirements and constraints.
ASSOCIATION OF FRAME AND WORKTOP
The CKS workbench worktop may be fitted, in the upper section, with uprights designed to receive a variety of accessories (shelves, rails,
lighting support, perforated backboards, supports and various dispenser reels, etc.) as well as for placing all tools required by the user at
hand under optimum ergonomic conditions.
WORKBENCH EQUIPMENT
The worktops are certified PEFC.

Not all dimensions, table top options and frame colors are available online. However, a lot is possible on request.

Made in France
