Industrial Check Mirror-Acrylic-Rectangle
TUV- Certified Industrial Mirror Check Point 30x50cm, 40x60cm, 60x90cm. For the Observation of production lines. A distance of one meter between the product and the mirror is recommanded.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

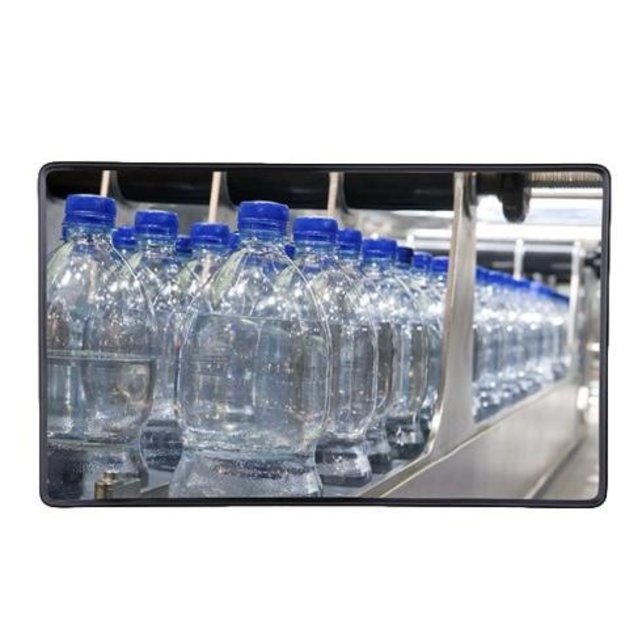

Industrial Check Mirror – Production Line Inspection Mirror (Acrylic, Black Frame)
Precision Monitoring for Production Lines
The Industrial Check Mirror is specifically developed for inspection and monitoring of production lines. Thanks to its special curvature, the mirror enlarges the viewed object, allowing operators to detect defects, check processes, and monitor product flow with greater accuracy.
Enhanced Visibility with Magnification Effect
Unlike standard safety mirrors, this mirror is designed for close-range inspection (1 meter), making it ideal for quality control and detailed observation in manufacturing environments.
Key Features
- Special curved mirror for magnified viewing
- Designed for production line inspection
- Clear, distortion-free acrylic surface
- Lightweight and highly impact-resistant
- Supplied with adjustable telescopic mounting arm
- TÜV & GS certified
Technical Specifications
| Mirror Size (cm) | Observation Distance | Width | Height | Depth | Net Weight |
|---|---|---|---|---|---|
| 30 × 50 | 1 m | 500 mm | 300 mm | 5 mm | 1.04 kg |
| 40 × 60 | 1 m | 600 mm | 400 mm | 5 mm | 1.31 kg |
| 60 × 90 | 1 m | 900 mm | 600 mm | 5 mm | 4.0 kg |
Materials & Construction
- Mirror Surface: Acrylic (70% more impact resistant than glass)
- Frame: Polyvinyl Chloride (PVC)
- Frame Color: Black
- Surface: UV-resistant, impact-resistant (DIN ISO 179-1)
- Back Panel: Reinforced for stability
Mounting & Installation
- Designed for wall mounting
- Supplied with telescopic arm (30–50 cm)
- 4 mounting holes for secure installation
- Delivered pre-assembled
Standard Delivery
- Industrial Check Mirror (selected size)
- Adjustable telescopic wall bracket
- Fixing materials included
Applications
- Production and assembly lines
- Quality control stations
- Manufacturing inspection points
- Industrial process monitoring
Advantages
- Enables detailed product inspection
- Improves quality control processes
- Reduces production errors
- Lightweight yet durable construction
- Easy installation and adjustment
Certification & Warranty
- TÜV & GS Certified
- 2-Year Guarantee
Origin
- Made in Denmark
Contact Us for a Quote or Consultation
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Enhance your production quality control with the Industrial Check Mirror from SALESBRIDGES. Request your quote today.
| Brand | SalesBridges |
| Article code | SBIMCM |
| SKU | SBIMCM |
| EAN | 9503451533277 |
