Access Safety Working Platform with 4 Crane Eyes for 4 Persons
Man Basket Max. 4 Persons Platform Load Capacity up to 570 kg (1,257 lb), For max. 4 persons and Tools. Width 1280 mm, length 2285 mm , Sheet metal paneling to a height of 1000 mm on all sides, guard rail all round.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Access Safety Working Platform 1280 x 2285 mm – for 4 Persons
Crane-Suspended Work Platform with Safety Roof
The Access Safety Working Platform is a robust and secure crane-lifted platform designed for working safely at height. Suitable for a maximum of 4 persons plus tools, this platform is built in accordance with official occupational safety regulations and is ideal for maintenance, installation, inspection, and construction work.
The platform features sheet metal side paneling, an all-round guard rail, a safety roof, and guide rollers on the wide side for safer positioning during lifting and use. Its heavy-duty construction and certified design make it a reliable solution for demanding industrial environments.
Key Features
- Suitable for up to 4 persons plus tools
- Designed for crane lifting
- Equipped with safety roof
- Sheet metal side paneling for added protection
- All-round guard rail

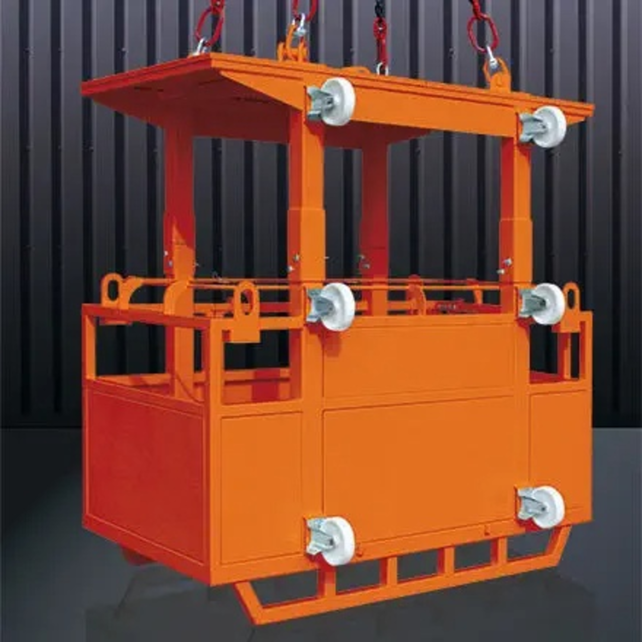

- Guide rollers on the wide side for safer handling
- Built in conformance with official occupational safety regulations
- TÜV Nord GS certified
- Made in Europe
Product Specifications
Main Model
| Feature | Specification |
|---|---|
| Reference | SBAWP10761 |
| Width (B1) | 1280 mm |
| Width with rollers (B) | 1485 mm |
| Length (L) | 2290 mm |
| Height (H) | 2475 mm |
| Weight | 850 kg |
| Load capacity | 570 kg |
| Max. total weight | 1420 kg |
| Minimum required lifting capacity | 2130 kg |
| Persons | Max. 4 persons + tools |
Alternative Model
| Feature | Specification |
|---|---|
| Reference | SBAWP10762 |
| Width (B1) | 1280 mm |
| Width with rollers (B) | 1480 mm |
| Length (L) | 1810 mm |
| Height (H) | 2350 mm |
| Weight | 560 kg |
| Load capacity | 570 kg |
| Max. total weight | 1130 kg |
| Minimum required lifting capacity | 1695 kg |
| Persons | Max. 4 persons + tools |
Construction Details
- Side cladding in sheet metal
- Protective railing around the full platform
- Safety roof for additional overhead protection
- 6 guide rollers on the wide side
- Crane lifting points integrated into the frame
Important Notes
- Chain slings are not included in the standard delivery
- Source data contains small variations:
- Crane eyes listed as 4 in one section and 5 in another
- Guard rail / cladding height listed as 1000 mm and 1100 mm
- Title length listed as 2285 mm, while table shows 2290 mm
These details should be confirmed before publication or ordering.
Product Benefits
- Safe working area for elevated tasks
- Suitable for multiple workers with tools
- Strong, enclosed construction for added security
- Easy crane handling with guide rollers
- Certified and compliant design for professional use
Applications
Suitable for:
- Industrial maintenance
- Construction work
- Installation projects
- Building inspections
- Repair and service tasks at height
Short Sales Version
The Access Safety Working Platform 1280 x 2290 mm is a heavy-duty crane-suspended work platform for up to 4 persons plus tools. It features sheet metal side cladding, an all-round guard rail, safety roof, and guide rollers, and is built in accordance with occupational safety regulations with TÜV Nord GS certification.
Contact Us for a Quote or Consultation
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
