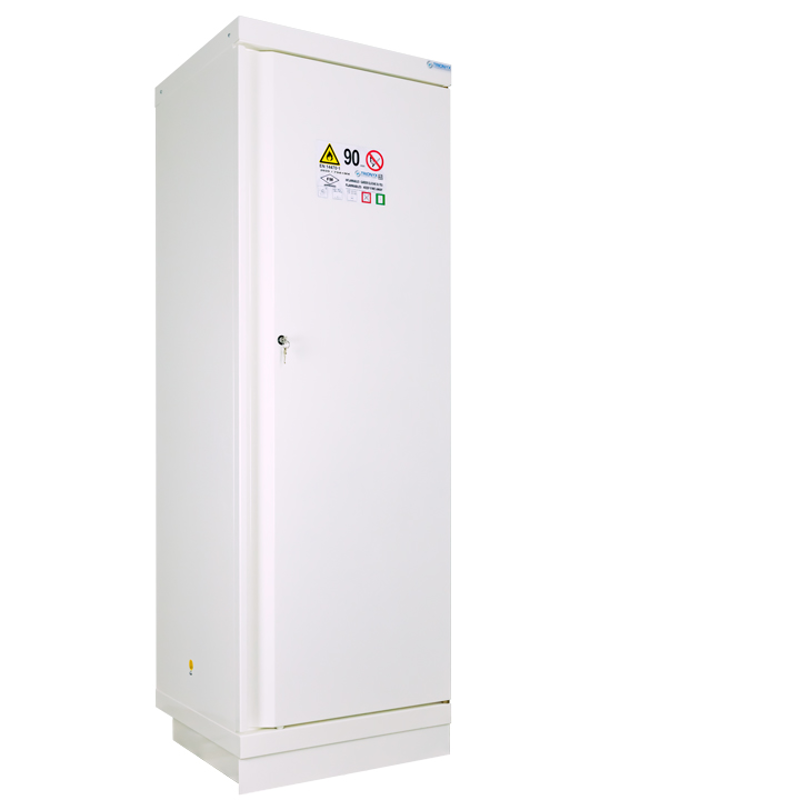

90-Minute Tall Safety Cabinet for Acids and Corrosives – 1950 × 635 × 620 mm

Tall Multi-Hazard Safety Cabinet | EN 14470-1 90-Minute Fire Protection

The Tall Multi-Hazard Safety Cabinet is engineered for the safe and compliant storage of hazardous chemicals in industrial, laboratory, and regulated environments. Designed according to EN 14470-1, this cabinet offers 90 minutes of fire resistance, providing critical protection for people, facilities, and stored substances during fire incidents.

Its tall, space-efficient design allows for vertical segregation of incompatible chemicals, making it ideal for storing flammable, corrosive, toxic, or multi-risk substances within a single enclosure while maintaining strict safety separation.

The cabinet features a double-wall steel construction with thermal insulation, integrated containment systems, and advanced fire-activated safety components. It is suitable for facilities that require high-capacity chemical storage without compromising floor space.

Key Features

• 90-minute fire resistance tested to ISO 834 fire curve

• Fully compliant with EN 14470-1 and EN 1363-1

• Tall cabinet design for maximum vertical storage efficiency

• Allows chemical segregation by hazard class

• Double-wall insulated steel construction

• Self-closing doors with thermo-regulated closing at 47°C

• Integrated containment shelves and sump

• Ventilation outlet ready for duct connection

• Secure key locking system

• Compatible with pallet truck handling

Safety Construction

Passive Safety

• External walls: 12/10 steel with epoxy powder coating (RAL 9010)

• Internal walls: white melamine (RAL 9010)

• Thermal insulation panels to reduce heat transfer

• Removable containment sump at the base

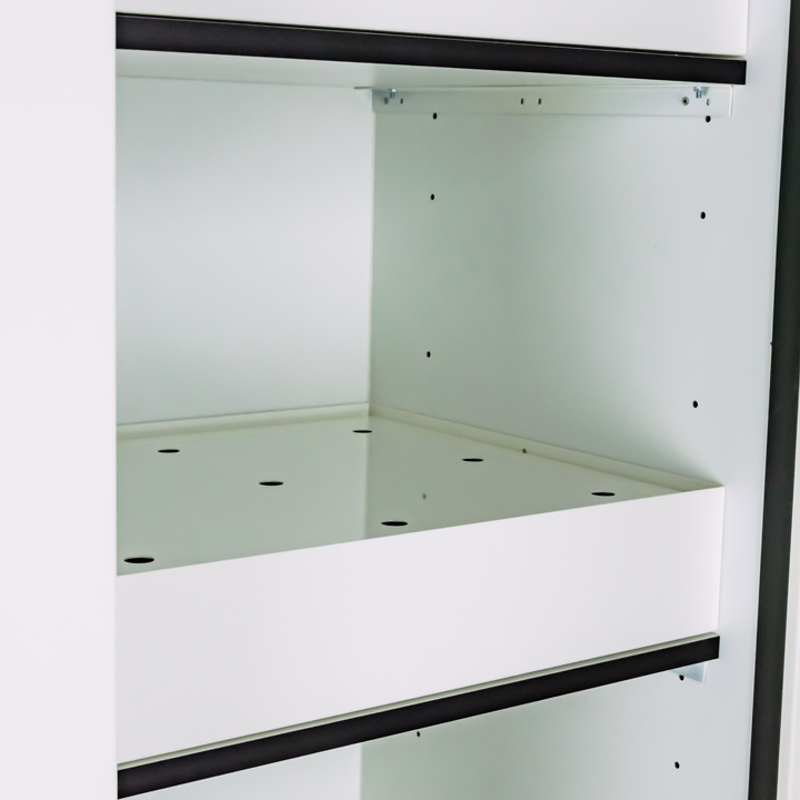

• Integrated containment shelves

• Standardized safety and hazard labeling

• Earthing connection point

Active Safety

• Ø100 mm ventilation outlet

• Fire-activated thermofusible ventilation ducts

• Thermo-expanding door seals

• Self-closing, lockable doors

• Automatic door closing system activated at 47°C

Technical Specifications

Available Internal Configurations

Model 794 can be configured with:

• 2, 3, or 4 internal compartments

• Different containment shelf layouts

• Optional perforated covers and pull-out trays

Configuration should be selected based on chemical compatibility and volume requirements.

Typical Applications

• Chemical and research laboratories

• Pharmaceutical production facilities

• Industrial manufacturing plants

• Maintenance and technical workshops

• Hazardous material storage rooms

• Quality control and testing areas

Delivery & Support

• Delivery available across the GCC region

• Professional assistance for cabinet selection and compliance

• Support for chemical compatibility and safety planning
