1 Doors Tall Multi-Hazard Safety Cabinet | 90-Minute 1950 × 635 × 620 mm
Type 90 tall safety cabinet for flammable liquids, 34-gallon (H 1950 × W 635 × D 620 mm) capacity. EN 14470-1 / FM 6050 certified, 90-minute fire resistance, ideal for labs and industrial storage.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

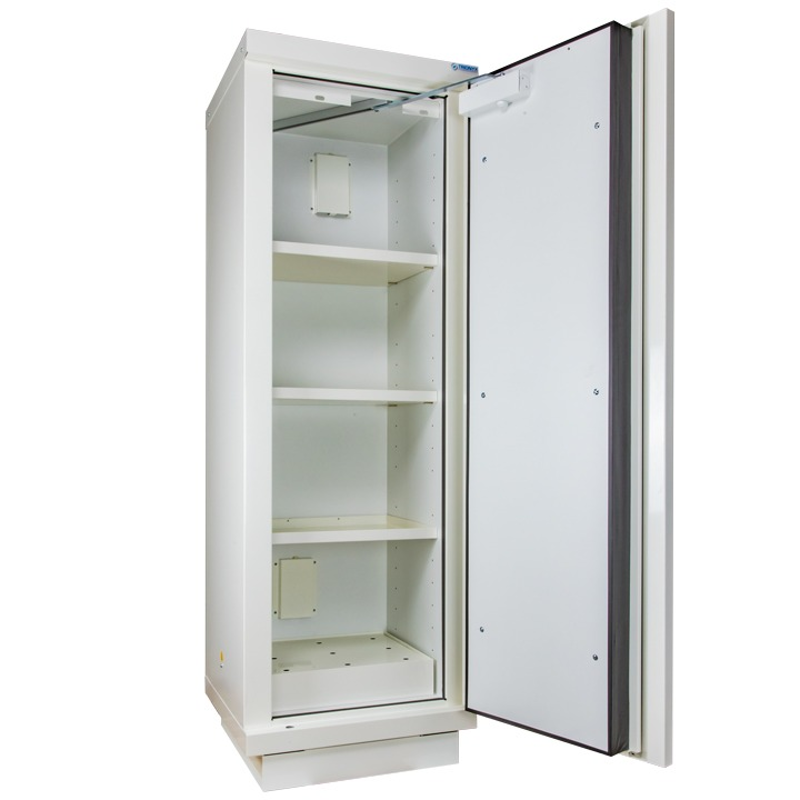

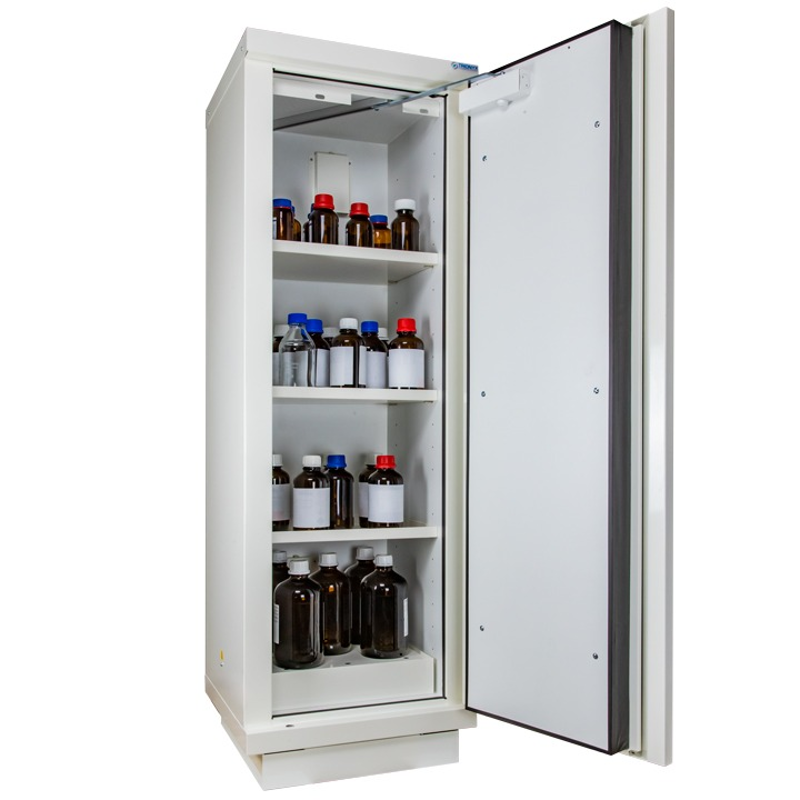

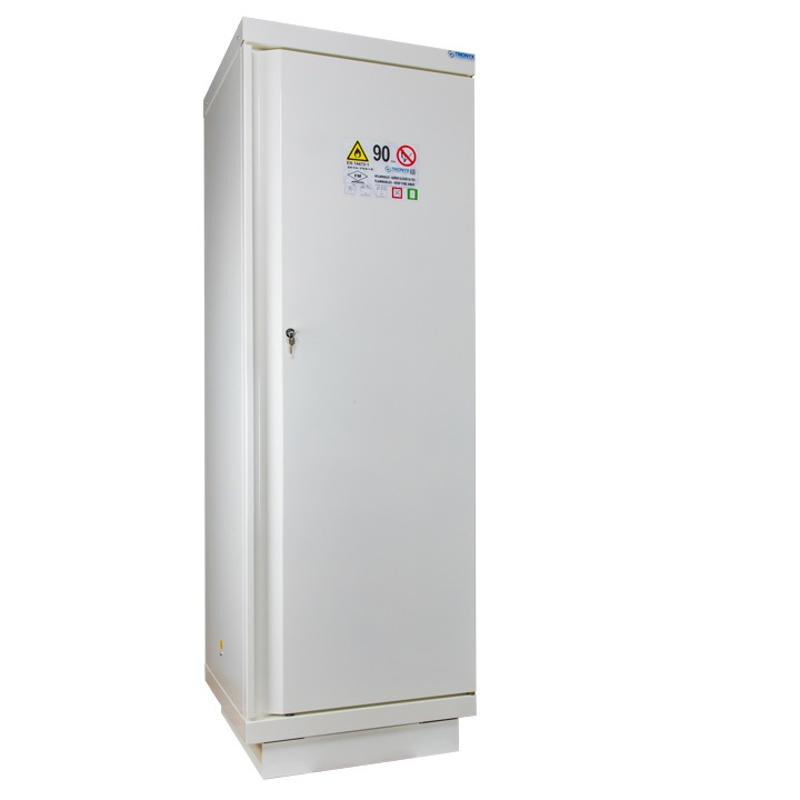

1 Doors Tall Multi-Hazard Safety Cabinet | 90-Minute Fire Rated
Store flammable liquids safely and compliantly with the SALEBRIDGES SB794E 90 minutes tall safety cabinet. Built for laboratories, industrial sites, workshops, and chemical stores, this cabinet is engineered for high fire protection performance and safe day-to-day operation, including a self-closing door, thermo-expanding seals, and rear ventilation connections.
Compliance & Certifications (Safety Standards)
- EN 14470-1 (flammable storage safety cabinets)
- EN 1363-1 (fire resistance testing)
- FM 6050 (tested and approved)
Key Advantages (Why choose SB794E)
- Designed for flammable liquids storage
- 90 minutes fire resistance — tested and approved to EN 14470-1 and EN 1363-1
- Tested 105 minutes (outside-to-inside) in accordance with EN 14470-1
- FM 6050 compliant performance for enhanced safety and acceptance on regulated sites
- Robust construction for demanding industrial environments
Safety & User Features
- Thermo-expanding door seals to limit heat and smoke transfer during fire exposure
- Self-closing swing door for safer daily operation
- Locking system for controlled access
- Earthing (grounding) fixation point
- Normalized safety labelling supplied with the cabinet
- Adjustable shelves (height-adjustable) to fit different container sizes

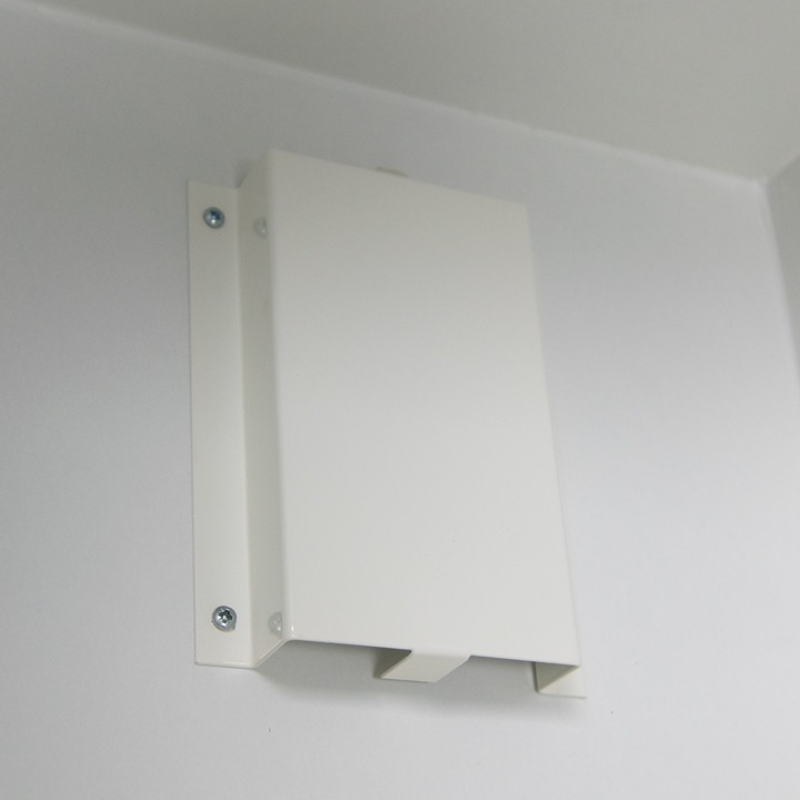

- Ventilation connection ports (rear inlet and outlet) for connection to extraction/filtration systems
Technical Specification (SB794E)
| Parameter | Specification |
|---|---|
| Product / Model | SB794E |
| Cabinet type | 1-door tall safety cabinet, Type 90 (flammables) |
| Compliance | EN 14470-1, EN 1363-1; tested/approved to FM 6050 |
| External dimensions (HxWxD) | 1950 × 635 × 620 mm |
| Internal dimensions (HxWxD) | 1620 × 490 × 410 mm |
| Storage capacity | 130 L |
| Door configuration | 1 swing door, right-hand hinges |
| Door closure | Self-closing |
| Cabinet material | 12/10th epoxy-painted steel structure |
| Door color | White (RAL 9010) |
| Ventilation | Inlet and outlet on the rear wall |
| Vent opening diameter | 100 mm |
| Containment sump | Integrated containment sump (included) |
| Shelves | 3 adjustable shelves |
| Load capacity | 30 kg (per shelf) |
| Shipping dimensions (HxWxD) | 2150 × 1200 × 800 mm |
| Weight | 287 kg |
| HS Code | 94032080 |
Recommended Accessories (Filtration / Ventilation)
- Ventilation box for connection to outside (Ref: CDV-A)
- Connecting kit (Ref: KRC)
Optional Add-ons

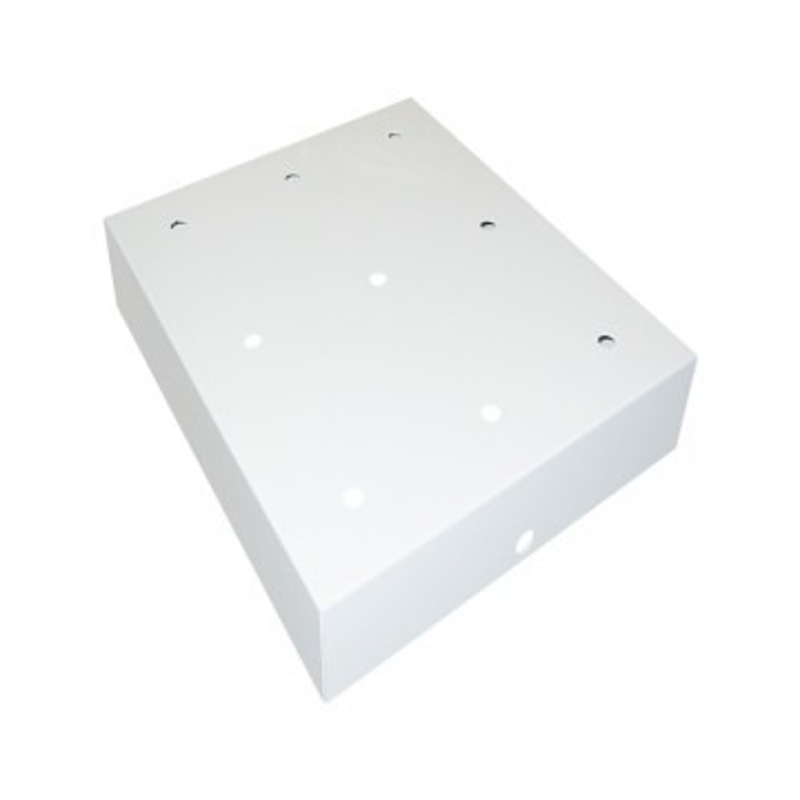

- Containment sump for 1-door cabinets
- Perforated cover plate for 1-door or multirisk cabinets
- Retention shelf for 1-door or multi-risk cabinets
- PVC containment sump for 1-door or multirisk cabinets
- PVC protection shelf for 1-door or multi-risk cabinets
- Sliding drawer for 1-door or multi-risk cabinets
